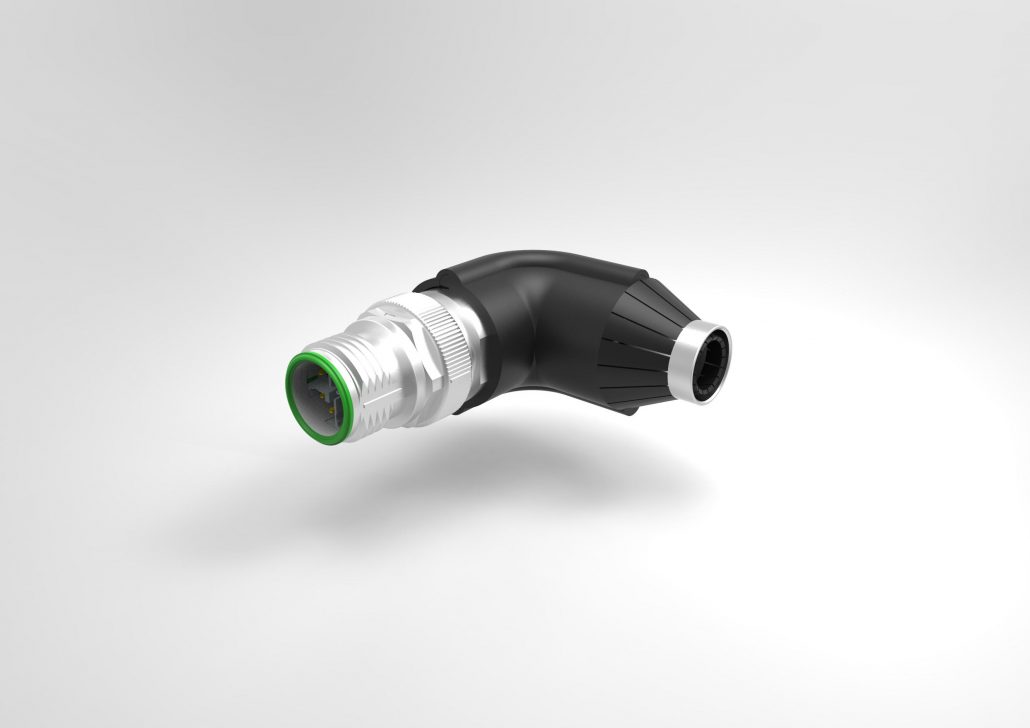

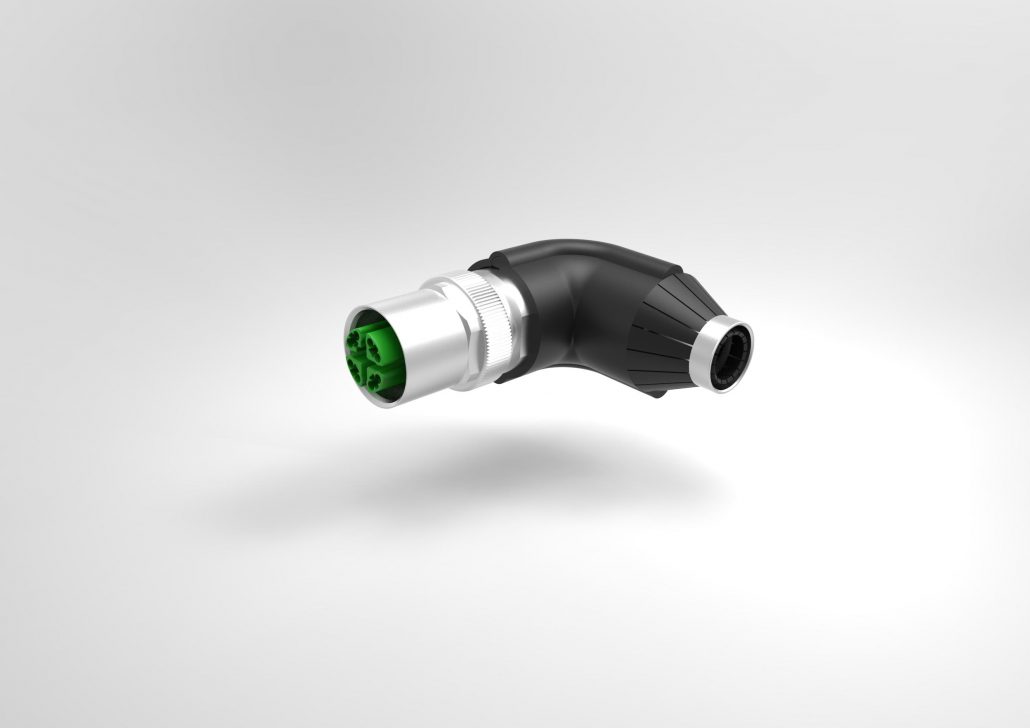

Right angle M12 X-code Crimp crimp flange/crimp sleeve

360° shielding and torsion-/vibration-proof

The 360° EMI/RFI M12 X-code cable connector crimp for Hi-Speed Ethernet up to 10 GBit/s with cable exit 90° and with up to 8 coding positions for 8 different exit options in  protection degree IP 67 is the adequate solution for difficult installation conditions with small built-in length. fullfills especially the fail-safe Ethernet connection and the secure data transmission in railway applications. This is achieved by a secure contact termination of the Ethernet signal wires due to turned crimp contacts and the safe cable shield contact due to a compact full metal housing with the 360° EMI/RFI crimp flange/crimp sleeve system for a vibration-resistant cable strain relief at the same time. The waterproof housing design ensures protection level IP 67 in screw-locked condition as well as high robustness in rough environment.

Technical features

– Very compact dimensions for constricted assembly conditions
– Flexible cable exit 90° with8 cable exit options( 8 x 45°)
– Simple selection of the position and lock against rotation
  of the cable outlet during  the assembly of the cable
– M12 with 360° EMI/RFI shielding achieved by
  fully shielded housing and special crimp flange system
– Insulators with X-coding for 10 Gbit Ethernet
– Pin and socket version with / without contacts
– Turned contact for secure secure signal contact
– Crimp contacts:signal: AWG 22-26
– Reliable quick and simple assembly by means of crimp snap-in contacts and
  pre-assembled housing with only a few parts
– Vibration and torsion-proof cable strain relief for rough environment achieved by
   hexagonal crimp of the crimp flange system
– Degree of protection: IP 67 (only screw-locked)
– Ergonomical grip shell in TPE
– Crimp tools as accessories available
