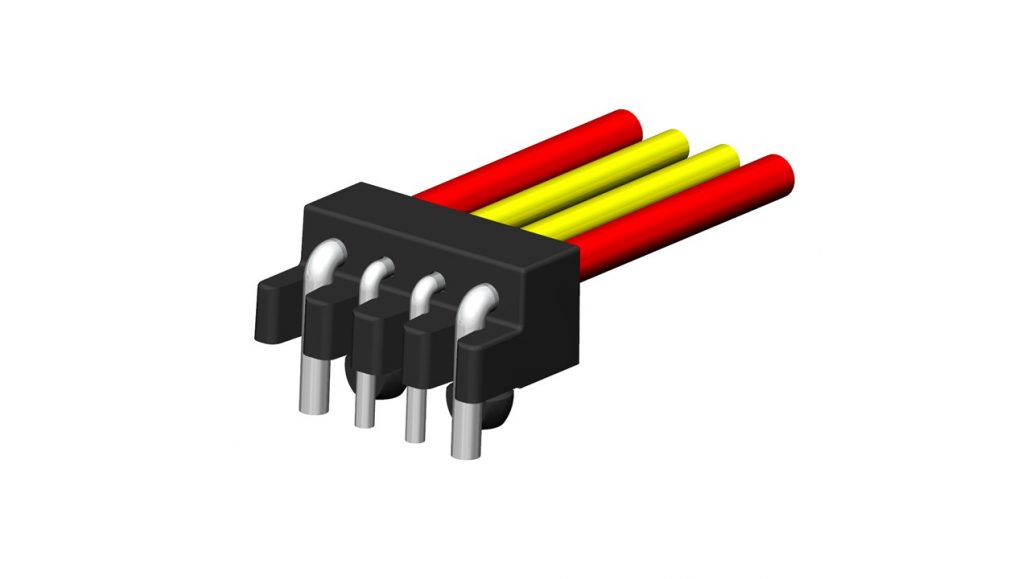

Mixed Wireclip

Efficient and space-saving Wire-to-Board solutions with fully-wired Wireclip cable manufacture on a minimal installation height.
Reliable connections of single strands and single cores of circular and external conductors in
different, customer-specific configurations and cable cross section have to be implemented.



[{ oxcontent ident=Video8I9gcZcvV18 }]







Technical Data



Technical specifications

  • Minimal installation height.
  • Minimal manual equipping and processing effort
  • Easy and fast installation on the circuit board due to integrated snapclip
  • Vibration-proof wire-to-board solution due to integrated snapclip
  • Failure-resistant, 100 % tested cable manufacture
  • Flexibility due to differen pitches, pole numbers and conductor cross-sections
  • different cable cross sections in one wireclip possible e.g. for power and signal applications
  • High temperature resistant Ul94-V0 thermoplast for SMT-Reflow soldering process
  • Approval for automobile industry



Dimensions



HC18224:





HCD18224:
