Beschreibung

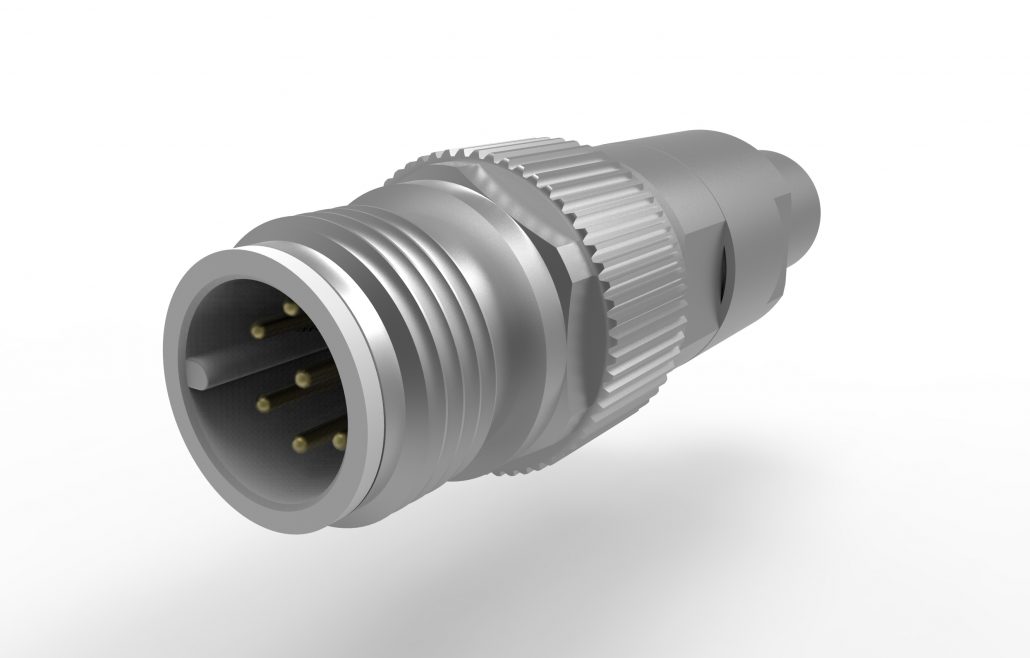

M12 A-8 Ethernet connector crimp flange
360° Shielding and vibration-/torsion-proof
Technical Data
|
Connector |
M12 acc. to IEC 61076-2-101, IP 67 (only screw-latched) |
|
Coding pin-number |
A, 8-pin |
|
Nominal voltage/ current |
30 V / 2 A |
|
Connection type stranded single wire |
Machined crimp snap-in contacts |
|
Temperature range |
–40° C to +85° C |
|
Shock and vibration proofness |
DIN EN 61373 category 1, class B |
|
Housing |
Nickel-plated |
|
Insulator +contact retainer |
Thermoplast, HL3 acc. to R22/R23 EN 45545-2 |
|
Connection |
Cu-alloy, surface Ni/Au, ≥ 200 mating cycles |
