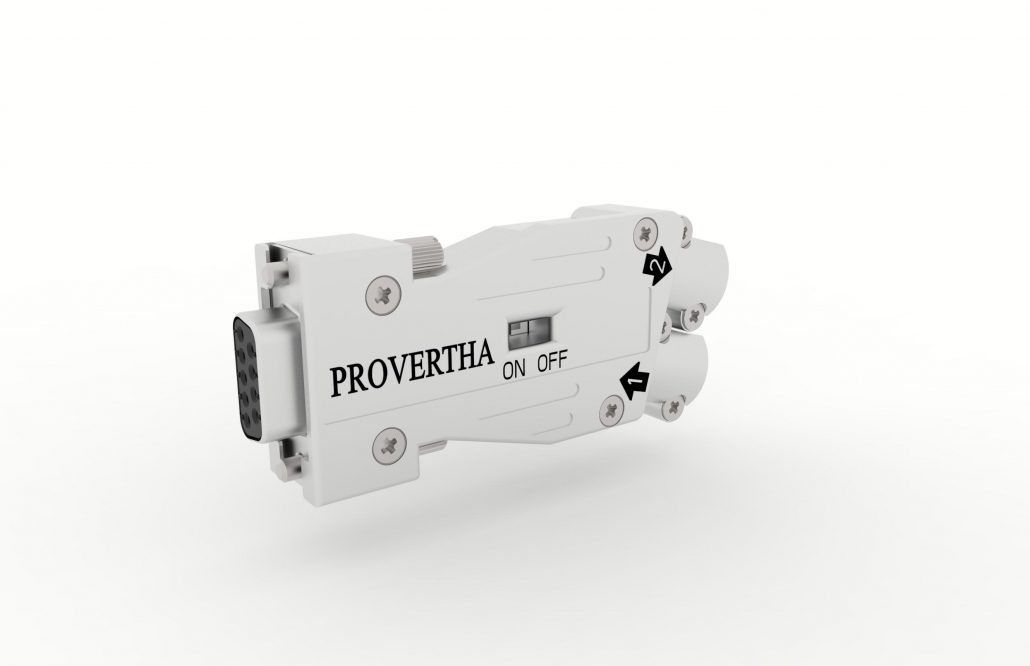

Bus connector axial external cable clamp connection

Axial CAN-Bus Bus connector external cable clamp

The easy and reliable connection for the interference-free EMV-suitable data transmission is secured by bus connectors with an external cable clamp which guarantee a safe strain relief and shield transition of the  CAN-Bus cable.
The 180° cable outlet of the axial shape allows the use in installation situations with two interfaces above each other.

Technical characteristics

– Compact outer dimensions for restricted installation situations

– Cable connection: 180° towards D-Sub plug direction

– Effective 360° EMI/RFI cable shielding due to special full-metal housing and massive cable clamp

– Completely shielded die-cast housing for EMI/RFI safety with special shielding geometry at the housing

– Easy and fault-free connection by indexing the respective CAN-Bus signal on the circuit board for the assigned screw clamp

– Easy and safe due to screw clamp

– Flexibility at the cable outer dimension due to cable clamps for different cable diameters, for example drag chain cables

– Switch operable externally for activating the bus termination

– Switch ON/OFF position visible from the front

– Latching: Knurled screw UNC 4-40

– 100 % tested bus connectors for high reliability
