Profibus Special M12

incl. VAT zzgl. Versandkosten

Profibus Special M12

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: Profibus_
  • Description
  • Technical Data
  • Dimensions

Description

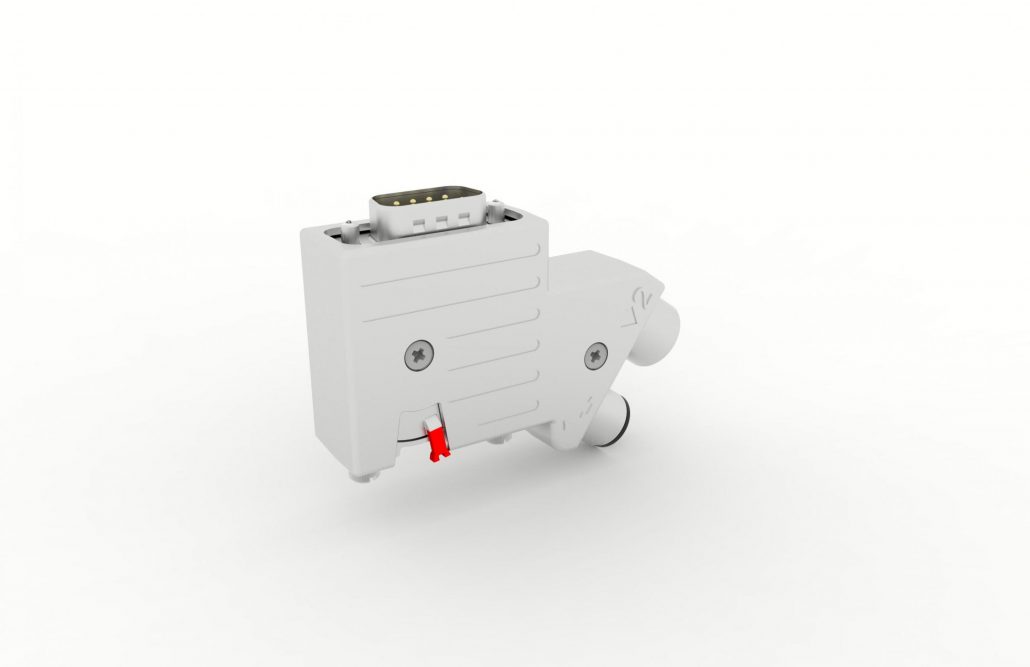

PROFIBUS Special Bus connector Plug & Play M12

The easy and reliable connection and the fault-free data transmission are secured by plug & play bus connectors with two M12 plug connectors. Bus connection with 100 % tested bus connectors and manufactured M12 PROFIBUS lines. Easy plug-in of the new Provertha bus connector and plug-in of the M12 bus cable and the PROFIBUS starts playing immediately.
The 55° cable exit of the special construction allows the application especially in installation situations with two interfaces on top of each other.

Technical features

– For stacked interfaces

– Cable connection: 55° towards the D-Sub mating direction

– Fault-free PROFIBUS connection due to B-coded M12 connectors for PROFIBUS cable connection

– Reliable PROFIBUS quick connection in only a few seconds

– Easy installation without special knowledge

– Completely shielded die-cast zinc housing for EMI/RFI safety with a special shielding geometry at the housing

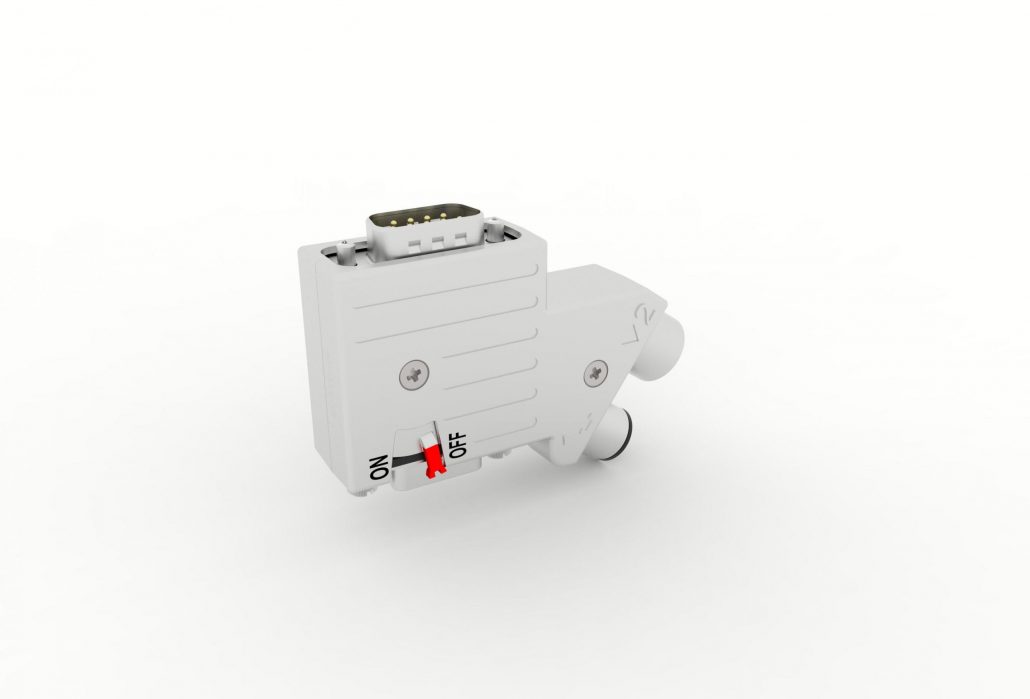

– Massive switch lever, externally operable for activation of the bus termination

– Lever ON/OFF position coloured and visible from the front

– Programming/diagnosis option with second D-Sub

– Latching: knurled screw UNC 4-40

– 100% tested bus connector for high reliability

Technical Data

Data rate

12 Mbit/s

Bus interface

D-Sub 9-pin, pin

Mechanical lifetime

200 mating cycles

Temperature range

-20° C to + 70° C

Permitted humidity

Max. 75% at + 25° C, non-condensing

Protection class

IP 30

Housing material

Zn-alloy

D-Sub screw latch

UNC 4-40

Cable connection

Shielded M12 PROFIBUS cable

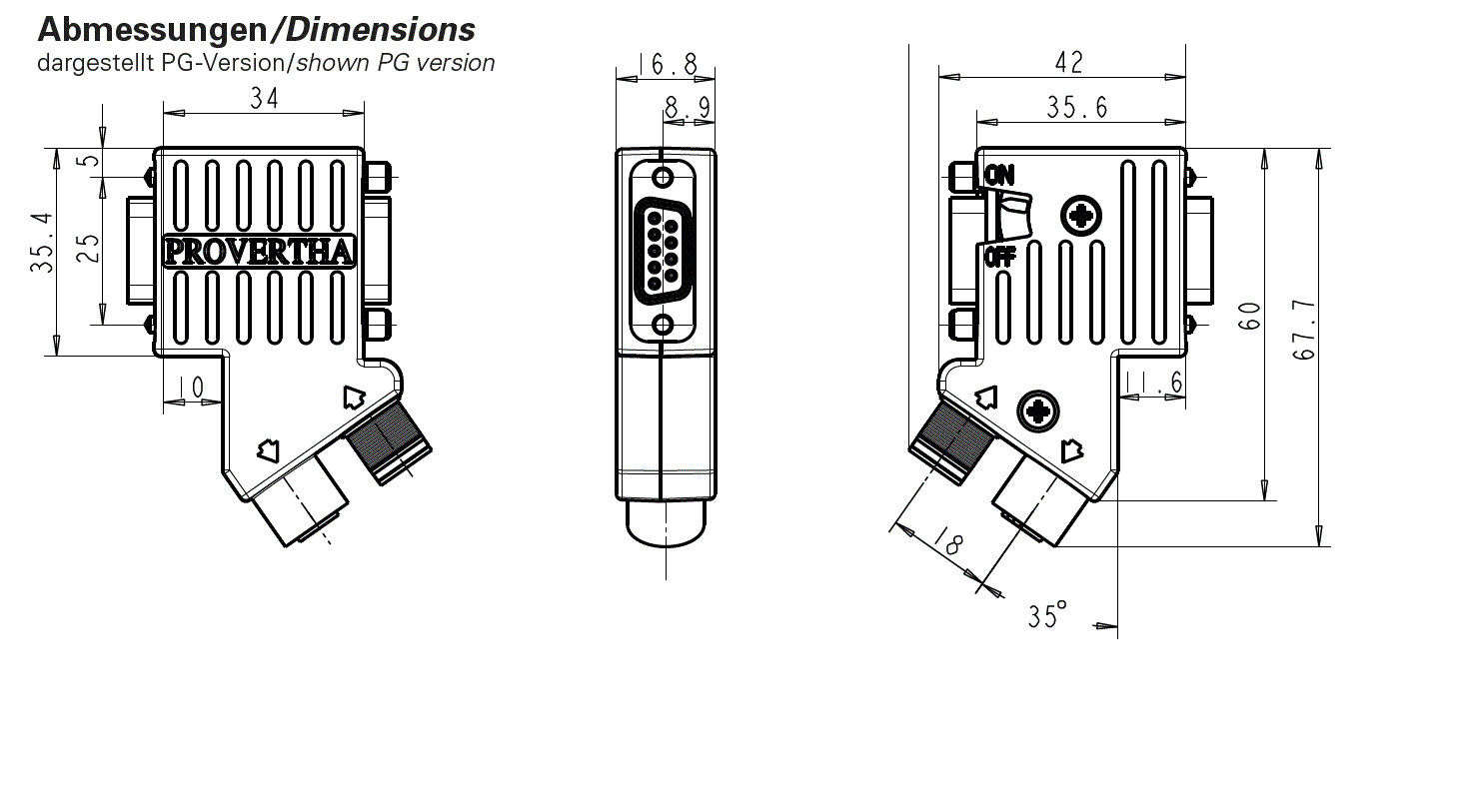

Dimensions
