Description

Bus Connectors Special Internal cable clamp connection

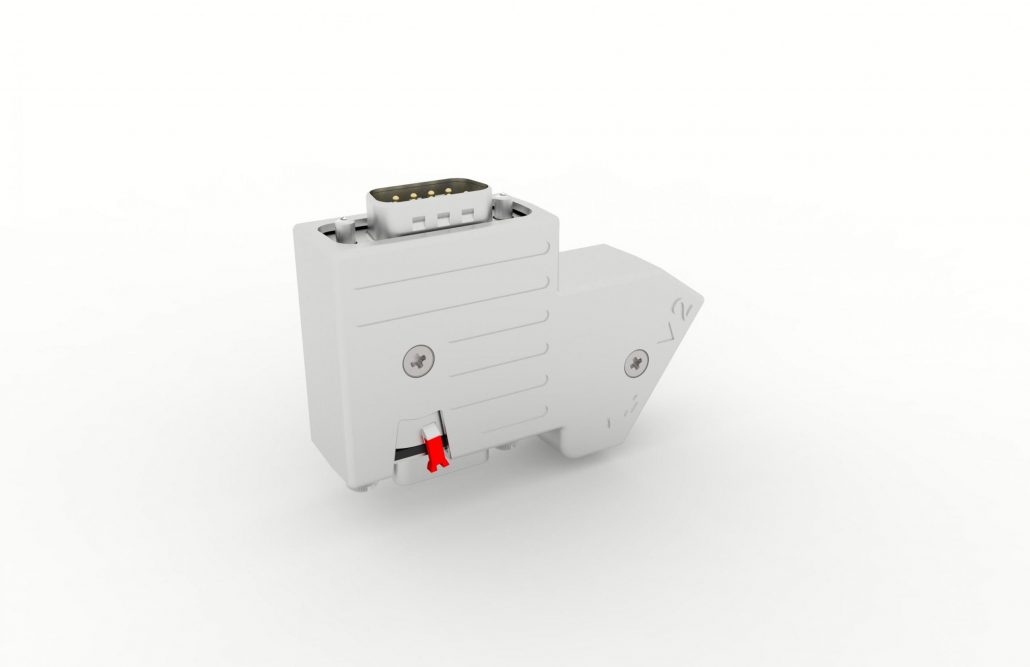

Special PROFIBUS bus connectors internal cable clamp

The easy and reliable connection for the fault-free EMV-suitable data transmission are secured by bus connectors with an internal cable clamp which guarantee a safe strain relief and shield transition of the Profibus cable.
The 35° cable exit of the special construction allows the application especially in installation situations with two interfaces on top of each other.

Technical features

– For stacked interfaces

Cable connection:

– Cable connection: 35° towards the D-Sub mating direction

– Effective EMI/RFI cable shielding via special, completely closed full-metal housing and massive cable clamp

– Easy, fault-free connection with coloured clamps with letters for the respective Profibus wire

– Vibration-proof, easy and fast due to cage clamp

– Completely shielded die-cast zinc housing for EMI/RFI safety with a special shielding geometry at the housing

– Massive switch lever, externally operable for activation of the bus termination

– Lever ON/OFF position coloured and visible from the front

– Programming/diagnosis option with second D-Sub

– Latching: knurled screw UNC 4-40

– 100% tested bus connector for high reliability
