Description

Bus Connectors Compact Internal cable clamp connection

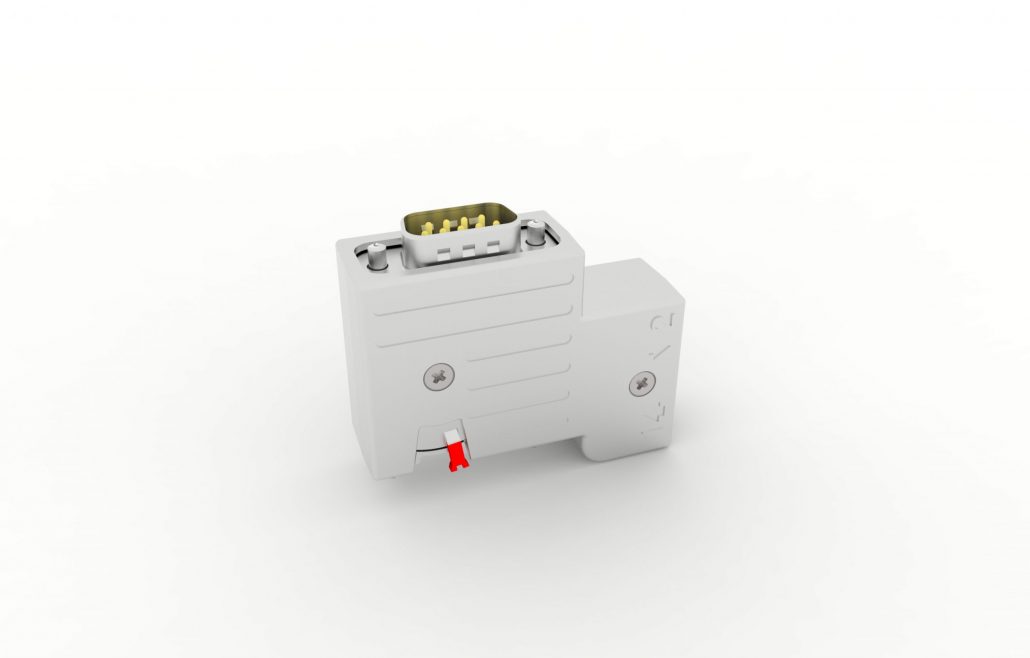

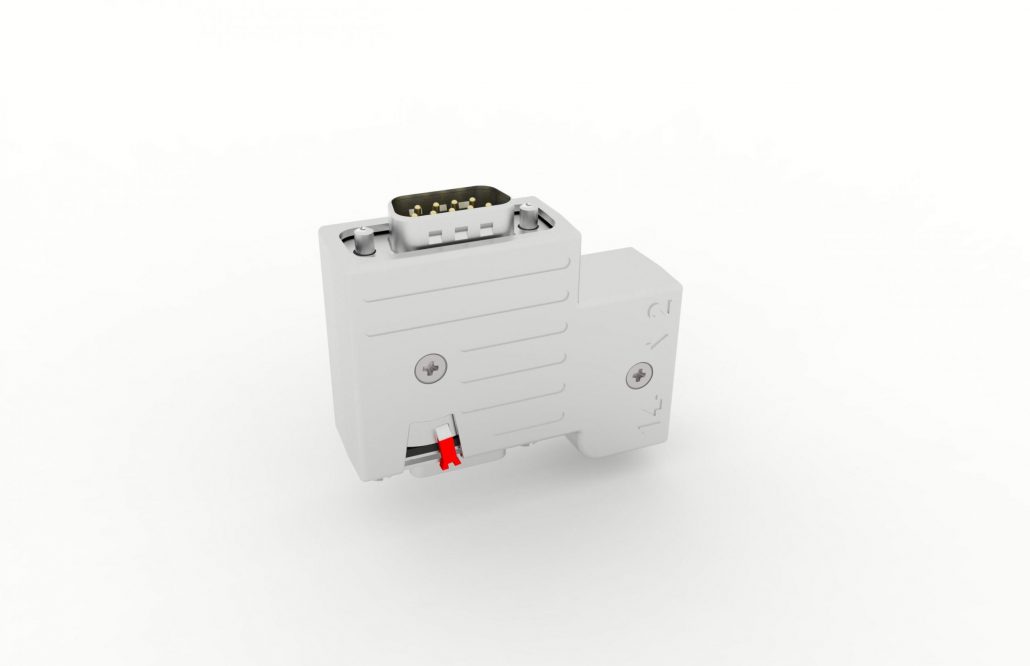

Compact PROFIBUS bus connectors internal cable clamp

The easy and reliable connection for the interference-free EMV-suitable data transmission is secured by bus connectors with an internal cable clamp which guarantees a safe strain relief and shield transition of the Profibus cable.

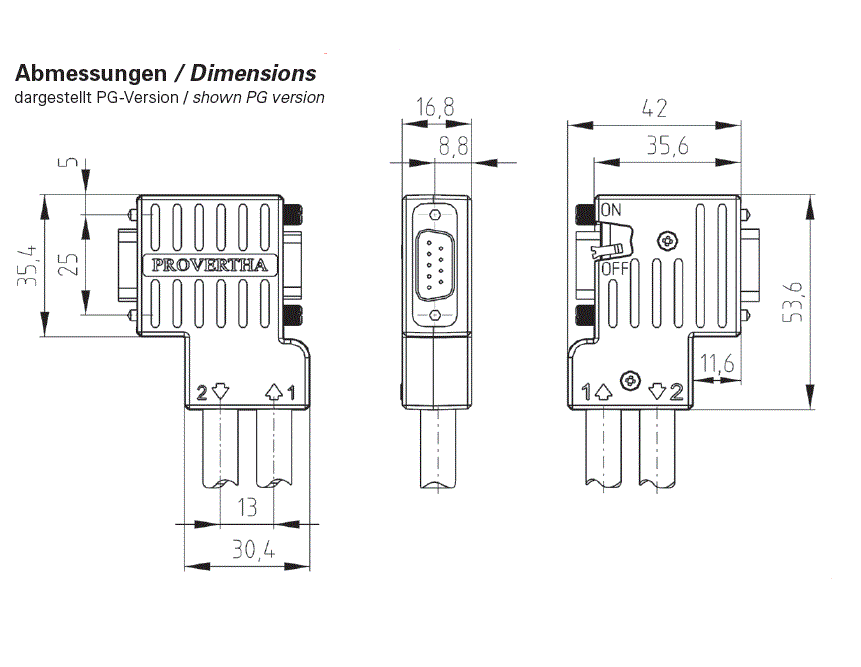

The very compact design allows the application in almost every installation situation, especially restricted installation places.

Technical features

– Very compact outer dimensions for restricted installation situations

– Cable connection: 90° towards the D-Sub mating direction

– Effective 360° EMI/RFI cable shielding via special full-metal housing and massive cable clamp

– Easy, fault-free connection with coloured clamps with letters for the respective Profibus wire

– Vibration-proof, easy and fast due to cage clamp

– Completely shielded die-cast zinc housing for EMI/RFI safety with a special shielding geometry at the housing

– Massive switch lever, externally operable for activation of the bus termination

– Lever ON/OFF position coloured and visible from the front

– Programming/diagnosis option with second D-Sub

– Latching: knurled screw UNC 4-40

– 100% tested bus connectors for high functional reliability
