Description

Bus Connectors Special External cable clamp connection

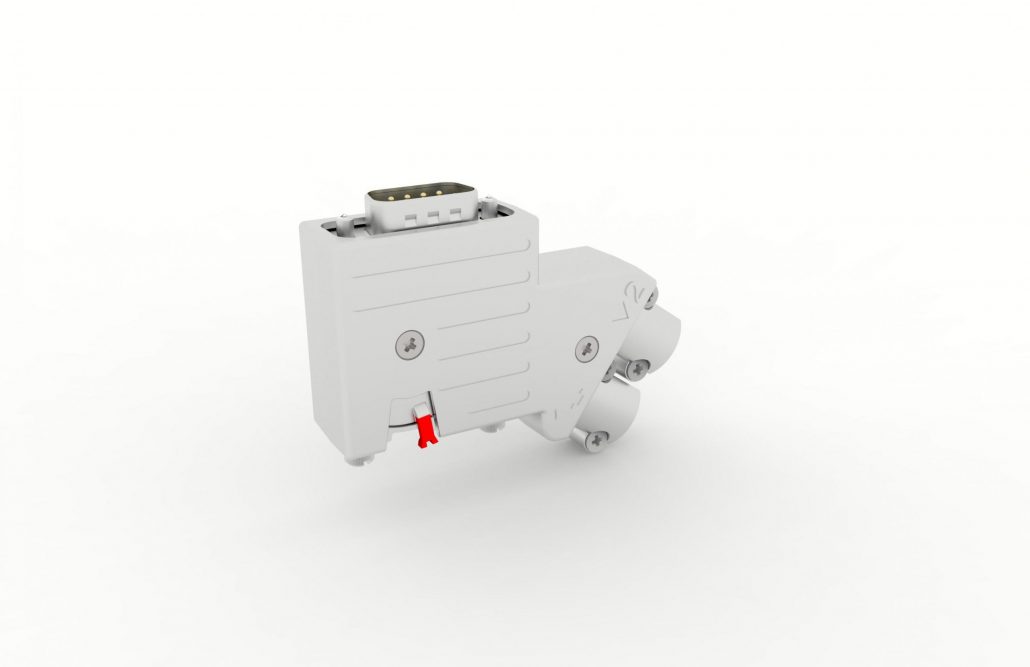

Special PROFIBUS bus connectors external cable clamp

The simple and reliable connection for the fault-free EMC compliant data transfer secure the bus connectors with external cable clamp, which ensures secure strain relief an shield connection of the Profibus cable.
The 55° cable outlet of the special version allow the application especially in installation conditions with 2 stacked interfaces.

Technical features

– For stacked interfaces

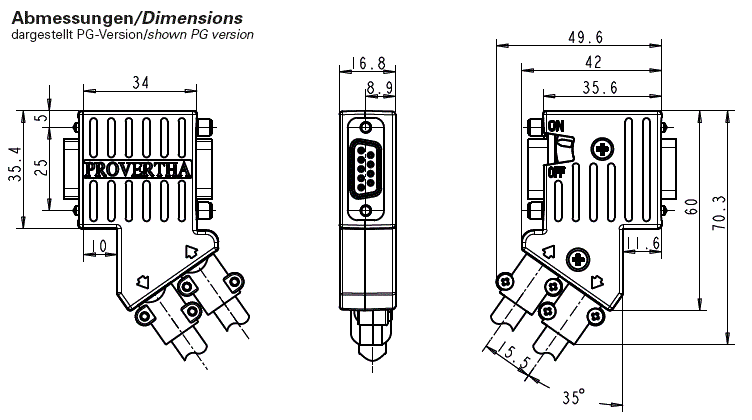

– Cable connection: 55° to D-Sub mating interface

– Effektive 360° EMI/RFI shielding achieved by special full metal hood and solid cable clamp

– Fault-free PROFIBUS connection achieved by colored cage clamp terminals for each individual Profibus wire

– Vibration-proof quick and easy by means of a cage clamp terminal

– Flexibility for the outer cable diameter achieved by crimp sleeves for various cable diameters, e.g. drag chain cables

– Entirely shielded zinc die-cast housing for EMC/RFI-proofness with special shielding geometry at the housing

– Solid switch lever can be operated externally to activate the bus termination

– Switch ON/OFF position coloured and visible from front side

– Programming/diagnosis option with 2nd D-Sub

– Locking: Knurled screw UNC 4-40

– 100% tested bus connectors for high functional reliability
