Description

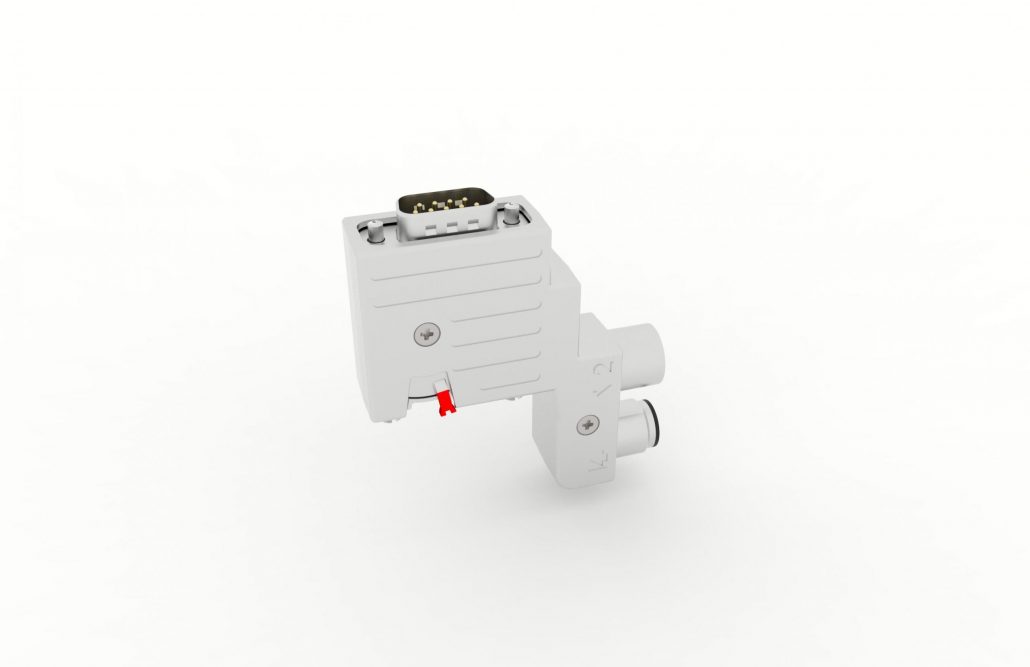

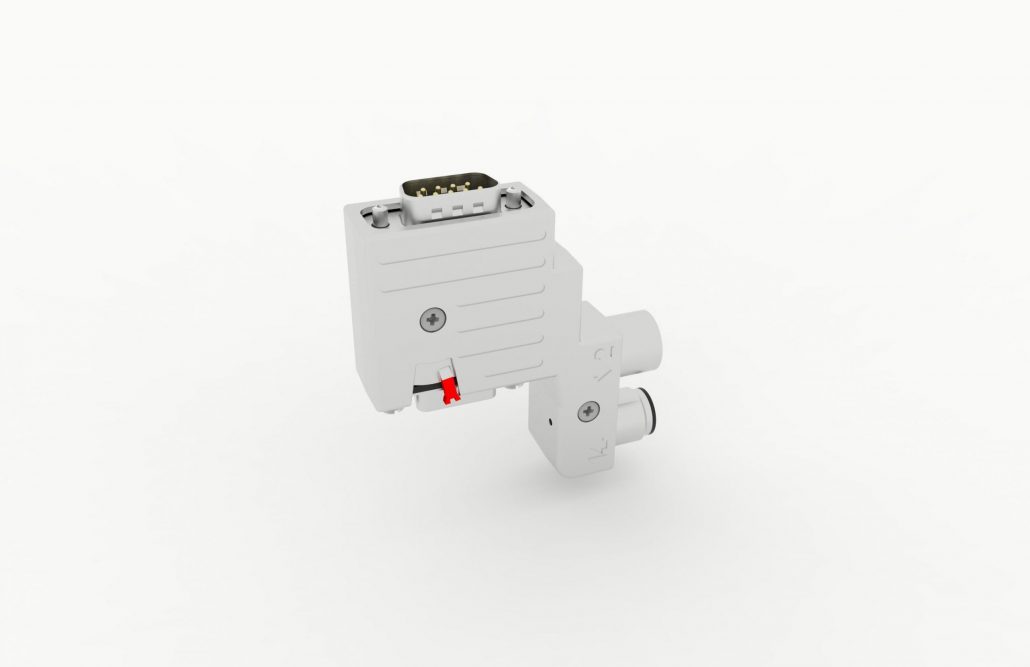

Bus Connectors Compact 2 Plug&Play M12 for SINUMERIK NCU 7×0.3 PN
Compact 2 PROFIBUS bus connectors with fault-free quick connection
The simple and reliable PROFIBUS interface connection and the faultless PROFIBUS data transfer for the new Siemens SINUMERIK NCU 7×0.3 PN the new tailored Compact 2 plug&play bus connector with two M12 connection interfaces for the bus connection has been developped. Easy plug-in of the new Provertha bus connector and plug-in of the M12 bus cables and the play of the PROFIBUS follows immediately.

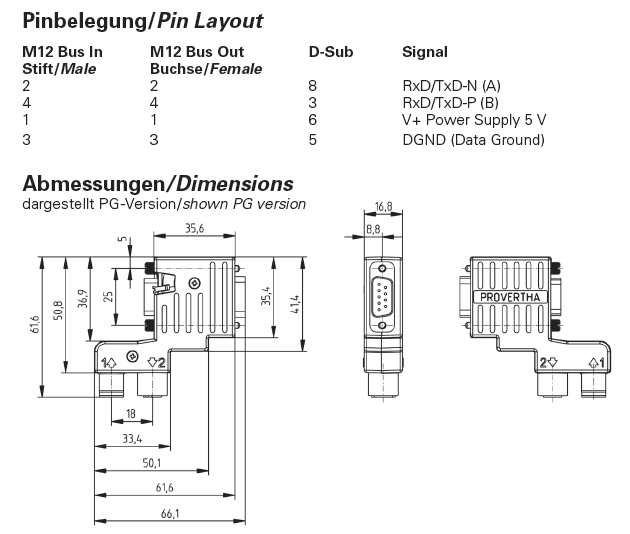

Technical features
- Very compact tailored dimensions for the assembly conditions of the SINUMERIK NCU 7×0.3 PN
- Cable connection: 90° to D-Sub mating interface
- Fault-free PROFIBUS connection achieved by M12 connectors with B-coding for the PROFIBUS cable connection
- Reliable quick and simple PROFIBUS connection within a few seconds
- E asy installation without special knowledge
- Entirely shielded zinc die-cast housing for EMC/RFI-proofness with special shielding geometry of the housing
- Solid switch lever can be operated externally to activate the bus termination
- Switch ON/OFF position colored and visible from front side
- Programming/diagnosis option with 2nd D-Sub
- Locking: Knurled screw UNC 4-40
- 100 % tested bus connectors
System specific features
- Approved function and security for the maximum number of 40 PROFIBUS participants with Provertha bus connectors at 12 Mbit/s
- Only minimum signal impact and signal modification,when the bus connector is connected
- The bus connector plug&play M12 is adjusted for PROFIBUS DP and thereby prevents reflections
- The influence of problematic bus components will be mostly compensated
