D-Sub Connectors Mixed Layout Crimp Connection

incl. VAT zzgl. Versandkosten

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: D-Sub cable connection
  • Description
  • Dimensions
  • Downloads

Description

D-Sub Mixed Layout Crimp Connectors

  • D-Sub Mixed Layout Crimp connectors
  • Versions with riveted thread upon request
  • Signal crimp contacts in turned or stamped version from AWG 18 up to AWG 28
  • Special crimp contact versions for high-power from 10 A to 40 A

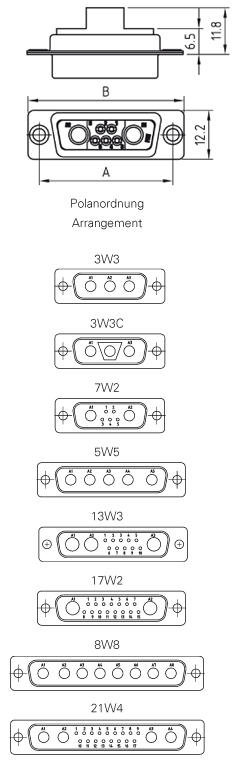

Dimensions

[{ oxcontent ident=tabel_techdata_mischpol }]



Downloads

Data_sheet_D-Sub_Mixed_Layout_Crimp
