High Power Contacts – Solder pot

incl. VAT zzgl. Versandkosten

S.60, Naming, Kategorie

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: D-Sub cable connection
  • Description
  • Technical Data
  • Dimensions

Description

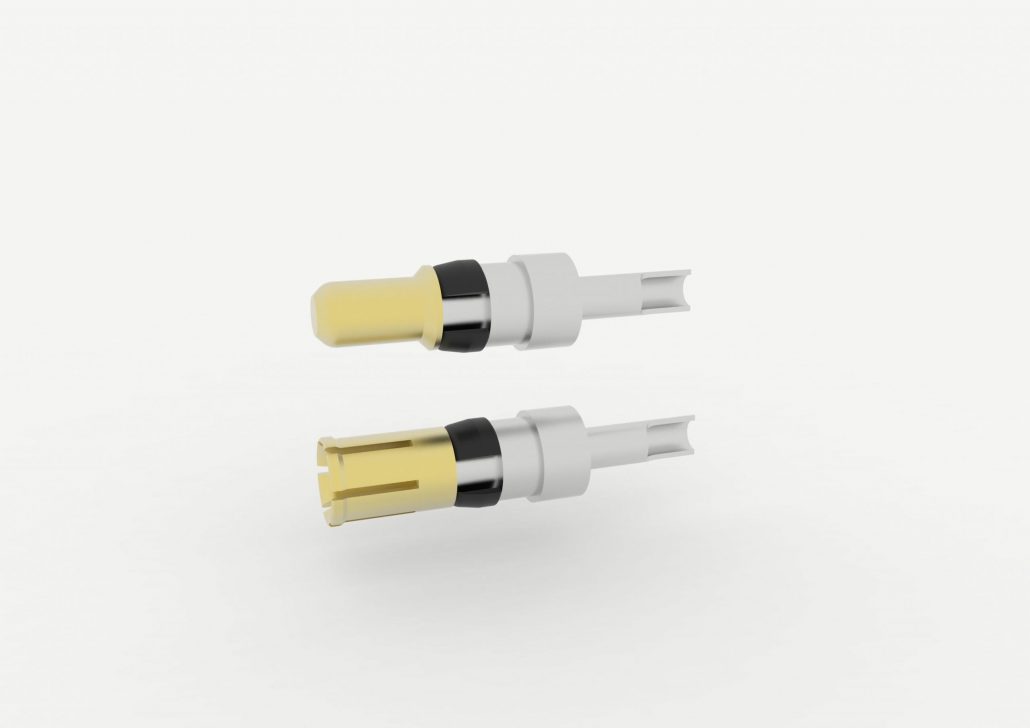

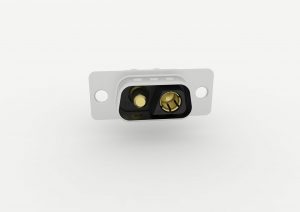

High power contacts Solder pot connection

  • Currents:10 A/20 A/40 A
  • Twisted precision contacts from Cu-alloy
  • Fully gold-plated via Ni-barrier and tin-plated connection area
  • Various surfaces for different lifetime requirements
  • Highest quality and lifetime due to defined contact zone
  • For the use in D-Sub hermaphroditic connectors

Technical Data

Operating current

10 A/20 A/40 A

Wire cross-section 10 A/20 A/40 A

AWG 16-AWG 20/AWG 12-14/AWG 8-10

Contact resistance

≤ 1 m Ω

Insulation resistance

10 G Ω

Temperature range

-55° C bis +125° C

Quality class

1 = 500 mating cycles

2 = 200 mating cycles

Contacts

Cu-alloy

Contact surface

Fully gold-plated via Ni-barrier or selectively gold-plated (depending on version)





High Power Solder Pot
Current rating Pin
Part no.
Socket
Part no.
Dimensions
      Ø A Ø B
10 A P5110G2 P6110G2 1.90 2.56
20 A P5120G2 P6120G2 2.80 3.65
40 A P6120G2 P6140G2 4.90 5.50

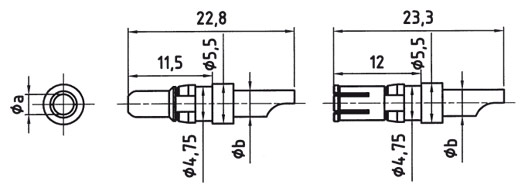

Dimensions

High Power Solder Pot
Current rating Pin
Part no.
Socket
Part no.
Dimensions
      Ø A Ø B
10 A P5110G2 P6110G2 1.90 2.56
20 A P5120G2 P6120G2 2.80 3.65
40 A P6120G2 P6140G2 4.90 5.50
