37 Hood Metallized Flat Cable
incl. VAT zzgl. Versandkosten
S.55, Naming, Kategorie
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante
Category: Plastic Hoods
Technical Data
General | |
IP Rating: | IP 20 |
Cable diameter: | 5 -11 mm |
Temperature Range: | -25°C bis +85°C |
Tightening torque ( screws for cable clamp): | max. 30 Ncm |
Tightening torque (cover screws): | max. 35 Ncm |
Material | |
Hood: | Plastic ABS UL 94-V0 |
Colour: | Nickel plated |

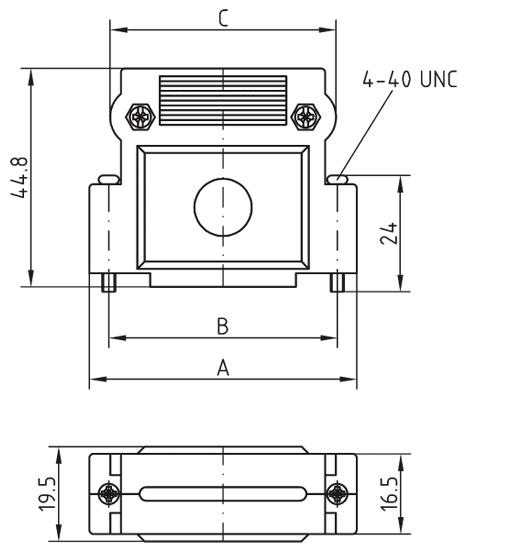

Dimensions
Abmessungen / Dimensions | ||||||
Polzahl / Pole Size |
09 | 15 | 25 | 37 | ||
A (mm) | 33,2 | 41,0 | 54,8 | 71,3 | ||
B (mm) | 25,0 | 33,3 | 47,0 | 63,5 | ||
C (mm) | 24,6 | 32,7 | 47,6 | 62,8 |
