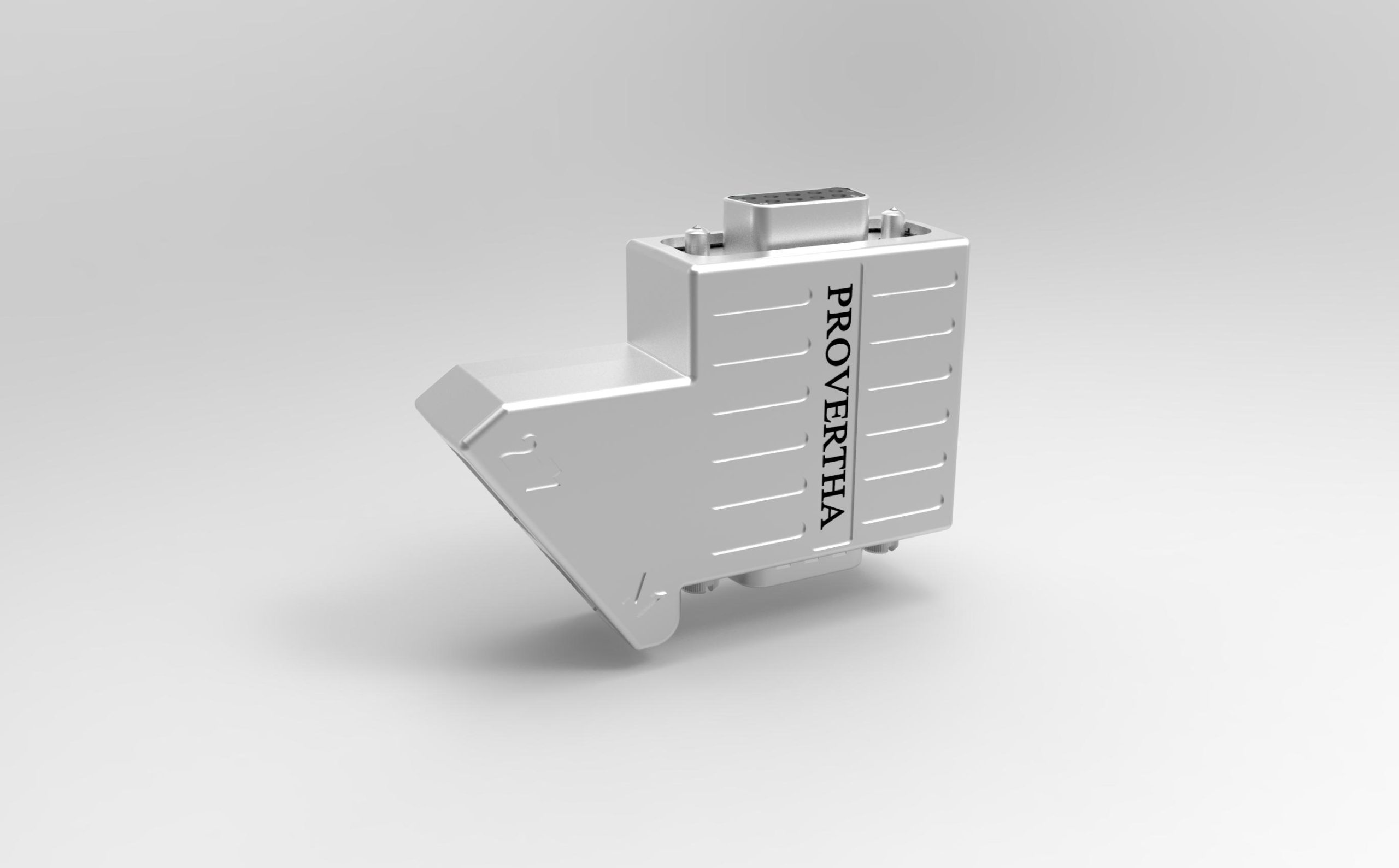

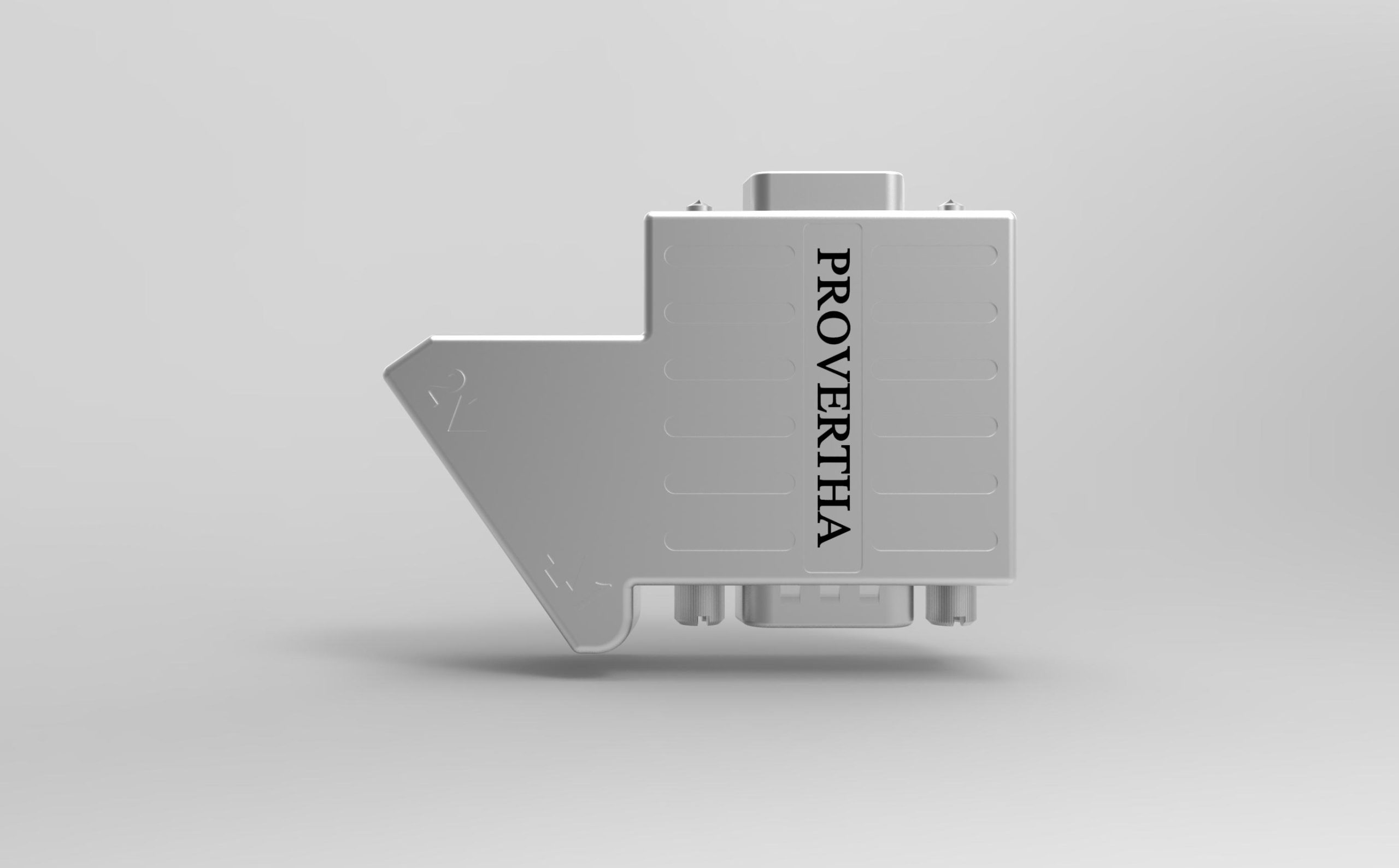

CAN-Bus Special CR

incl. VAT zzgl. Versandkosten

CAN-Bus Special CR

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: CAN bus
  • Technical Data

Technical Data

Data rate

12 Mbit/s

Bus interface

D-Sub 9-pin, socket

Mechanical lifetime

200 mating cycles

Temperature range

-20° C to + 70° C

Permitted humidity

Max. 75% at + 25° C, non-condensing

Protection class

IP 30

Housing material

Zn-alloy

D-Sub screw latch

UNC 4-40

Cable diameter

8-9 mm

Wire termination

Screw clamp

Single wire cross-section

0.08-0.5 mm2 (AWG 26-AWG 20)
