CAN-Bus Special IK

incl. VAT zzgl. Versandkosten

CAN-Bus Special IK

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: CAN bus
  • Description
  • Technical Data
  • Dimensions

Description

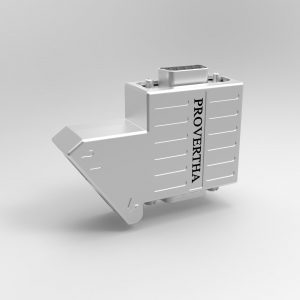

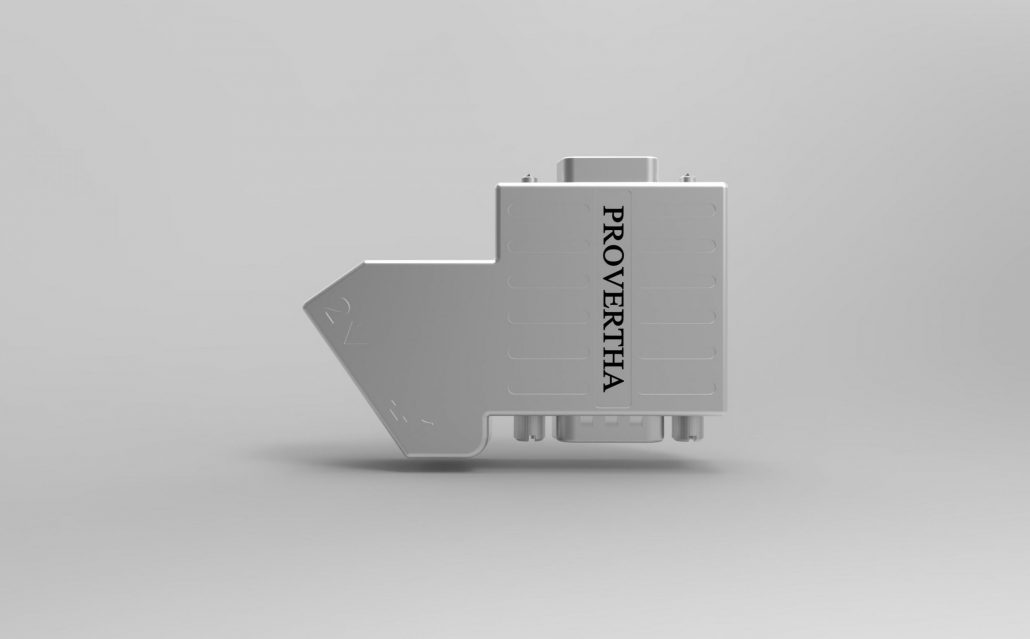

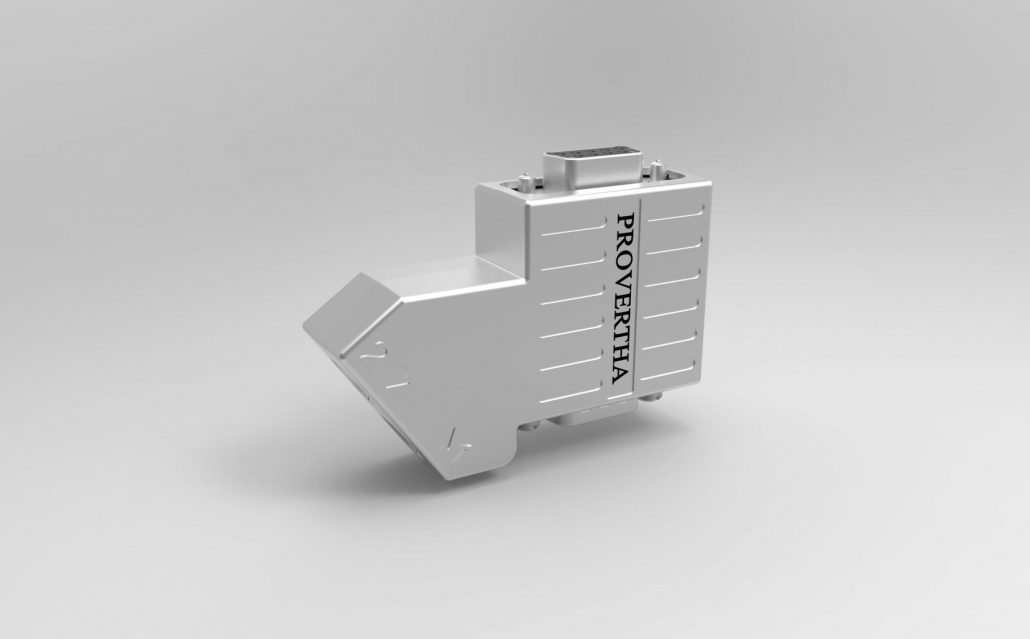

Bus Connectors Special Internal cable clamp connection

Special CAN-Bus bus connectors internal cable clamp

The easy and reliable connection for the interference-free EMV-suitable data transmission is secured by bus connectors with an internal cable clamp which guarantees a safe strain relief and shield transition of the Can-Bus cable.
The 35° cable outlet of the special version allow the application especially in installation conditions with 2 stacked interfaces.



Technical features

– For stacked interfaces

– Cable connection: 35° to D-Sub mating interface

– Effective 360° EMI/RFI shielding achieved by special full metal hood and solid cable clamp

– Entirely shielded zinc die-cast housing for EMC/RFI-proofness with special shielding geometry of the housing

– Fault-free CAN-Bus connection achieved by indicating for each screw terminal the according CAN-Bus signal on the pcb.

– Quick and easy by means of a screw terminal

– Switch can be operated externally to activate the bus termination

– Switch ON/OFF position visible from front side

– Programming/diagnosis option with 2nd D-Sub

– Locking: Knurled screw UNC 4-40

– 100 % tested bus connectors for high functional reliability



Technical Data



Data rate

1 Mbit/s

Bus interface

D-Sub 9-pin, socket

Mechanical lifetime

200 mating cycles

Temperature range

-20° C to + 70° C

Permitted humidity

Max. 75% at + 25° C, non-condensing

Protection class

IP 30

Housing material

Zn-alloy

D-Sub screw latch

UNC 4-40

Cable diameter

8-9 mm

Wire termination

Screw clamp

Single wire cross-section

0.08-0.5 mm2 (AWG 26-AWG 20)

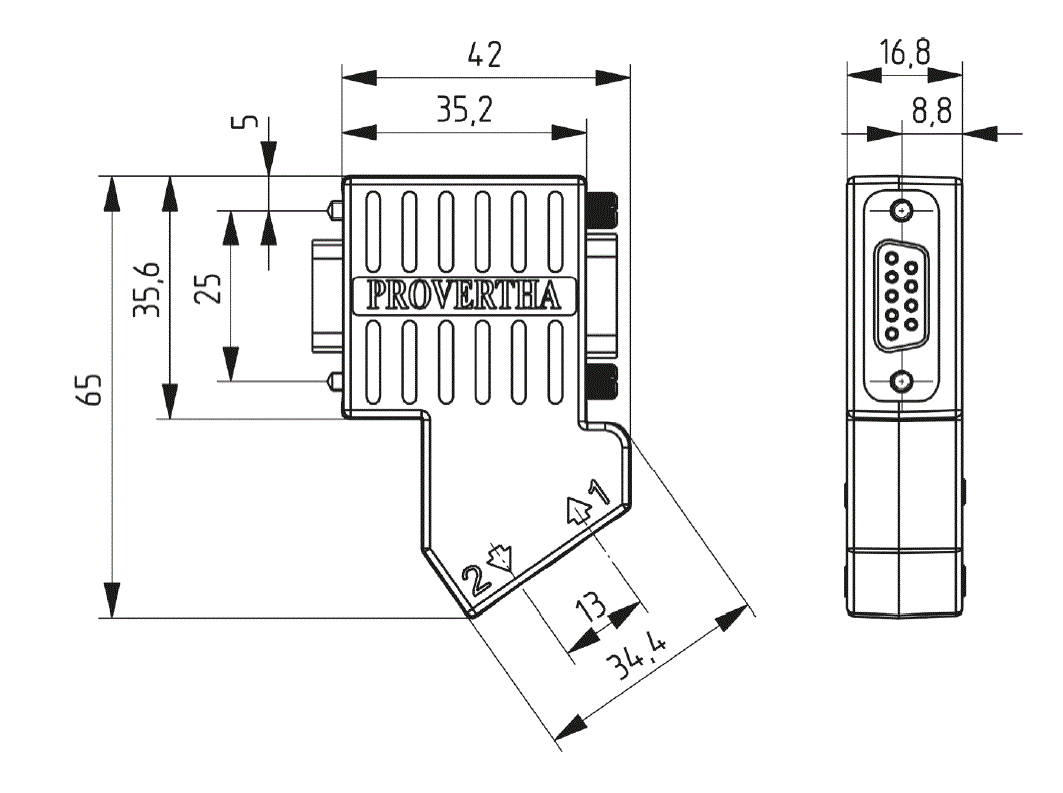

Dimensions
