17 Hood Plastic Straight Cable Output With Screw Locking

incl. VAT zzgl. Versandkosten

S.92, Naming, Kategorie, 17

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: Plastic Hoods
  • Description
  • Technical Data
  • Dimensions
  • Downloads

Description

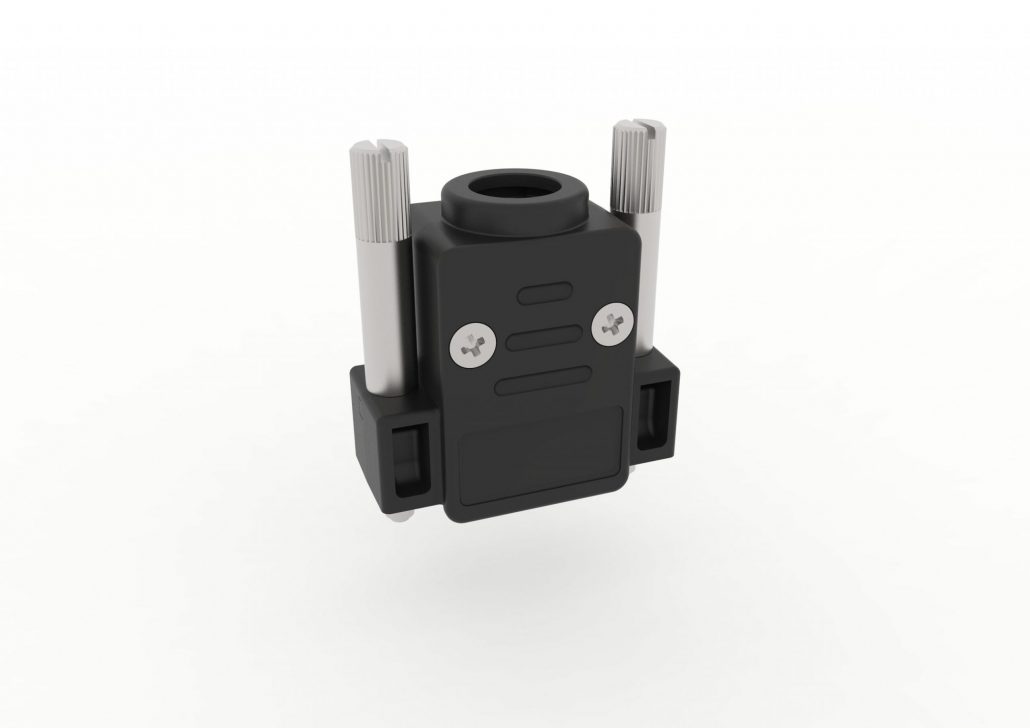

Plastic hood (Series 17)

metallized with screw locking

  • Two pieced hood with straight cable output
  • Made from black ABS quality platic UL 94V-0 rated
  • Posibility to insert  in 3 TE grid
  • integrated dust protection shoulder
  • UNC 4-40 locking screws
  • Also available in red, green and blue

Technical Data

General

IP protection class

IP 20

Cable diameter:

5─11 mm

Temperature range:

-20°C bis +90°C

Tightening torque (cable clamp screws):

max. 30 Ncm

Tightening torque (cover screws):

max. 20 Ncm

Material:

Hood:

ABS UL 94-V0

Colour:

Black



Dimensions

Abmessungen / Dimensions
Polzahl / Polesize 09 15 25 37 50
Maß / Dimension A (mm) 31.0 35.0 38.0 40.0 40.0
Maß / Dimension B (mm) 31.5 40.0 53.5 70.0 67.5
Maß / Dimension C (mm) 15.2 15.2 15.2 15.2 18.2
Max. Kabel Ø 8.5 8.5 11.0 11.0 12.0

Downloads

  • Datasheet Hood Series 17, Size 1 (9 pol.), (17090MxxTVPE-P.pdf)
  • Datasheet Hood Series 17, Size 2 (15 pol.), (17150MxxTVPE-P.pdf)
  • Datasheet Hood Series 17, Size 3 (25 pol.), (17250MxxTVPE-P.pdf)
  • Datasheet Hood Series 17, Size 4 (37 pol.), (17370MxxTVPE-P.pdf)
  • Datasheet Hood Series 17, Size 5 (50 pol.), (17500MxxTVPE-P.pdf)
