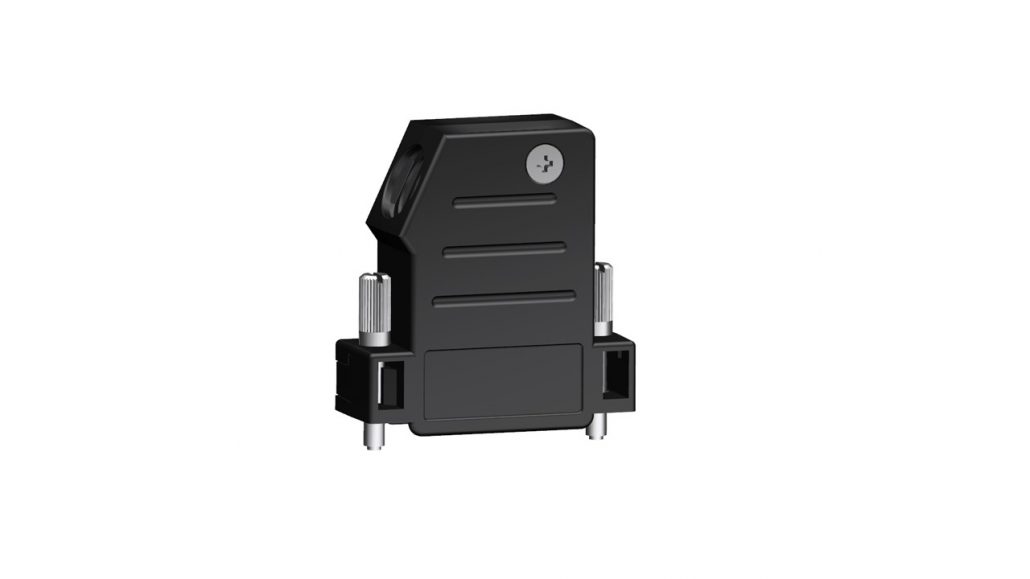

47155B Hood Plastic Compact Sidewards Cable Exit With Screw Locking

incl. VAT zzgl. Versandkosten

S.94, Naming, Kategorie, 47155B

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: Plastic Hoods
  • Description
  • Technical Data
  • Dimensions
  • Downloads

Description

  • Compact hood with sidewards cable exit and screw locking (series 47155)

    D-Sub hood size 2 to be used with:

    • D-Sub 15 pole
    • D-Sub HD 26 pole
    • Mixed Layout 3W3
    • D-Sub Power 600V, 4W4

    Technical features:

    • Cable outlet 25°
    • Easy assembly due to  shell snap in design and premounted knurled locking screws
    • Integrated cable clamp
    • Integrated dust protection shoulder
    • Assembly grid in rack or device 3 TE (15.24 mm)
    • Multi-opening possible

Technical Data

General
IP Rating: IP 20
Cable diameter: 5-11 mm
Temperature Range: -40°C bis +90°C
Tightening torque (screws for cable clamp): max. 30 Ncm
Tightening torque (cover screws): max. 20 Ncm
Material
Hood: ABS UL 94-V0
Colour: Black

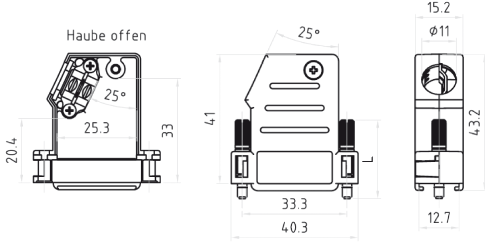

Dimensions

Downloads

  • Data Sheet Hood 47155B
  • Provertha plastic hoods comon data sheet (D-Sub-PH-D.pdf)
