M12 D-coded Industrial Ethernet Panel mount crimp connectors

incl. VAT zzgl. Versandkosten

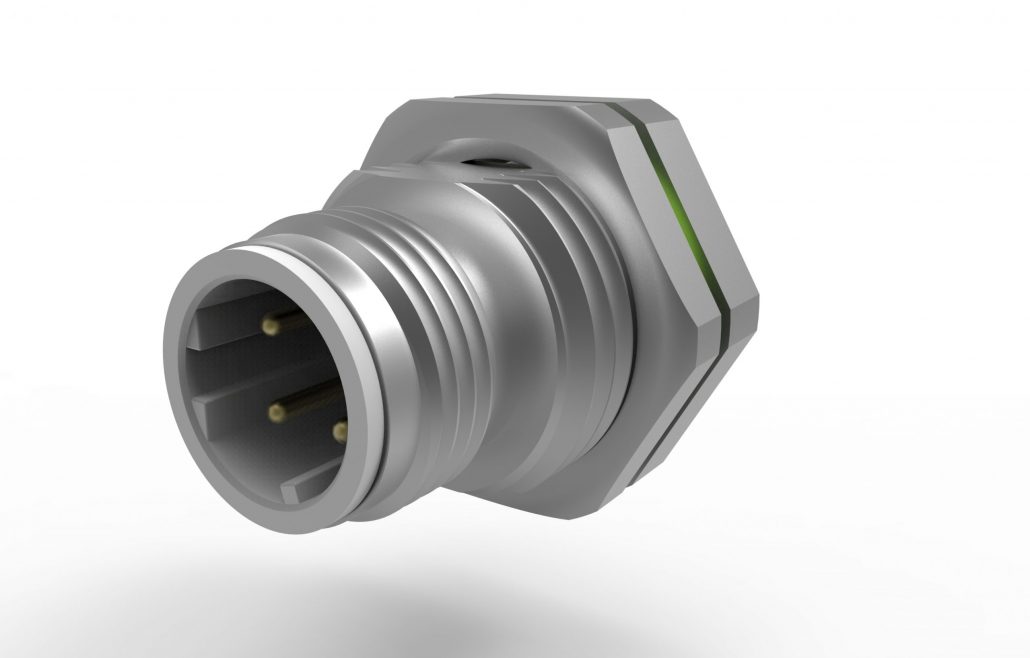

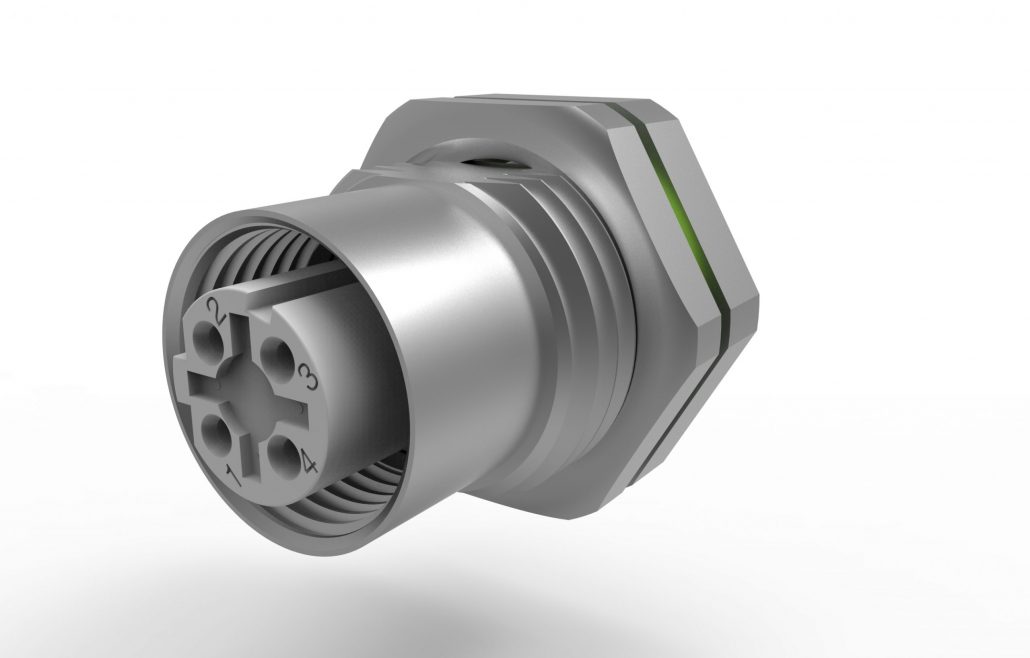

M12 D4 Gerätestecker

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: D-Code
  • Description
  • Technical Data
  • Dimensions

Description

M12 D-coded Industrial Ethernet Panel mount crimp connectors

Custom made solutions offering choice for wire length

The D-coded M12 panel mount connectors fpr panel installations in protection class IP67 particularly fulfills the requirements for the reliable  connection and the interference-free data transmission. This is achieved through a safe signal contacting through twisted machined crimp contacts and the full-metal housing. This way, custom made device interface solutions can be implemented due to the free choice of the wire length.

Technical features

– Very compact outer dimensions

– Effective shielding due to full-metal housing

– Insulator with D-coding

– Machined crimp contacts for a safe contact

– Crimp contacts:  i.e. signal: AWG 26-28 /Power: AWG 22-24

– Easy and fast installation due to crimp snap-in contacts and pre-mounted assembly with a few single parts

– Fault-free wire-termination due to contact holder with coding

Technical Data

Steckverbinder

M12 gemäß IEC 61076-2-101

Codierung-Polzahl

D

Kontaktzahl

4

Strombelastbarkeit

4 A

Bemessungsspannung

50 V DC

Durchgangswiderstand

≤ 5 mΩ

Isolationswiderstand

≥ 100 MΩ

Anschlussart Einzelader

Gedrehte Crimp Snap-in-Kontakte

Aderquerschnitt

AWG 19–AWG 28

Schutzart

IP 67 (nur schraubverriegelt)

Temperaturbereich

–40° C bis +85° C

Mechanische Lebensdauer

≥ 200 Steckzyklen

Schock und Vibrationssicherheit

DIN EN 61373 Kategorie 1, Klasse B

Materialien



Gehäuse

Cu-Legierung vernickelt

Isolierkörper +Kontakthalter

Thermoplast I2/F2 gemäß NFF-16-101/102 und HL3 gemäß R22/R23 EN 45545-2

Material

Cu-Legierung

Oberfläche

Ni/Au

Dichtungen

Elastomer

Gewinde Wandbefestigung

M16 x 1,5

Gehäuse Außen-6kt

SW 19/AF 19

Außenabmessungen

Ø21 x 21

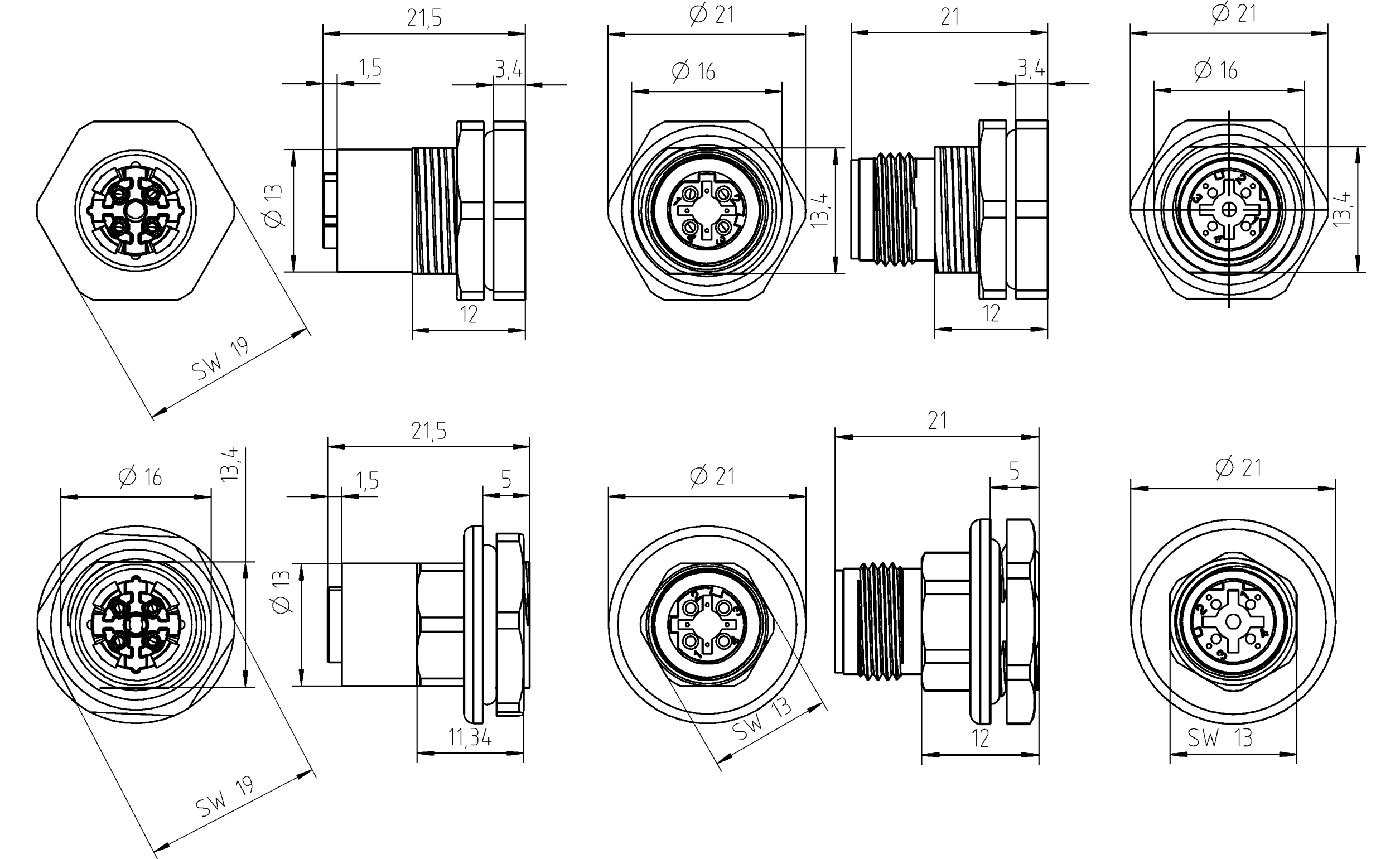

Dimensions
