M12 D4 90° cable gland

incl. VAT zzgl. Versandkosten

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: D-Code
  • Description
  • Technical Data
  • Dimensions

Description

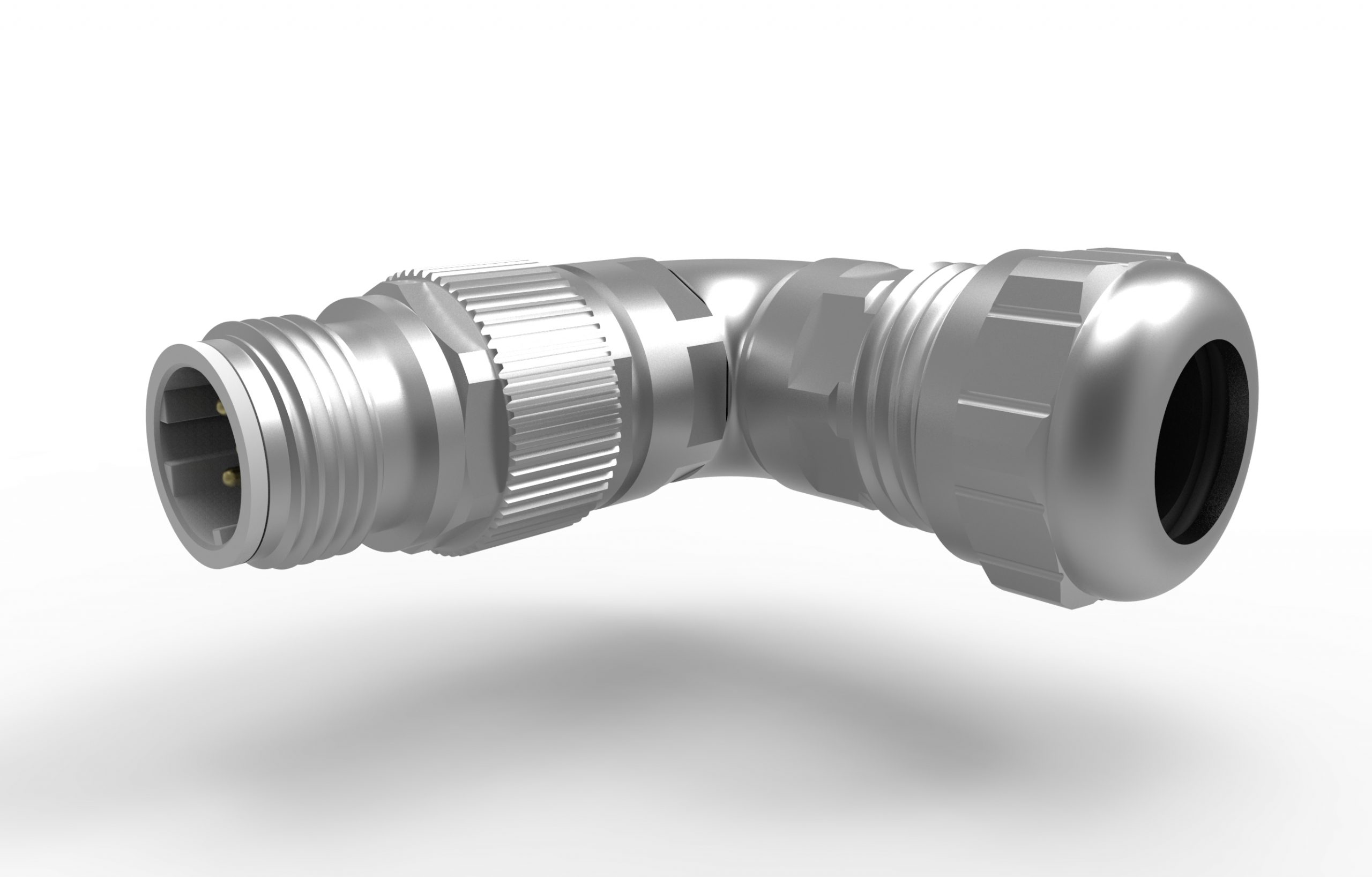

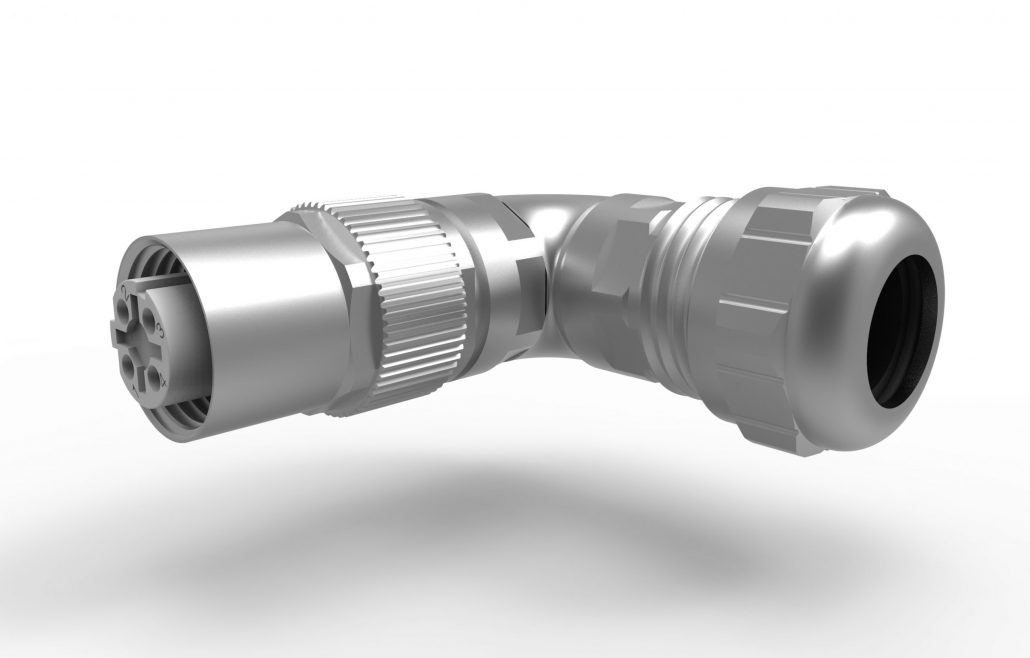

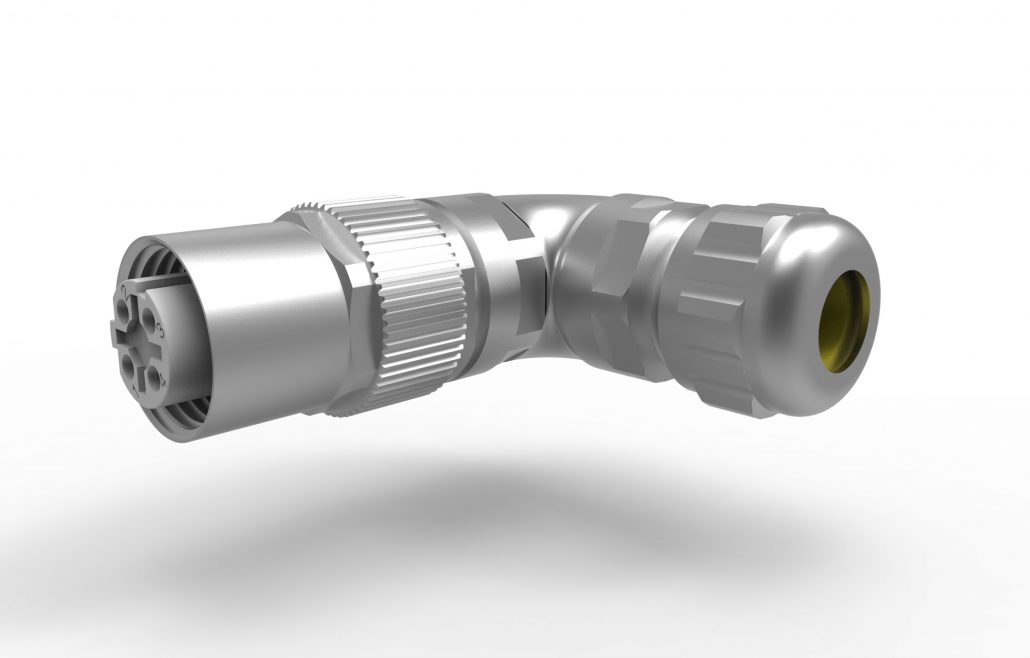

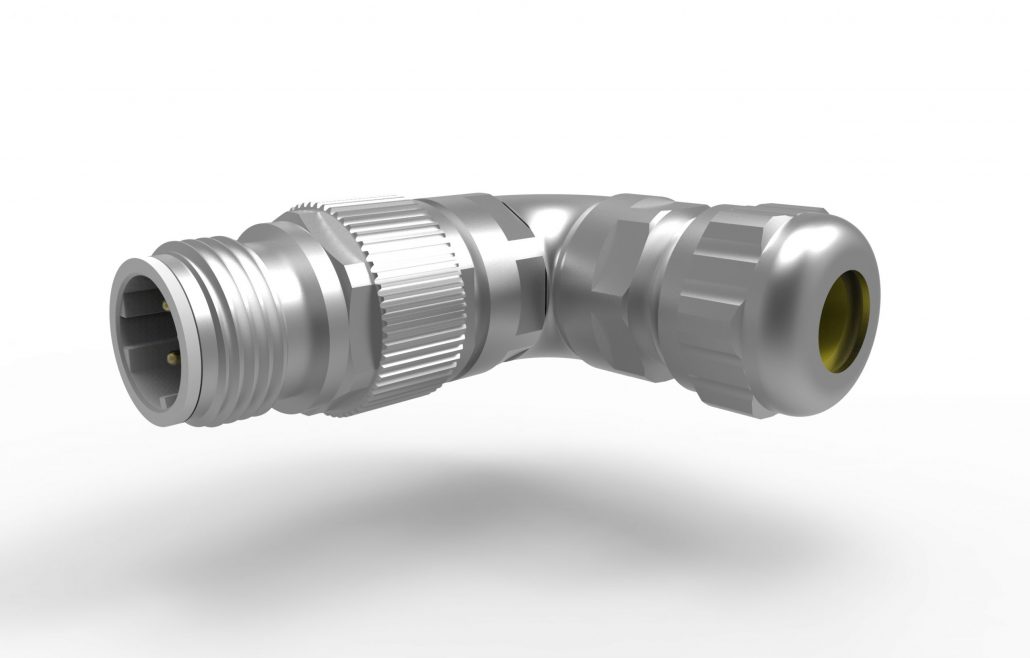

M12 D Industrial Ethernet 90° Connector  Cable gland

Fully shielded and wide cable clamp range  4 – 9 mm





Technical Data



Steckverbinder/Connector

M12 gemäß/acc. to IEC 61076-2-101

Codierungs-Polzahl/Coding-Pin number

A-5

Strombelastbarkeit/Current rating

4 A

Bemessungsspannung/Nominal voltage

50 V DC

Durchgangswiderstand/Contact resistance

≤ 5 mΩ

Isolationswiderstand/Insulation resistance

≥ 100 MΩ

Anschlussart Einzelader/Termination single wire

Gedrehte Crimp snap-in Kontakte vergoldet/Machined crimp snap-in contacts gold plated

Aderquerschnitte/Wire sizes

AWG 18–28

Kabelklemmbereich/Cable clamp range

4–9 mm

Schutzart/IP protection

IP 67 (nur schraubverriegelt/only screw-locked)

Temperaturbereich/Temperature range

–40° C bis/to +85° C

Mechanische Lebensdauer/Mechanical lifetime

≥ 200 Steckzyklen/mating cycles

Materialien/Materials



Gehäuse/Housing

Cu-Legierung vernickelt/Cu alloy Ni plated

Isolierkörper +Kontakthalter/Insulator + contact holder

Thermoplast I2/F2 gemäß NFF-16-101/102 und HL3 gemäß R22/R23 EN 45545-2

I2/F2 according to NFF-16-101/102 and HL3 according to R22/R23 EN 45545-2

KontaktelContacts

Cu-Legierung vergoldet/Cu alloy gold plated

Dichtungen/Sealings

Elastomer

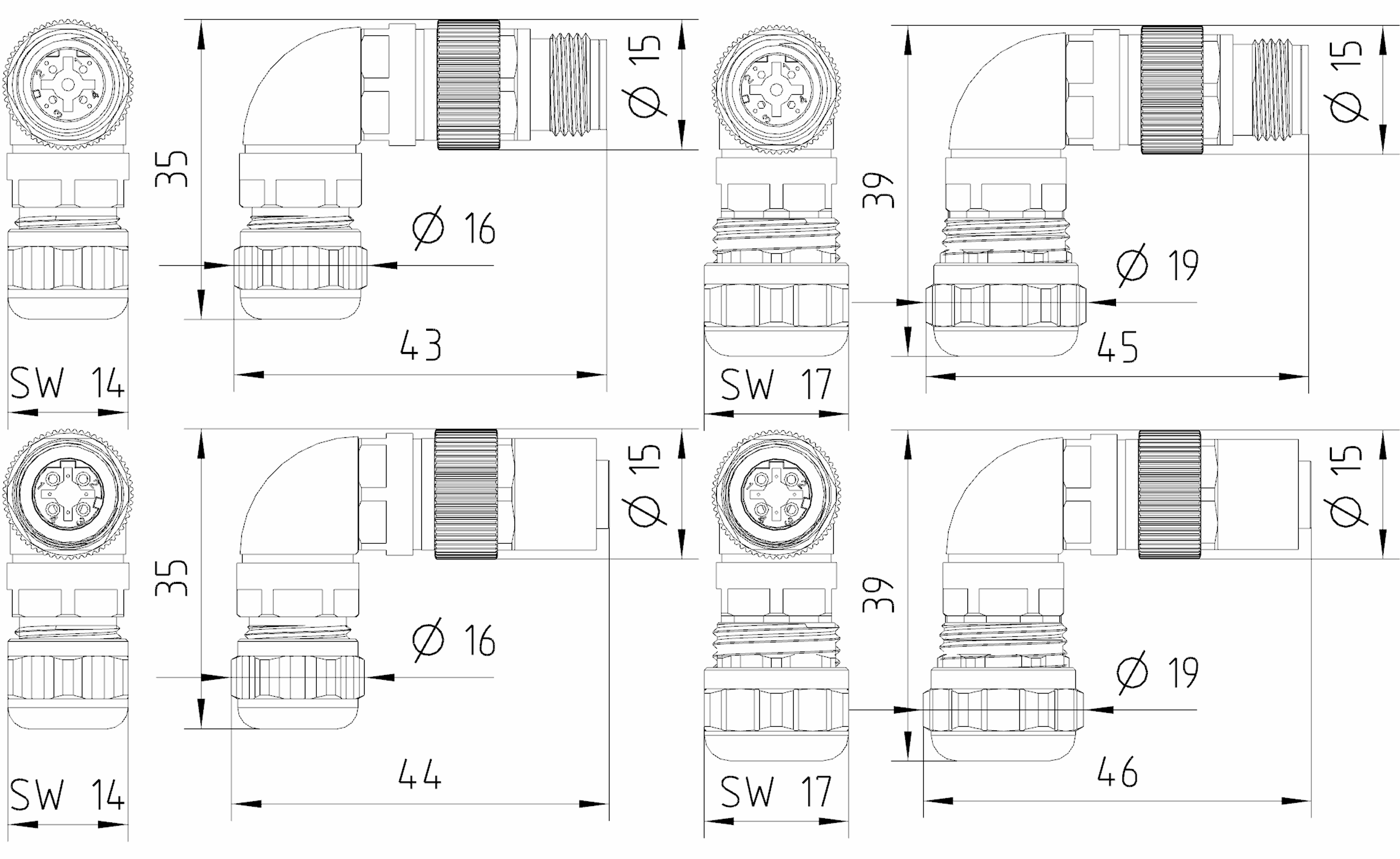

Dimensions
