Bus connector axial Plug & Play M12

Axial CAN-Bus Bus connector Plug & Play M12

The easy and reliable connection and the interference-free data transmission are secured by plug & play bus connectors with two M12 cable connections. The bus connection has 100 % tested bus connectors and manufactured M12 CAN-Bus lines. Easy plug-in of the new Provertha bus connectors and plug-in of the M12 bus cables and the play of the CAN-Bus starts immediately. The 180° cable outlet of the axial shape allows the use in installation situations with two stacked interfaces.

Technical characteristics

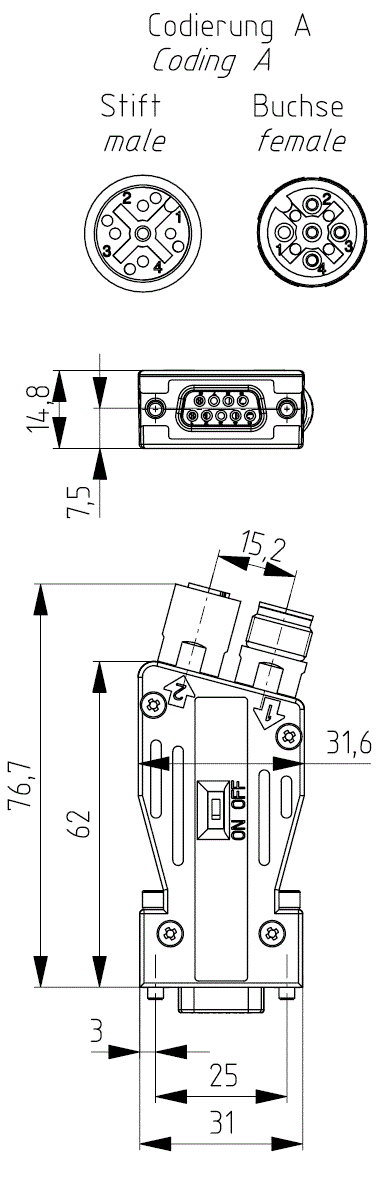

– Cable connection: 180°towards D-Sub plug direction

– Error-free CAN-Bus connection via A-coded M12 connectors for CN-Bus cable connection

– Reliable CAN-Bus quick connection in only a few seconds

– Easy installation without special knowledge

– Completely shielded die-cast housing for EMI/RFI safety with special shielding geometry at the housing

– Switch operable externally for activating the bus termination

– Switch ON/OFF position visible from the front

– Latching: Knurled screw UNC 4-40

– 100 % tested bus connectors for high reliability
