Awaiting product image

M12 B-coded Profibus with crimp flange

incl. VAT zzgl. Versandkosten

360° EMI/RFI M12 B Profibus Crimp CF

This product is currently out of stock and unavailable.

SKU: Bitte wählen Sie eine Variante / Please select a variant
  • Description
  • Technical Data
  • Dimensions

Description

M12 B-Code mit Crimpflansch für Profibus

Vibrationssicher mit Crimpflansch-/Crimphülsesystem



Der 360° EMI/RFI M12 Crimp Profibus in Schutzart IP67 erfüllt speziell die Anforderungen für den funktionssicheren Ethernet-Anschluss und die störsichere Datenübertragung z. B. in der Bahntechnik und bei Anwendungen mit Vibration wie z. B. bei Stanzautomaten.

  • Der vibrationssichere M12 Profibus Feldanschluss
  • Funktionssichere fehlerfreie Datenübertragung bei hohen Anforderungen
  • Hohe Sicherheit im Netzwerk mit gedrehten Crimpkontakten
  • Schirmung und Zugentlastung vibrationssicher mit Crimpflansch-System
  • 360° EMI/RFI Schirmung durch Crimpflansch- und Crimphülse-System
  • Kompakte Abmessungen für Anwendungen mit wenig Einbauraum
  • Vollmetallgehäuse schützt gegen Störungen und bei rauer Umgebung
  • M12-Verriegelung mit 6kt-Kombirändel für definiertes Anzugsmoment
  • Einfache Montage durch wenig Einzelteile

Technical Data



Steckverbinder

M12 gemäß IEC 61076-2-101, IP 67 (nur schraubverriegelt)

Codierung-Polzahl

B, 5-Polig

Bemessungssp./Strombelast.

50 V / 4 A

Anschlussart Einzelader

Gedrehte Crimp Snap-in-Kontakte

Aderquerschnitt

AWG 19-26

Temperaturbereich

–40° C bis +85° C

Schock und Vibrationssicherheit

DIN EN 61373 Kategorie 1, Klasse B

Gehäuse

Messing vernickelt

Isolierkörper +Kontakthalter

Thermoplast, HL3 gemäß R22/R23 EN 45545-2

Kontakte

Cu-Legierung, Oberfläche Ni/Au, ≥ 200 Steckzyklen

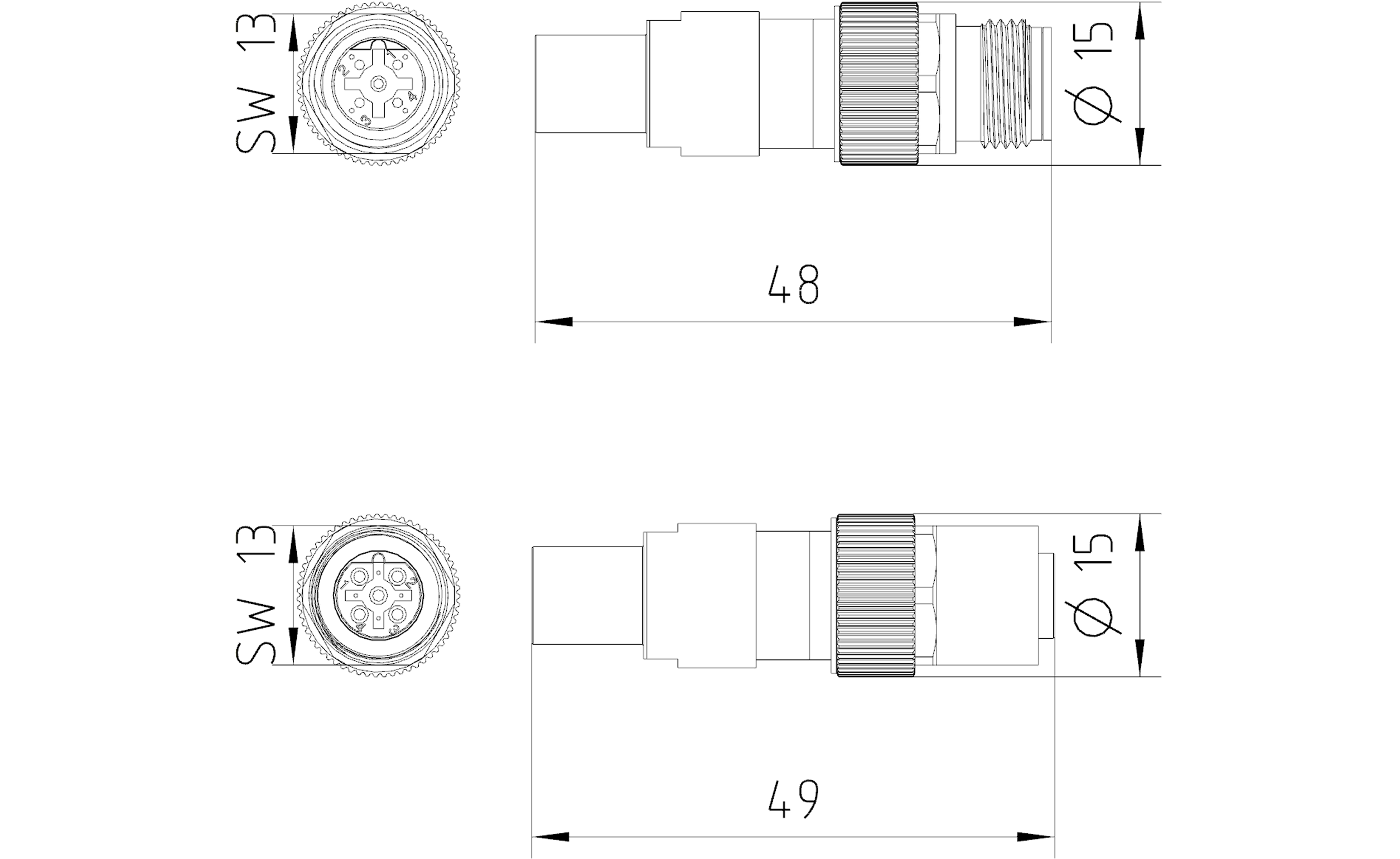

Dimensions
