M12 A-5 Crimp KV

incl. VAT zzgl. Versandkosten

M12 A5-coded connectors cable gland

Clear
SKU: N/A
  • Description
  • Technical Data
  • Dimensions

Description

M12 A-coded connectors cable gland

Fully shielded and wide cable clamp range 4 – 9 mm



The 5pole M12 KV with A-coding and 2 wide cable clamp ranges from 4 up to 6.5 mm and 5.5 up to 9 mm plus the fully shielded housing together with the shielded strain relief is the universal fail-safe solution for all common cables on the market like in CAN and DeviceNet applications.

Technical features

– Huge cable clamp range: 4 – 9mm 2 versions: 4 – 6.5mm and 5.5 up to 9 mm
– Contact versions for signal and power
  Signal: AWG 20-22 and AWG 22-24 / Power: AWG 18-20
– Male and female versions
– Coding: A coding 5-pole
– Effective 360° EMI/RFI shielding achieved by special full metal housing and by a solid fully shielded strain relief
– Easy assembly due to only a few single parts
– Compact dimensions with small diameter
– M12 Locking nut with combined knurled and hexagon combination shape for tightening with defined torque



Technical Data

Steckverbinder /Connector

M12 gemäß/ acc. to IEC 61076-2-101

Codierung -Polzahl / Coding-Pin number

A-5

Strombelastbarkeit/ Current rating

4 A

Bemessungaspannung / Nominal voltage

50 V DC

Durchgangswiderstand / Contact resistance

≤ 5 mΩ

Isolationswiderstand / Insulation resistance

≥ 100 MΩ

Anschlussart Einzelader / Termination single wire

Gedrehte Crimp snap-in Kontakte vergoldet/ Machined crimp snap-in contacts gold plated

Aderquerschnitte /Wire sizes

AWG 19 – 26

Kabelklemmbereich / Cable clamp range

4   – 9 mm

Schutzart / IP protection

IP 67 (nur schraub-verriegelt /only screw-locked)

Temperaturbereich / Temperature range

–40° C bis/to +85° C

Mechanische Lebensdauer / Mechanical lifetime

≥ 200 Steckzyklen / mating cycles

Materialien/Materials



Gehäuse / Housing

Cu-Legierung vernickelt / Cu alloy Ni plated

Isolierkörper +Kontakthalter/ Insulator + contact holder

Thermoplast I2/F2 gemäß NFF-16-101/102 und HL3 gemäß R22/R23 EN 45545-2

I2/F2 according to NFF-16-101/102 and HL3 according to R22/R23 EN 45545-2

Kontakte l Contacts

Cu-Legierung vergoldet / Cu alloy gold plated

Dichtungen/Sealings

Elastomer

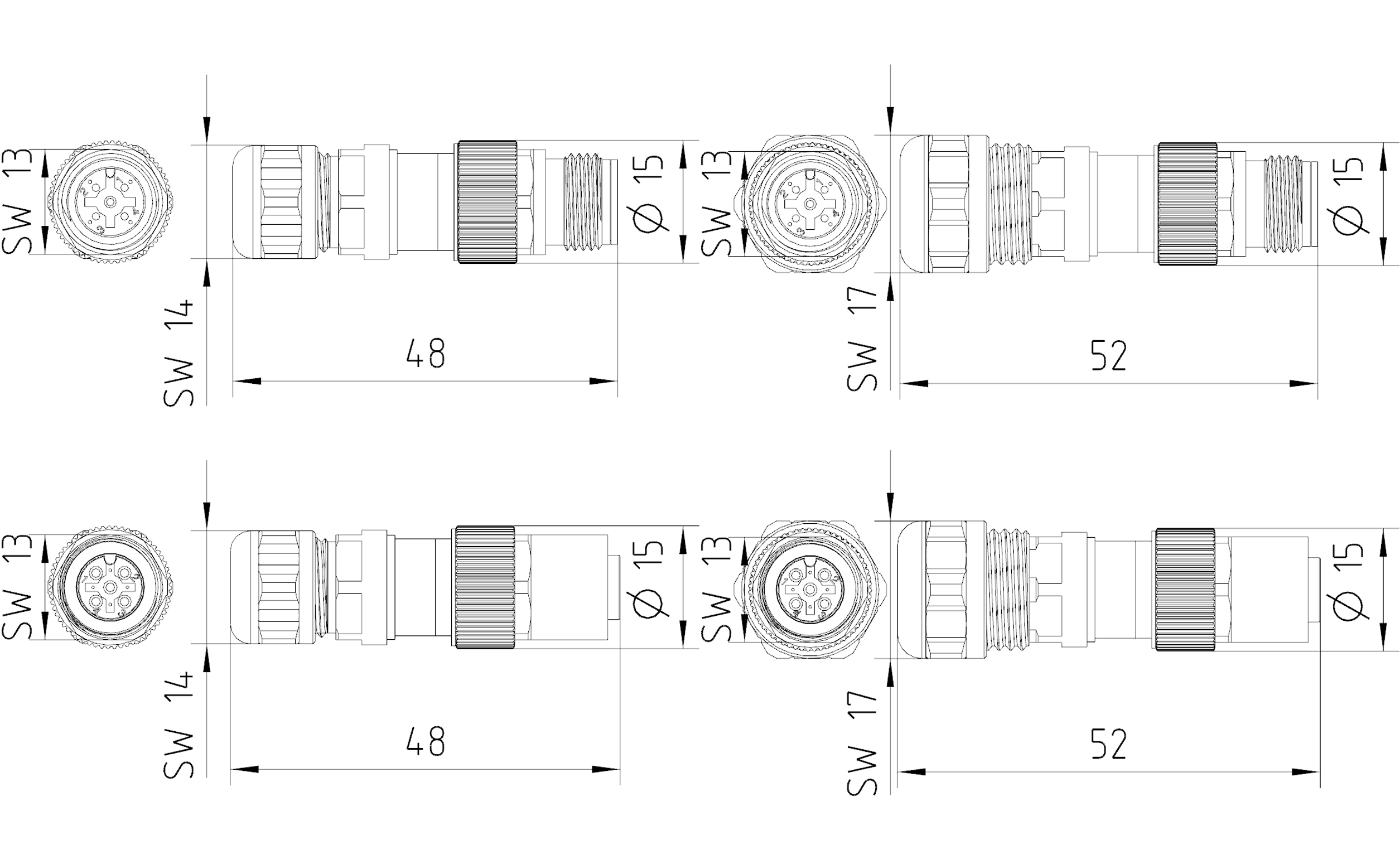

Dimensions
