M12 Adapter D-code Male to X-code Female

incl. VAT zzgl. Versandkosten

M12 Male to M12 Female

SKU: 42-300169 Categories: D-Code, M12 X-Code_
  • Description
  • Technical Data
  • Dimensions
  • Downloads

Description

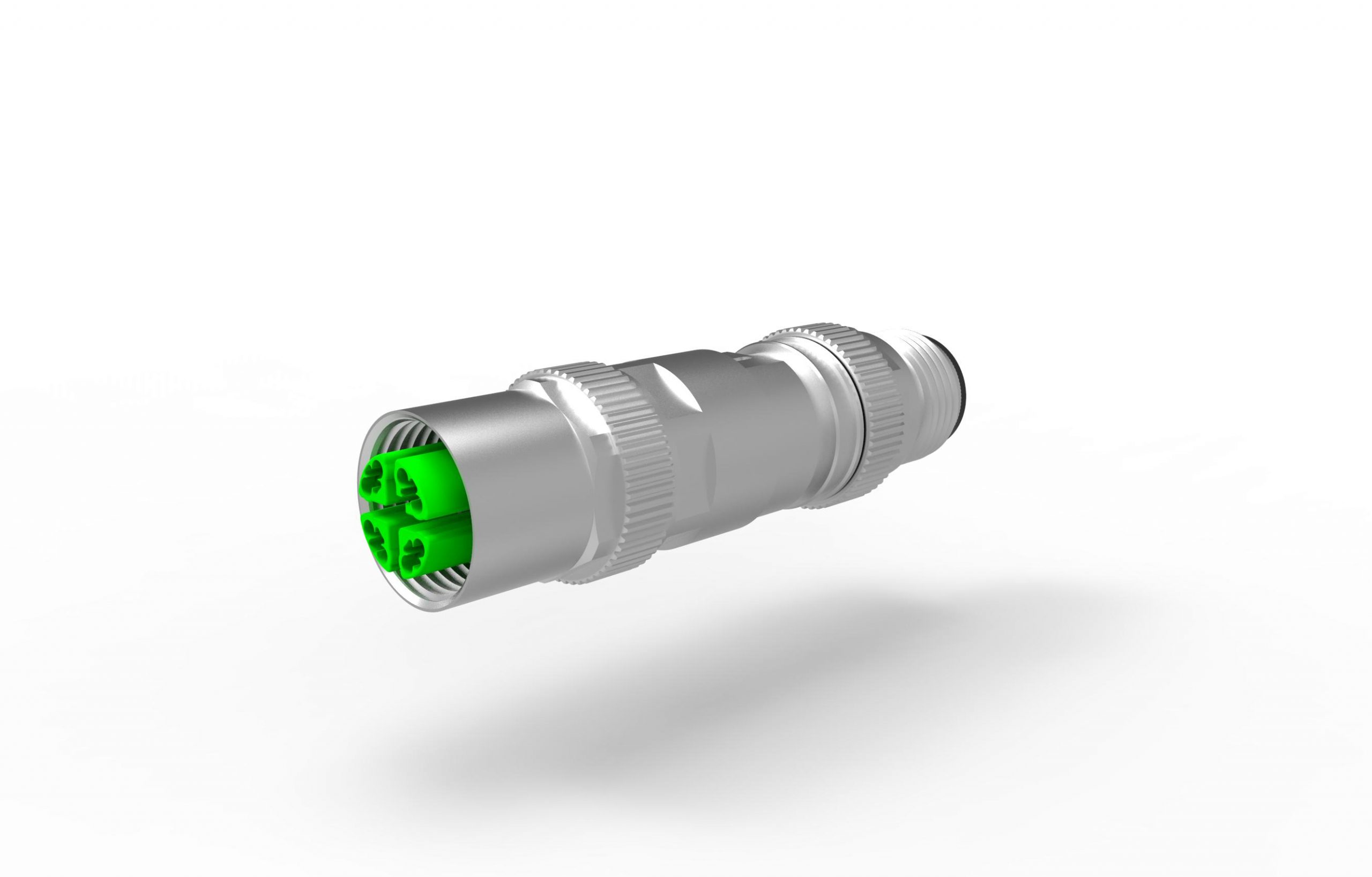

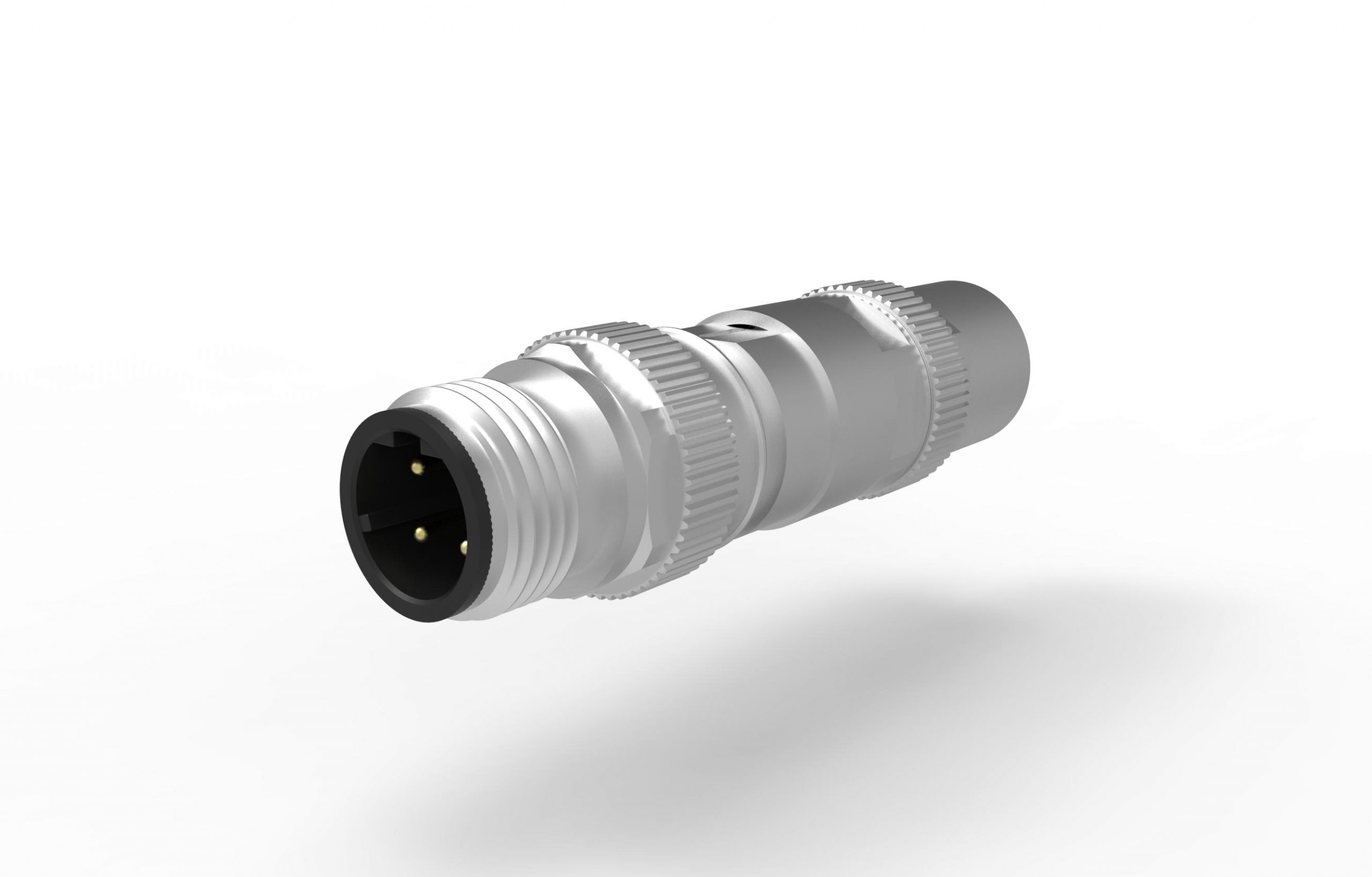

M12 Adaptor Male D-Code to Female X-code

The M12 Adapter allows 100Mbit(Cat5/5e) devices to be connected with Gigabit-cabling(Cat6A) systems. Ethernet capable devices, which need no Gbit Ethernet, normally are equipped with M12 D-code connectors. But new installed Ethernet cablings are already based on X-code technique (4 pairs). The Provertha adaptor is combining both to work together via plug&play without further installation expenses.

Technical features

– Compact dimensions, small outer diameter
– Male: M12 D-code / Female: M12 X-code
– Effective shielding achieved by full metal housing
– M12 Locking nut with combi knurl
– hex contour for torque wrench, see accessories



Technical Data


Technische Daten / Technical data



Steckverbinder / Connector

M12 gemäß / acc. to IEC 61076-2-109 + IEC 61076-2-101

Typ-Kodierung-Polzahl / Gender-Coding-No of pins

Stift D-4 auf Buchse X-8 / Male D-4 to Female-X-8

Strombelastbarkeit/ Current rating

0,5 A

Bemessungsspannung / Nominal voltage

48 V

Durchgangswiderstand / Contact resistance

≤ 10 mΩ

Isolationswiderstand / Insulation resistance

≥ 100 MΩ

Überspannungskategorie/ Overvoltage category

III

Verschmutzungsgrad / Pollution degree

3

Übertragungsgeschwindigkeit / Data transmission rate

100 Mbit

Schutzart / IP protection

IP 67 (im verriegelten Zustand / in locked condition)

Temperaturbereich / Temperature range

–40° C bis/to +105° C

Mechanische Lebensdauer / Mechanical lifetime

≥ 250 Steckzyklen / mating cycles

Verriegelung D-kod. Seite A / Locking screw D-code side A

drehbar/turnable

Verriegelung X-kod. Seite B / Locking screw X-code side B

nicht drehbar / not turnable

Drehmoment / torque force

max. 0,6 Nm

Materialien / Materials



Gehäuse / Housing

Cu-Legierung vernickelt / Cu alloy Ni plated

Isolierkörper + Kontaktträger /
Insulation body + contact carrier

Thermoplast
I2/F2 gemäß NFF-16-101/102 und HL3 gemäß R22/R23 EN 45545-2

I2/F2 acc. to NFF-16-101/102 and HL3 acc. to R22/R23 EN 45545-2

Kontaktmaterial / Contact material

Cu-Legierung / Cu alloy

Kontaktoberfläche /Contact plating

Ni/Au

Dichtungen / Sealings

Elastomer

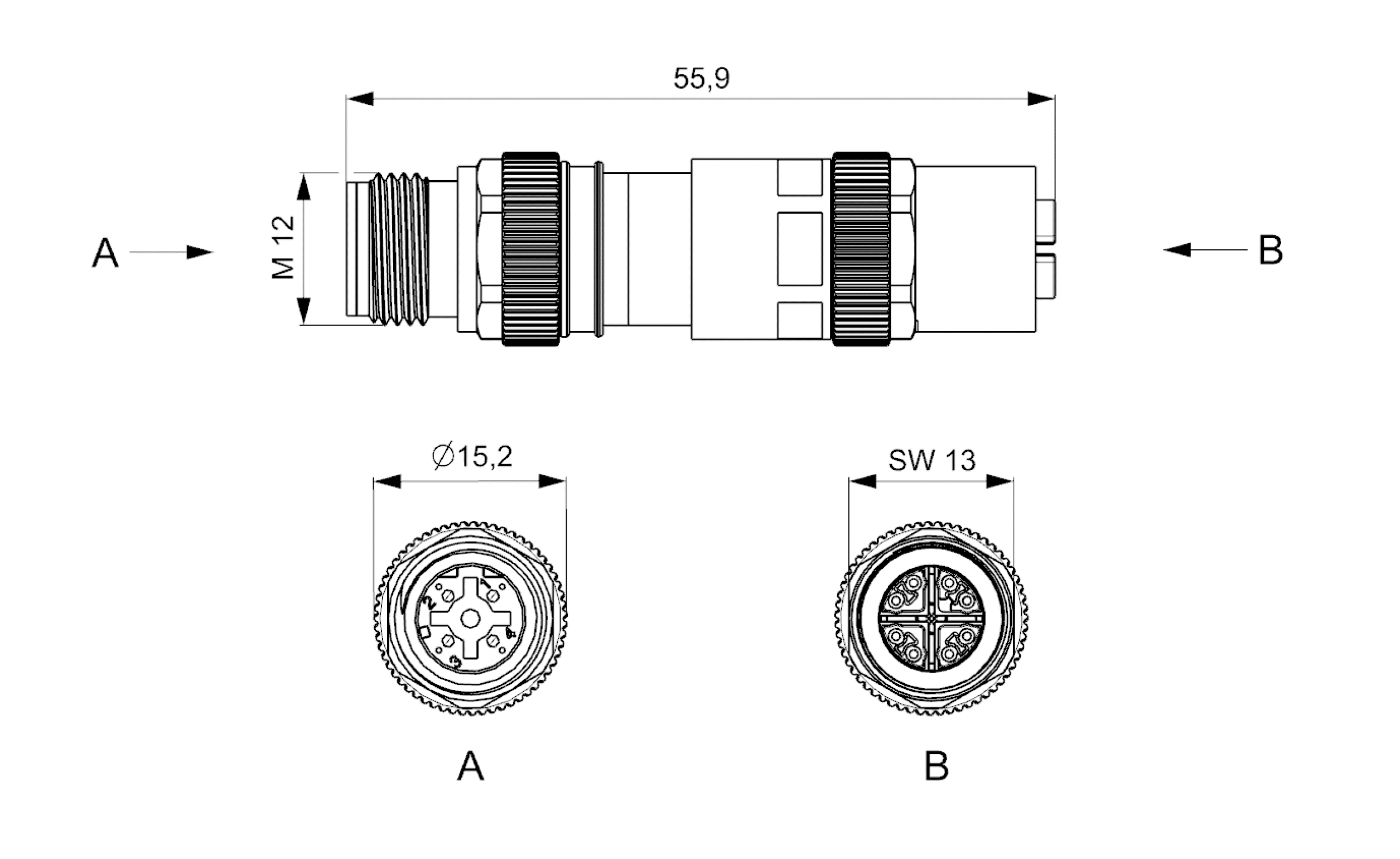

Dimensions

Downloads

42-300169 Pin Assignment

42-300169 Datasheet
