M12 Mini X-Code KV

incl. VAT zzgl. Versandkosten

Clear
SKU: N/A Category: M12 X-Code_
  • Description
  • Technical Data
  • Dimensions

Description

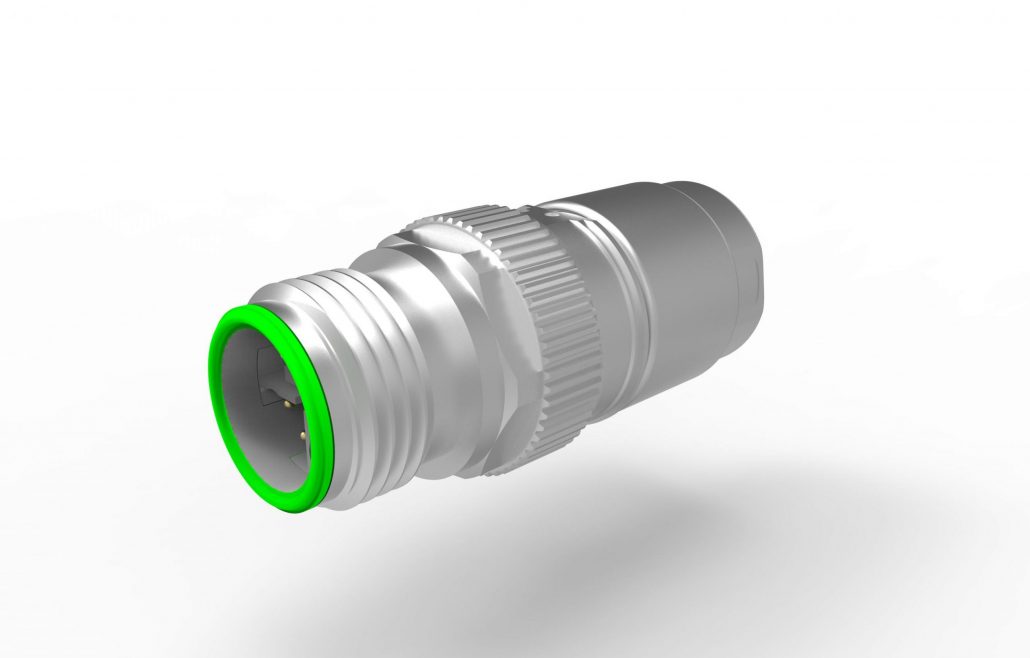

M12 Mini X 10GB Ethernet connector cable gland

Fully shielded and wide cable clamp range 4 – 9 mm

  •      The most compact, reliable M12 10 GBit Ethernet and 10 GBit Profinet field connection
  •      Functionally reliable, error-free data transmission with high requirements
  •      High security in the network with turned crimp contacts
  •      Safe strain relief and shield connection with cable gland
  •      Large cable clamping range of 4 – 9 mm
  •      Compact dimensions for applications with little installation space
  •      Full metal housing protects against interference and in harsh environments
  •      M12 locking with hexagonal combination knurl for defined tightening torque
  •      Simple assembly with few individual parts
  •      Certified plastics according to EN 45545-2 for railway applications
  •      The crimp contacts for wire cross-sections AWG 18 – AWG 28 must be ordered separately
  •      Large packaging with PU 50 as loose individual parts in poly bags
  •      Item No. for VRE 50: Index: -050 according to article no., e.g. B. 42-300124-050

Technical Data

Connector

M12 acc. to IEC 61076-2-109

Coding-pin number

X-8

Current carrying capacity

0,5 A

Rated voltage

48 V DC

Contact resistance

≤ 5 mΩ

Insulation resistance

≥ 100 MΩ

Degree of polution

 3

Category

Cat 6

Connection type single wire

Machined crimp snap-in contacts gold-plated

Wire sizes

AWG 18–28

Cable diameter

4–9 mm

Degree of protection

IP 67 (only screw-locked)

Temperaturbereich

–40° C up to +85° C

Mechanical lifetime

≥ 250 mating cycles

Housing

Cu alloy or Zn alloy Nickel-plated

Insulator body + contact holder

Thermoplast

I2/F2 acc. to NFF-16-101/102 and
HL3 acc. to R22/R23 EN 45545-2

Contacts

Cu alloy gold-plated

Seals

Elastomer



Dimensions
