High Power Contacts – solder pin 180°

incl. VAT zzgl. Versandkosten

S.60, Naming, Kategorie

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: Connector PCB-assembly
  • Description
  • Technical Data
  • Dimensions

Description

High power contacts solder pin 180°

Machined contacts



  • Machined precision contacts of Cu-alloy
  • Fully gold-plated with Ni barrier layer
  • Various surfaces for different lifetime requirements
  • Highest quality and lifetime due to defined contact zone
  • Current carrying capacity: 20 A and 40 A

Technical Data



Electrical and mechanical numbers



Operating current

20 A/40 A

Contact resistance

≤ 10 m Ω

Isolation resistance

10 G Ω

Temperature range

-55° C to +125° C

Materials



Contacts

Ms and Cu alloy

Contact surface

Gold-plated with Ni barrier layer











HOCHSTROMKONTAKTE EINLÖTANSCHLUSS GERADE
NENNSTROM STIFT ART.-NR. BUCHSE ART-NR. ABMESSUNGEN
      Ø A Ø B R
20 A P5220G2 P6220G2 4.7 2.79 1
40 A P5240G2 P6240G2 5.75 3.69 0

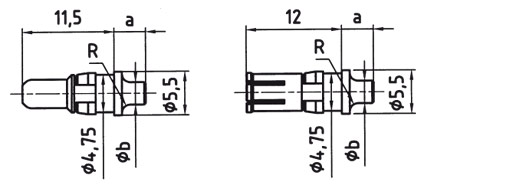

Dimensions
