Crimp sleeves

incl. VAT zzgl. Versandkosten

K.11; S.122

Clear
SKU: DxxxHxxxT Category: Accessories
  • Description
  • Technical Data
  • Dimensions
  • Downloads

Description

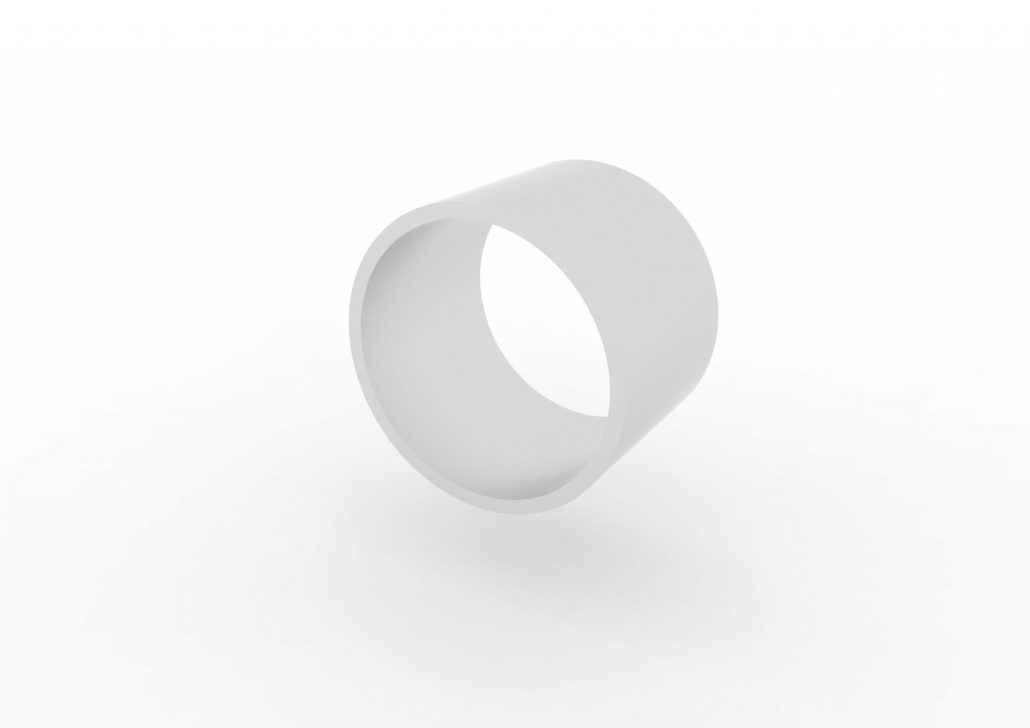

Crimp sleeves

Technical Data

Part No. D 3 in mm D 4 in mm Recommended crimp tool   = XXX page 123
D 050 H 060 T 5,0 6,0 050
D 055 H 065 T 5,5 6,5 055
D 060 H 070 T 6,0 7,0 060
D 065 H 075 T 6,5 7,5 065
D 070 H 080 T  7,0 8,0 070
D 075 H 085 T 7,5 8,5 075
D 080 H 090 T 8,0 9,0 080
D 085 H 095 T 8,5 9,5 085
D 090 H 100 T 9,0 10,0 090
D 095 H 105 T 9,5 10,5 095
D 100 H 110 T  10,0 11,0 100
D 105 H 115 T 10,5 11,5 105
D 110 H 120 T 11,0 12,0 110
D 115 H 125 T 11,5 12,5 115
D 120 H 130 T 12,0 13,0 120
D 125 H 135 T 12,5 13,5 125
D 130 H 140 T 13,0 14,0 130
D 137 H 150 T 13,7 15,0 135
D 140 H 150 T 14,0 15,0 140
D 145 H 155 T 14,5 15,5 145
D 160 H 170 T 16,0 17,0 160

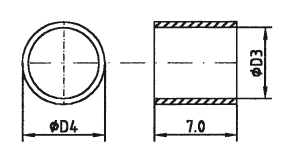

Dimensions

Downloads

Crimphülsen_DxxxHxxxT
