Awaiting product image

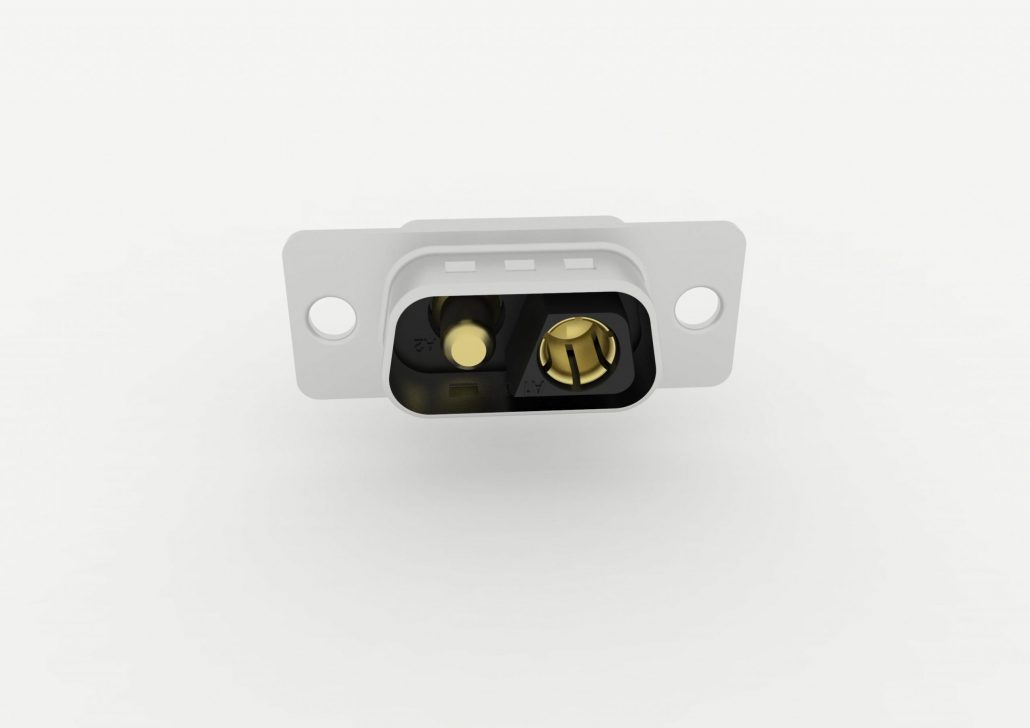

Mixed Layout solder pins 180°

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: Connector PCB-assembly
  • Description
  • Dimensions

Description

D-Sub Mixed Layout Connectors with straight solder pins

D-Sub Mixed Layout Connectors with straight signal contacts in turned version with high current carrying capacity

D-Sub Mixed Layout Connectors with pre-assembled straight signal contacts and pre-assembled special contacts with current carrying capacity of 20 A and 40 A

D-Sub Mixed Layout Connectors with pre-assembled straight signal contacts and not assembled special contacts

Special straight solder contacts with current carrying capacity of 20 A and 40 available

Dimensions



PDT2W2CP22G2B4-DS_02
