CAN-Bus M12 T-Splitter

incl. VAT zzgl. Versandkosten

S.30, Name, Kategorie

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

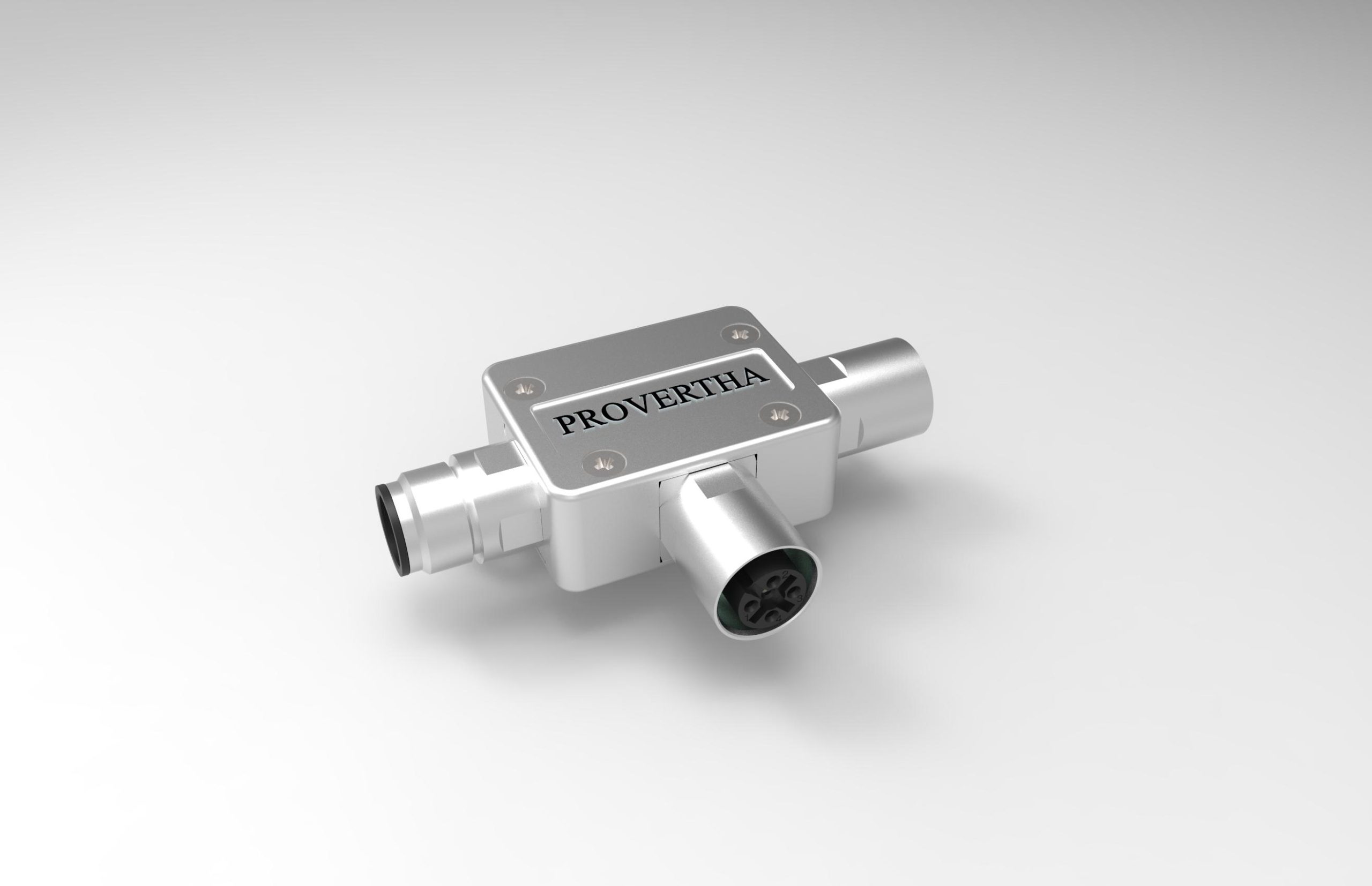

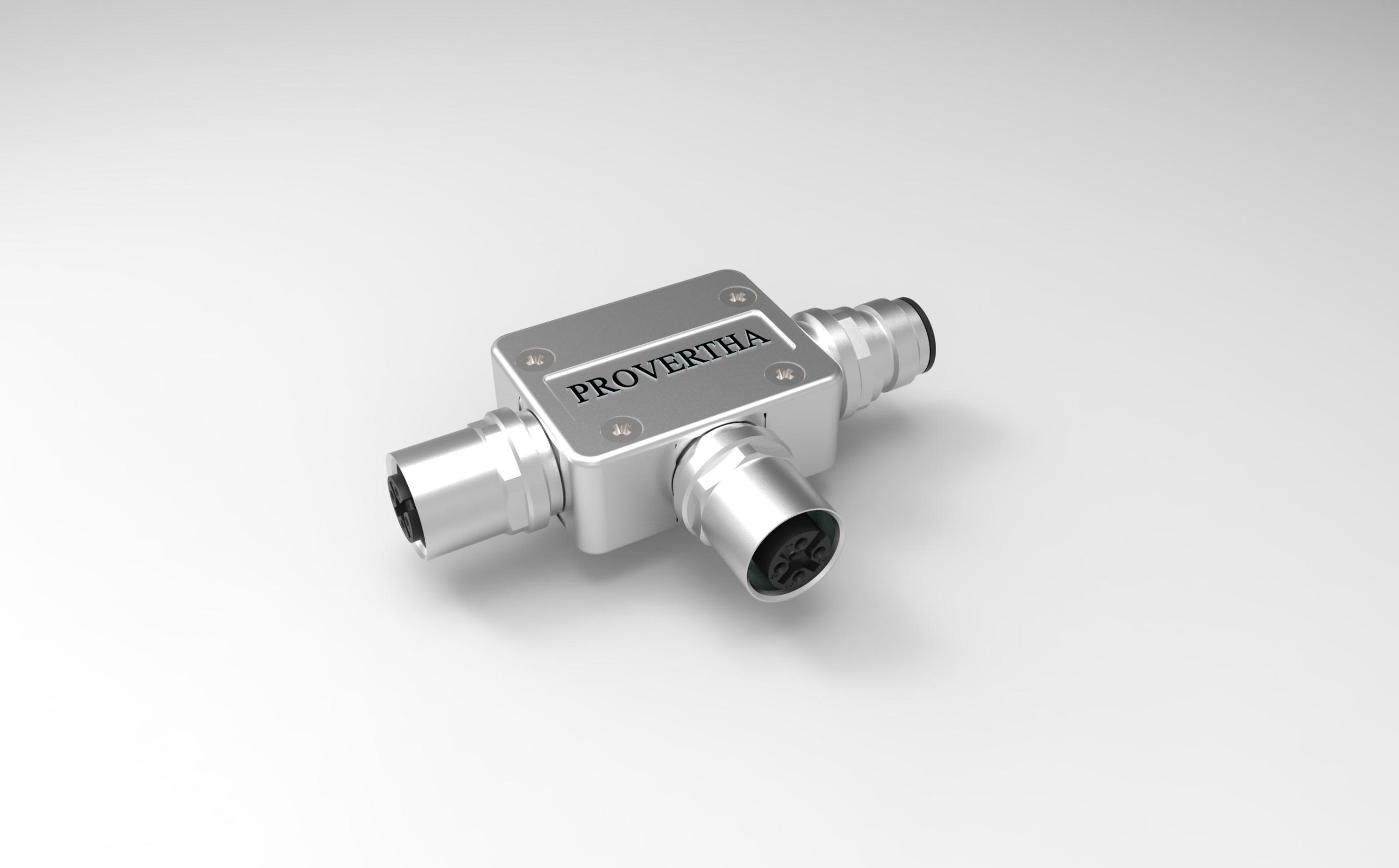

CAN M12 T-Splitter

360° Shielding and rough applications due to full metal housing

The fully shielded CAN bus T-distributors with solid full metal housing and protection
degree IP 67 are designed for applications with special EMC requirements and rough
environments. For wall mounting, the version with 2 fixing holes is available, and for direct connection
to CAN bus devices with M12 interface, the version with rotating M12 nut is the right solution.

Technical features

  • 360° EMI/RFI full metal housing
  • Protection degree: IP 67 (only screw-locked)
  • M12 A-Code: 5 poles
  • Pin assignment: Pin 1-5 connected
  • 2 versions:
    Wall mounting
    Direct connection on CAN bus M12 interface
  • Simple and safe wall mounting with 2 x M4 screws (mounting hole: 4.3 mm)
  • Different male and female connector assignments upon request

[{ oxcontent ident=VideokIqqxwiuino }]

Technical Data

Technische Daten/Technical Data



Steckverbinder/Connector 1 x M12 Stift/Male und/and 2 x M12 Buchse/Female
Pinbelegung/Pin assignment 1-5
Codierung/Coding A
Kontaktzahl/Number of contacts 5
Bemessungsstrom/Current rating 4 A
Betriebsspannung/Operation voltage 32 V DC
Schutzart/IP protection IP 67
Temperaturbereich/Temperature range –20° C bis/to +85° C
Mechanische Lebensdauer/Mechanical lifetime 200 Steckzyklen/mating cycles
Anzugsmoment/Torque
M12-Schraubverriegelung/M12 screw locking 0,8–1 Nm (max. 2 Nm)
Schlüsselweite/Wrench size
M12-Schraubverriegelung/M12 screw locking SW 13
Materialien/Materials
Gehäuse/Housing
Material/Material ZnAl- und Cu-Legierung/ ZnAl- and Cu-alloy
Oberfläche/Plating Ni über Cu/Ni over Cu
Isolierkörper/Insulator Thermoplast UL 94-V0
Kontakte/Contacts
Material/Material Cu-Legierung/Cu-alloy
Oberfläche/Plating Au über Ni/Au over Ni

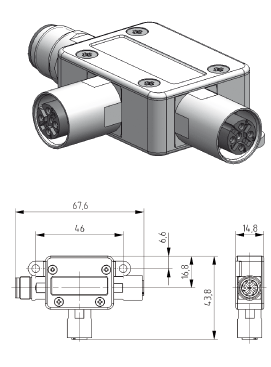

Dimensions
