77 Modular Hood System Plastic

incl. VAT zzgl. Versandkosten

S.96/97, Naming, Kategorie, 77

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: Plastic Hoods
  • Description
  • Technical Data
  • Dimensions
  • Downloads

Description

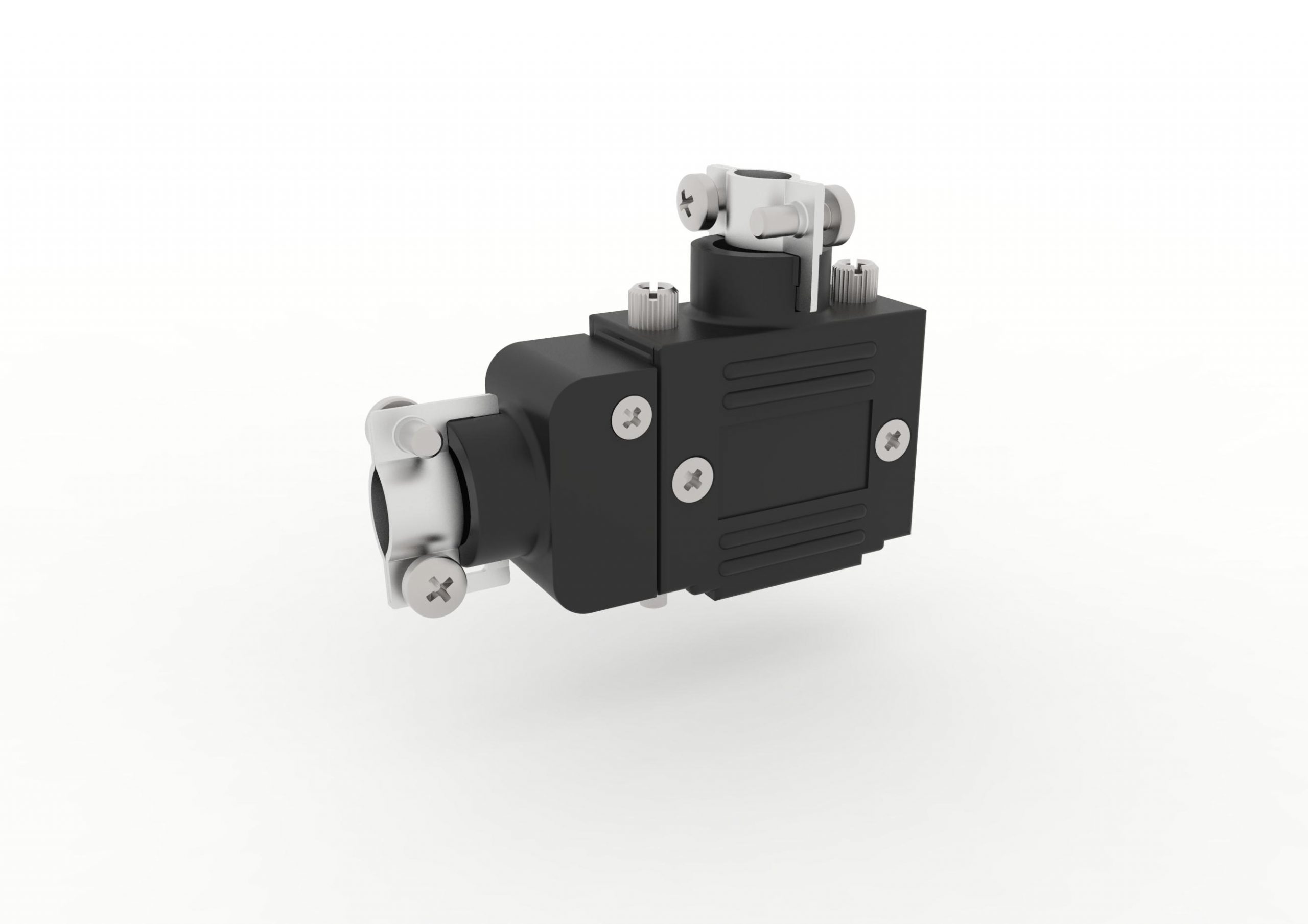

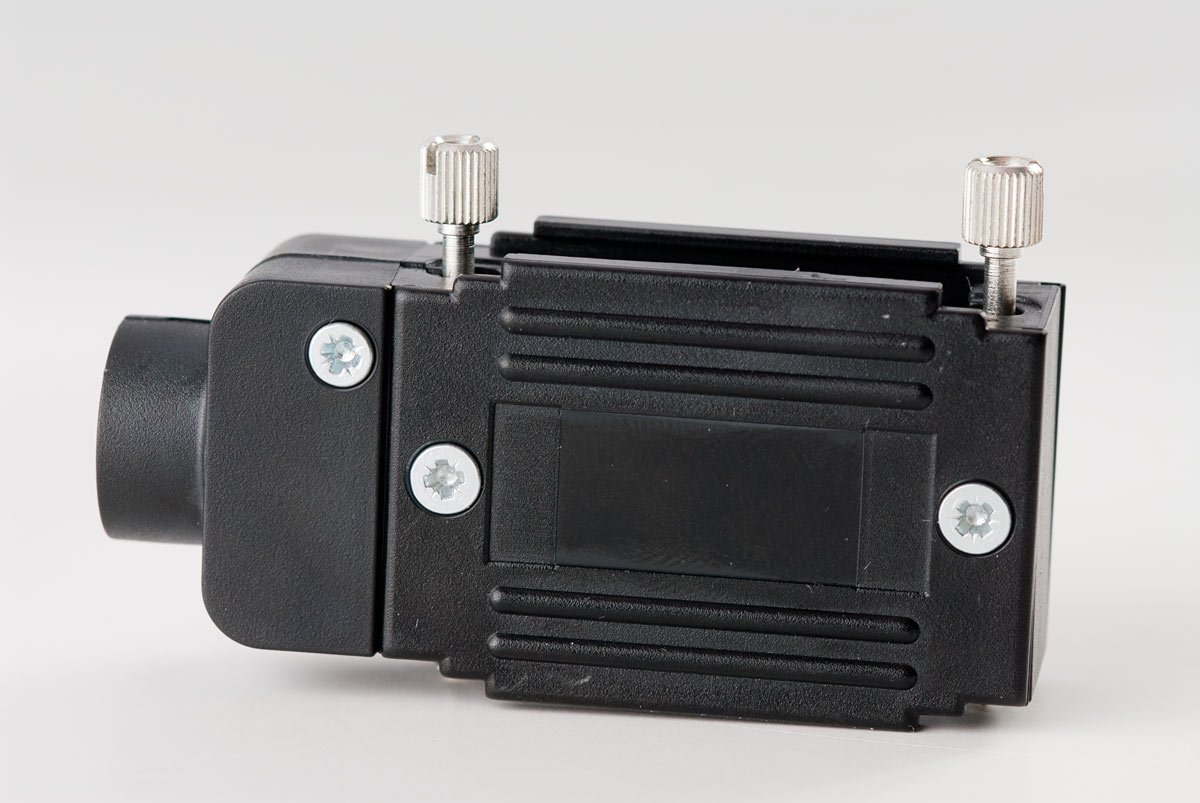

Modular Hood System (series 77)

  • Low height (16 mm)
  • Big cable clamp area (max. 10 mm)
  • Made from ABS quality plastic, flame-resistant according to UL 94 V-0
  • Excellent shielding efficency
  • UNC 4-40 knurled locking screw (head with internal threascrewdrver slit), (M3 upon request)
  • Packed as a set

To be used as:

  • Hood with up to 3 cable outlets
  • Adapter hood
  • Distributor for up to 4 cables
  • Dongle housing
  • Other versions on request

Technical Data

General
IP Rating: IP 20
Cable diameter: 5-11 mm
Temperature Range: -20°C bis +90°C
Tightening torque ( screws for cable clamp): max. 30 Ncm
Tightening torque (cover screws): max. 20 Ncm
Material
Hood: ABS UL 94-V0
Colour: Black

Dimensions

Downloads

  • Assembly Series 77 (77xx1B-Montage.pdf)
  • Variante A, Adapter, (77xxAB.pdf)
  • Variant 1, Adapter with 1 cable  exit, (77xx1B.pdf)
  • Variant 2, hood with 1 side cable exits, (77xx2B.pdf)
  • Variant 3, hood with 1 straight cable exit (77xx3B.pdf)
  • Variant 4, hood mit 2 side. cable exits, (77xx4B.pdf)
  • Variant 5, adapter hood with 2 cable exits, (77xx5B.pdf)
  • Variant 6, dongel hood, (77xx6B.pdf)
  • Variant 7, hood with 3 cable exits, (77xx7Bpdf)
  • Variant 8, hood mit 2 cable exits, (77xx8B.pdf)
  • Provertha plastic hoods comon data sheet (D-Sub-PH-D.pdf
