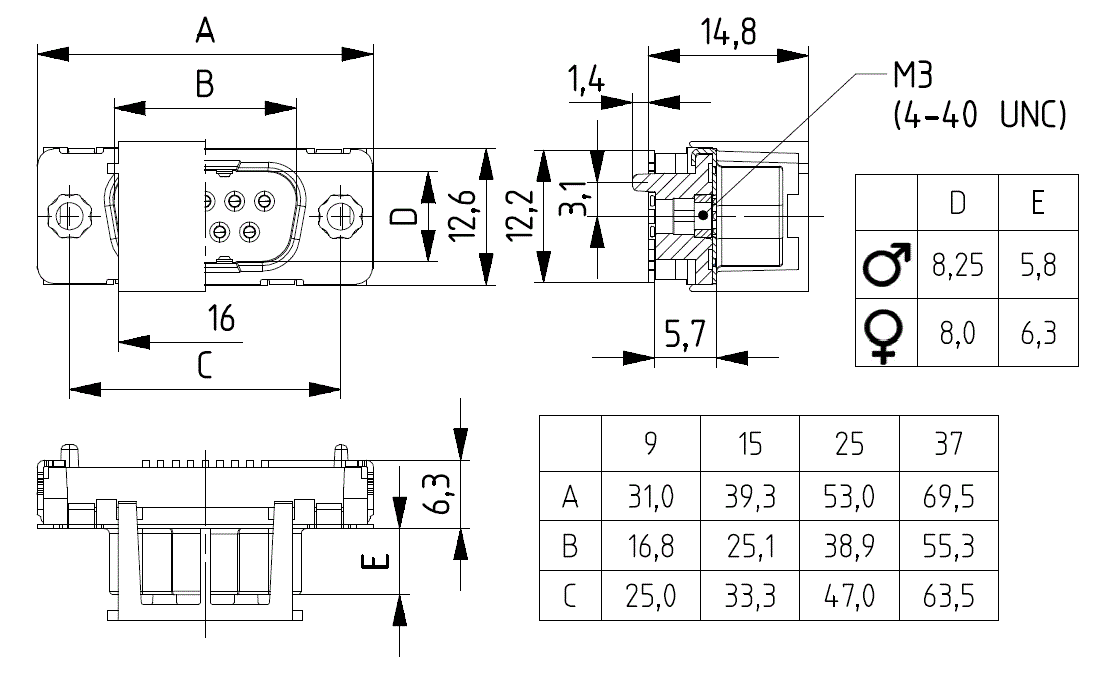

– Design according to IEC 802-3 (DIN 41 652)
– Eurostyle with installation height 3.6 mm
– Angled THR (Thru Hole Reflow) connection
– Design suitable for all common SMT soldering processes such as
SMT Reflow and vapor phase

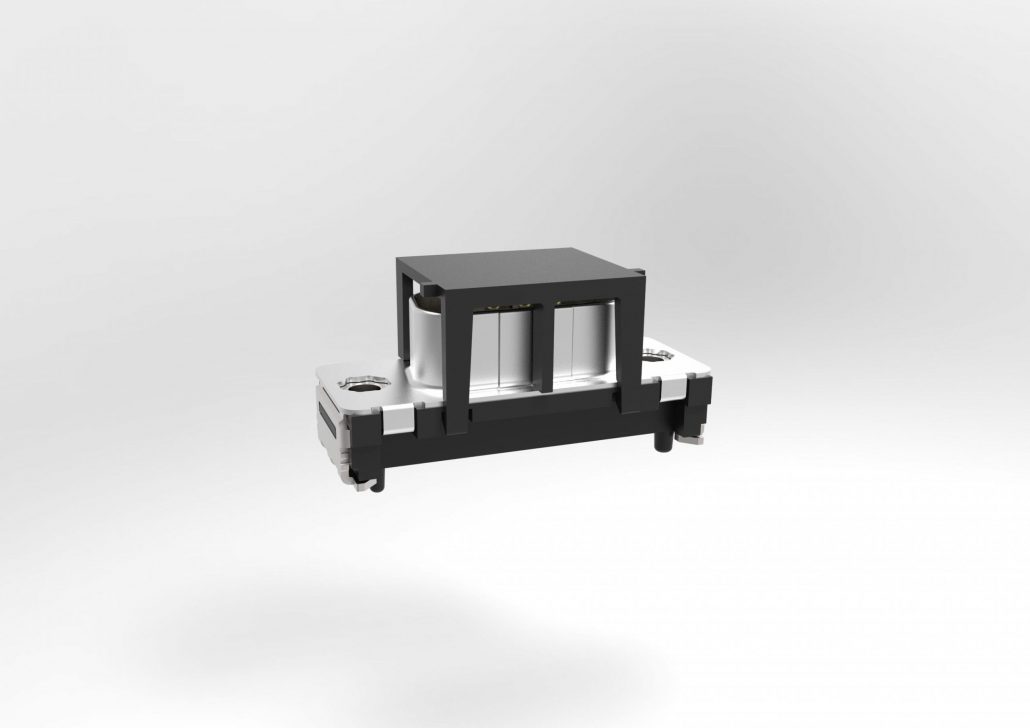

– Vacuum pick-up cap pre-equipped for automatic pick & place
– Thread UNC 4-40 or M3
– Types of pin and socket
– Pole number: 9/15/15/37
– UL approval
| Current rating | 3,5 A |
| R Contact/R Insulation | ≤ 25 mΩ / ≥ 5 GΩ |
| Test voltage | 1 KV / AC |
| Temperature range | -55° C bis +125° C |
