TMC D-Sub Pressfit 180 ° High threaded bolt

incl. VAT zzgl. Versandkosten

Clear
SKU: N/A Category: Uncategorised
  • Description
  • Technical Data
  • Dimensions

Description

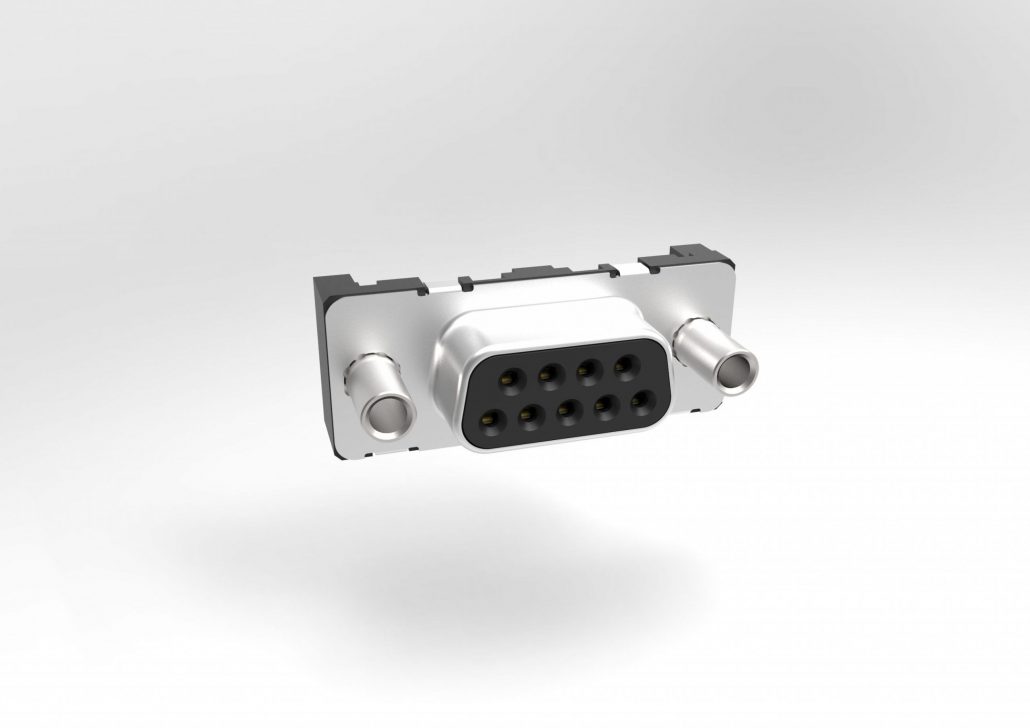

TMC D-Sub Pressfit 180 ° High threaded bolt

Installation height 9.0 mm


Technical features

– Design according to IEC 802-3 (DIN 41 652)
– High with installation height 9.0 mm
– Straight pressfit connection
– Certified elastic pressfit zone
– Strain relief and grounding clip with pressfit connection
– Pressfit Clip absorbs forces when inserting and pulling
– Thread UNC 4-40 or M3
– Types of pin and socket
– Pole number: 9/15/25/37
– UL approval
– Tray packaging

Technical Data

Current rating 3,5 A
R Contact /R Insulation ≤ 25 mΩ / ≥ 5 GΩ
Test voltage 1 KV / AC
Temperature range -55° C bis +125° C

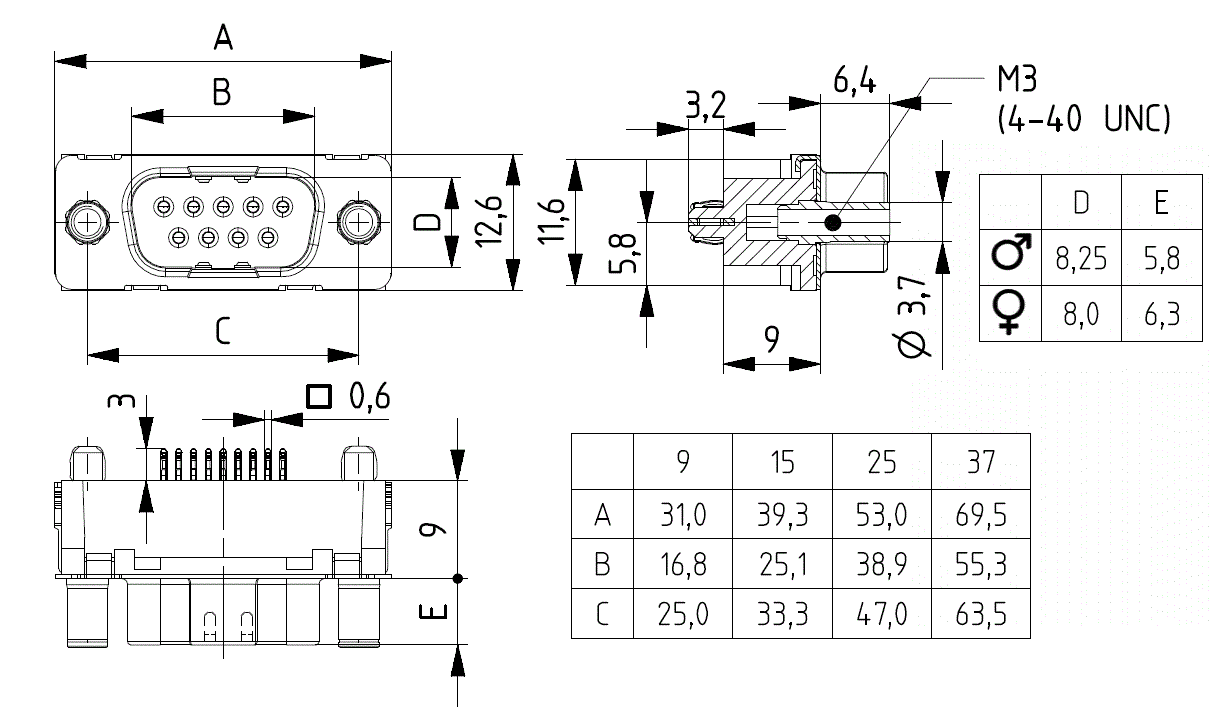

Dimensions

194901-DS
