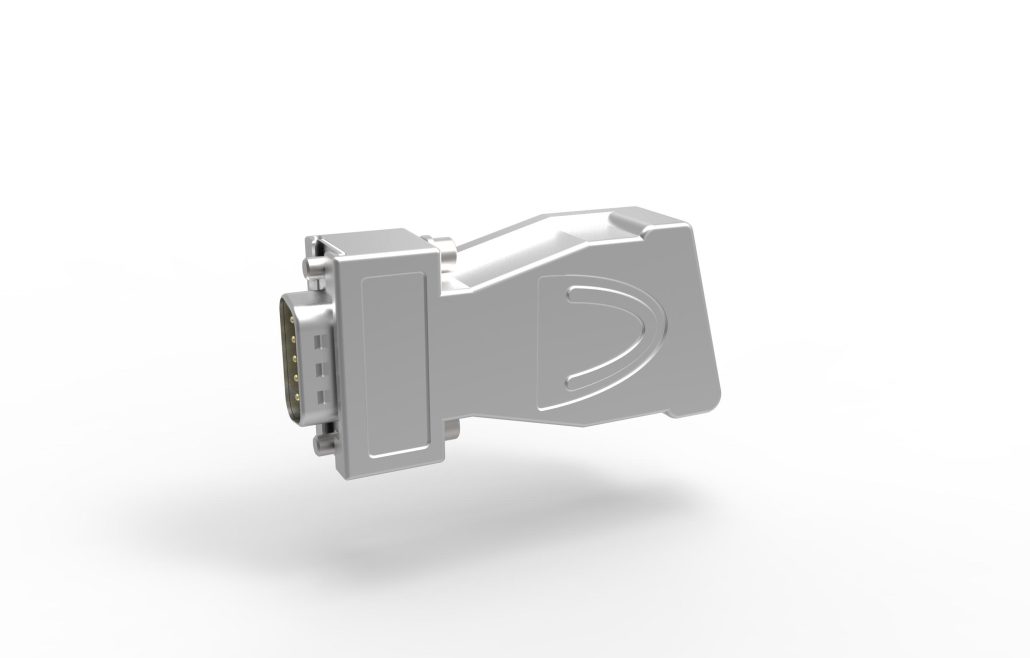

MVB/WTB Bus connector Axial

incl. VAT zzgl. Versandkosten

SKU: N/A Category: Field Bus
  • Description
  • Technical Data
  • Dimensions

Description

Fully shielded MVB / WTB axial bus connector

Crimp flange / crimp sleeve for extremely high requirements



The vibration-proof reliable field connection for MVB/WTB bus

Reliable fault-free data transmission in case of high requirements

Vibration-proof shield connection and strain relief with crimp flange/sleeve

Vibration-proof conductor connection with cage clamp

2 x cable outlet 180°

Zinc die-cast housing with high shielding due to special design

Zinc die-cast housing provides safe protection in rough environment

Complete sets including crimp flange / crimp sleeve and blind plug

Technical Data

Schnittstelle D-Sub 9-pole, male or femalee
Single wire stranded/ solid 0,14 – 0,75 mm2 (AWG 26 – 18)
Temperature range -20° C up to +70° C
Meachanical lifetime G1: 500 mating cycles or G2: 500 mating cycles

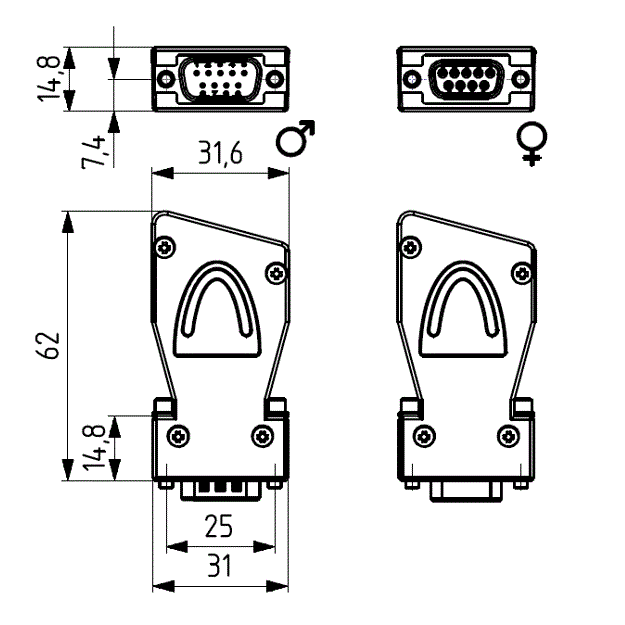

Dimensions

40-18142M11_DS_01
