M12 A-5 Crimp KV

incl. 19% VAT zzgl. Versandkosten

Category: M12 A-CODE, 4-5 PIN
  • Description
  • Technical Data
  • Downloads

Description

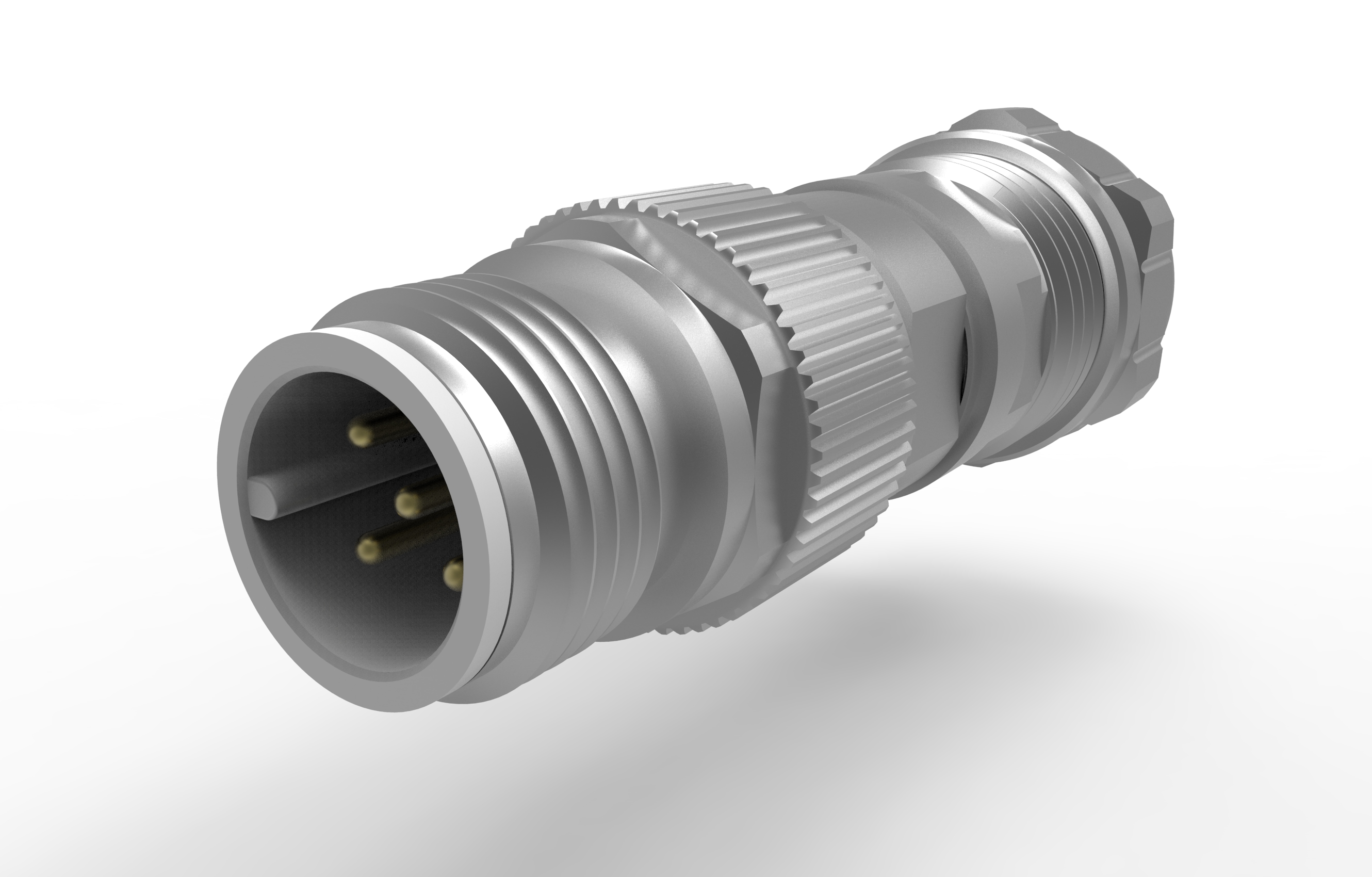

M12 A-5 Crimp KV

Fully shielded M12 A-5 Cable Connector Crimp KV

The 5-pin M12 KV with A-coding and 2 wide cable clamp ranges from 4 up to 6.5 mm and 5.5 up to 9 mm plus the fully shielded housing together with the shielded strain relief is the universal fail-safe solution for all common cables on the market like in CAN and DeviceNet applications.

Technical features

– Huge cable clamp range: 4–9mm
  2 versions: 4–6.5 mm and 5.5 up to 9 mm
– Contact versions for signal and power
  Signal: AWG 20-22 and AWG 22-24 / Power: AWG 18-20
– Male and female versions
– Coding: A coding 5-pin
– Effective 360° EMI/RFI shielding achieved by
  special full metal housing and by a solid fully shielded strain relief
– Easy assembly due to only a few single parts
– Compact dimensions with small diameter
– M12 Locking nut with combined knurled and hexagon
  shape for tightening with defined torque

Contacts and shield disc according to the cable type have to be ordered separately.







Technical Data

Technische Daten/Technical data



Steckverbinder/Connector

M12 gemäß/acc. to IEC 61076-2-101

Codierungs-Polzahl/Coding-Pin number

A-5

Strombelastbarkeit/Current rating

4 A

Bemessungsspannung/Nominal voltage

50 V DC

Durchgangswiderstand/Contact resistance

≤ 5 mΩ

Isolationswiderstand/Insulation resistance

≥ 100 MΩ

Anschlussart Einzelader/Termination single wire

Gedrehte Crimp Snap-in Kontakte vergoldet/
Machined crimp snap-in contacts gold plated

Aderquerschnitte/Wire sizes

AWG 19–26

Kabelklemmbereich/Cable clamp range

4–9 mm

Schutzart/IP protection

IP 67 (nur schraubverriegelt/only screw-locked)

Temperaturbereich/Temperature range

 –40° C bis/to +85° C

Mechanische Lebensdauer/Mechanical lifetime

≥ 200 Steckzyklen/mating cycles

Materialien/Materials



Gehäuse/Housing

Cu-Legierung vernickelt/Cu alloy Ni plated

Isolierkörper +Kontakthalter/Insulator + contact holder

Thermoplast
I2/F2 gemäß NFF-16-101/102 und HL3 gemäß R22/R23 EN 45545-2

I2/F2 according to NFF-16-101/102 and
HL3 according to R22/R23 EN 45545-2

Kontakte/Contacts

Cu-Legierung vergoldet/Cu alloy gold plated

Dichtungen/Sealings

Elastomer





Downloads
