D-Sub Connectors High Density Solder Straight Boardlock

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: D-Sub PCB connection
  • Description
  • Technical Data
  • Dimensions

Description

High Density Boardlock solder pins 180°

With machined contacts

  • Mounting clip and spacer with thread in one
  • In one operation, the connector is snapped in on the circuit board, fixed at the right distance and offers a UNC4-40 thread for mounting
  • Therefore a safe and rational circuit board assembly is possible
  • High-quality, precisely turned clip bolts
  • Available as Boardlock without bolts
  • Turned contacts are gold-plated selectively

Technical Data

§  Electrical and mechanical numbers



Operating current

3 A

Contact resistance

≤ 20 m Ω

Isolation resistance

≥ 5 G Ω

Test voltage

1 KV/AC

Creepage and clearance path

≥ 0,6 mm acc. to VDE 0110

Temperature range

-55° C to +125° C

Materials



Insulator

Thermoplast UL 94-V0

Contacts

Cu alloy gold-plated

Contact surface

Steel sheet surface-treated



Dimensions

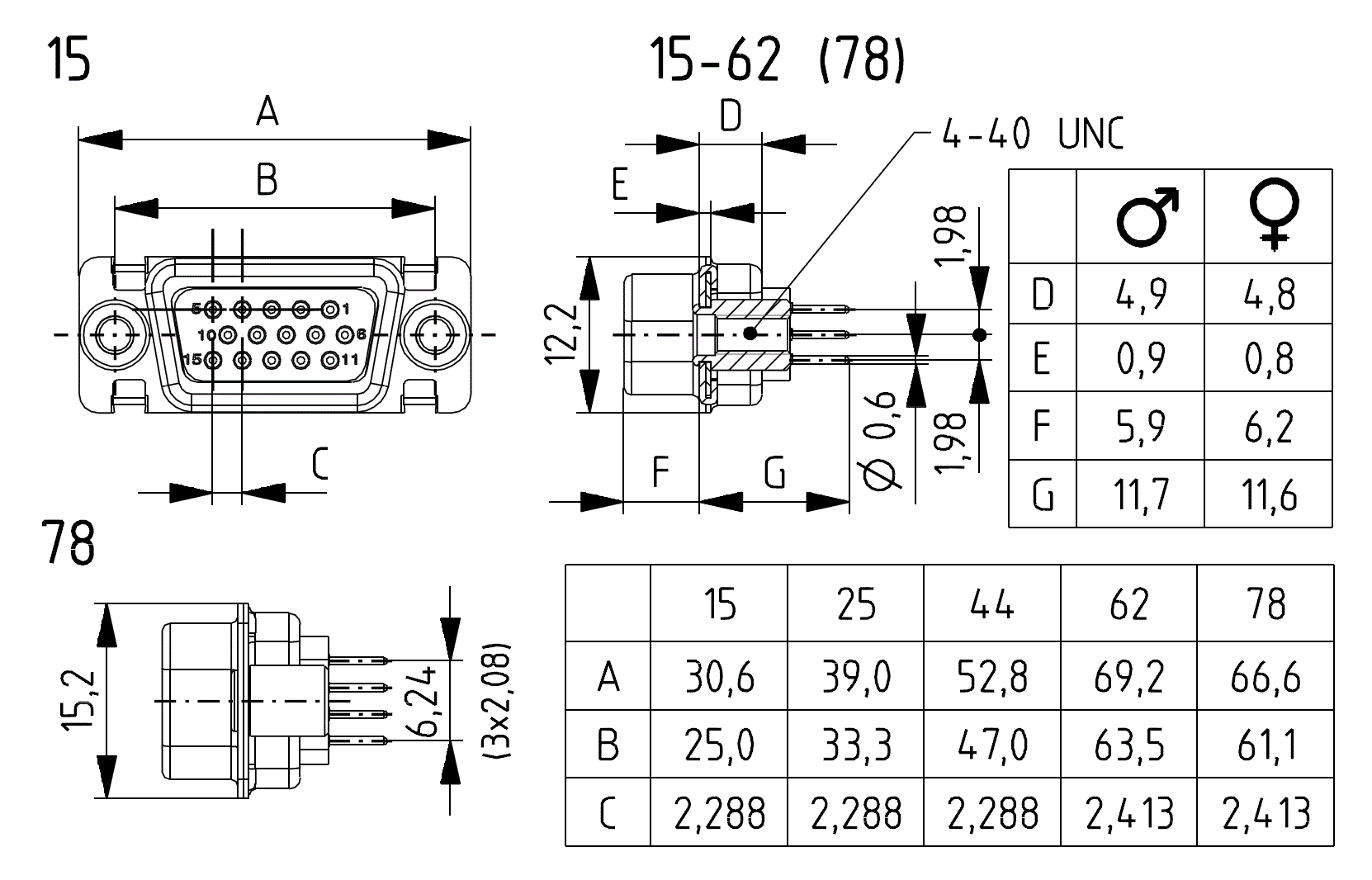

1-BL4HDT1552G2-DS_01
