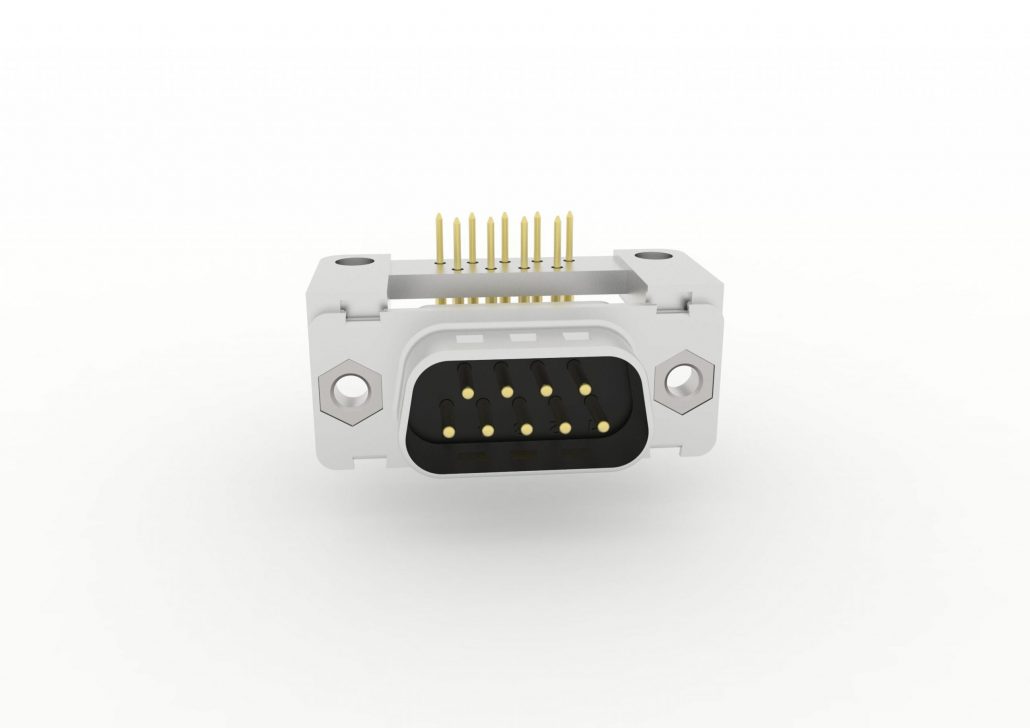

D-Sub Connectors Standard Soldered Connection Angled With Plastic Bracket and Clearance Hole

incl. VAT zzgl. Versandkosten

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: D-Sub PCB connection
  • Description
  • Technical Data
  • Dimensions

Description

Solder pins 90°

Machined contacts with plastic and grounding bracket

  • Snap-in PCB fastening and grounding in one part
  • Integrated smooth UNC 4-40 or M3 thread
  • For effective mounting
  • Plastic bracket with centering plate
  • For easy PCB assembly
  • Stamped contacts with selective plating

Technical Data

Current carrying capacity 7 A
R contact /R insulation ≤ 10mΩ / ≥ 10GΩ
Test voltage 1 KV / AC
Temperature range -55° C to +125° C

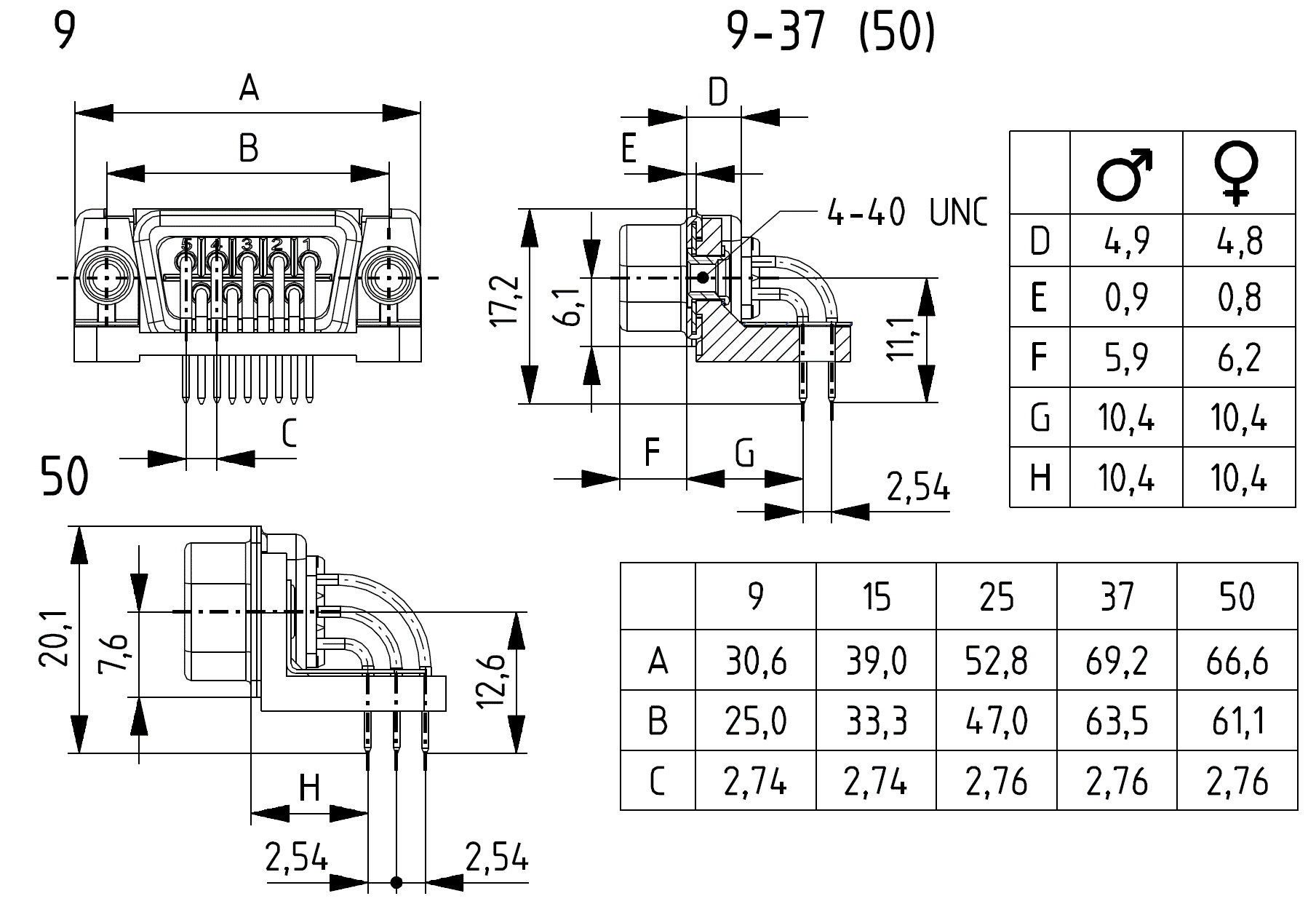

Dimensions

1-SDT0956G2E4B-DS_01
