Description
High Density solder cup 180°
with machined contacts
- Turned precision contacts
- Fully gold-plated with nickel barrier layer
- Highest quality and lifetime due to defined contact zone
- Anti-magnetical housing on request

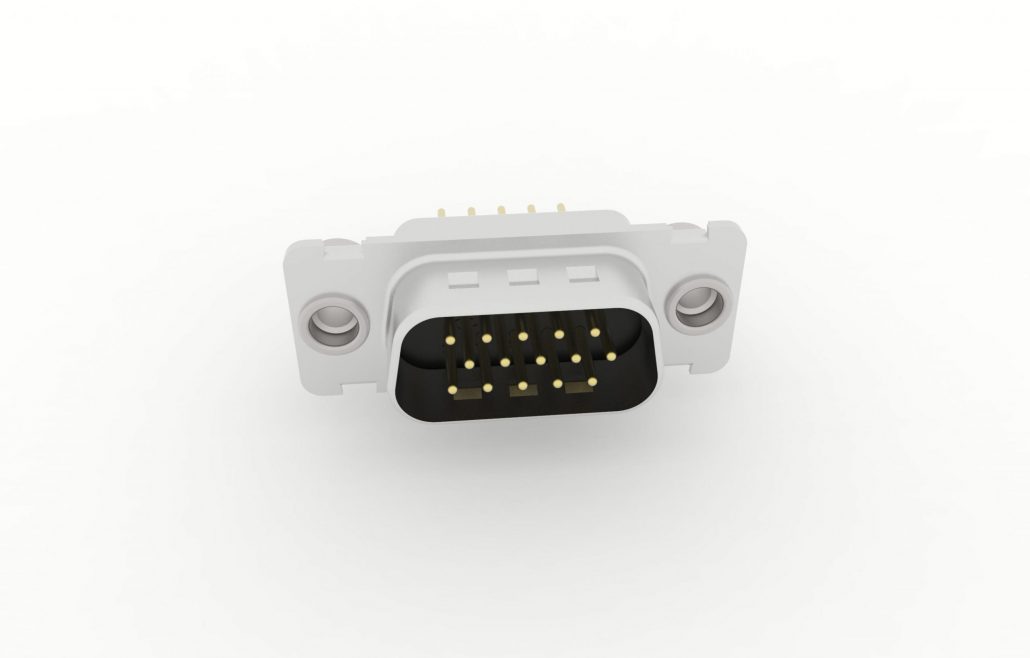

D-Sub Connectors High Density Solder Straight
incl. VAT zzgl. Versandkosten
Technical Data
|
Electrical and mechanical numbers |
|
|
Operating current |
3 A |
|
Contact resistance |
≤ 20 m Ω |
|
Isolation resistance |
≥ 5 G Ω |
|
Test voltage |
1 KV/AC |
|
Creepage and clearance path |
≥ 0,6 mm acc. to VDE 0110 |
|
Temperature range |
-55° C to +125° C |
|
Materials |
|
|
Contacts |
Cu alloy gold-plated |
|
Contact surface |
Gold-plated with Ni barrier layer |

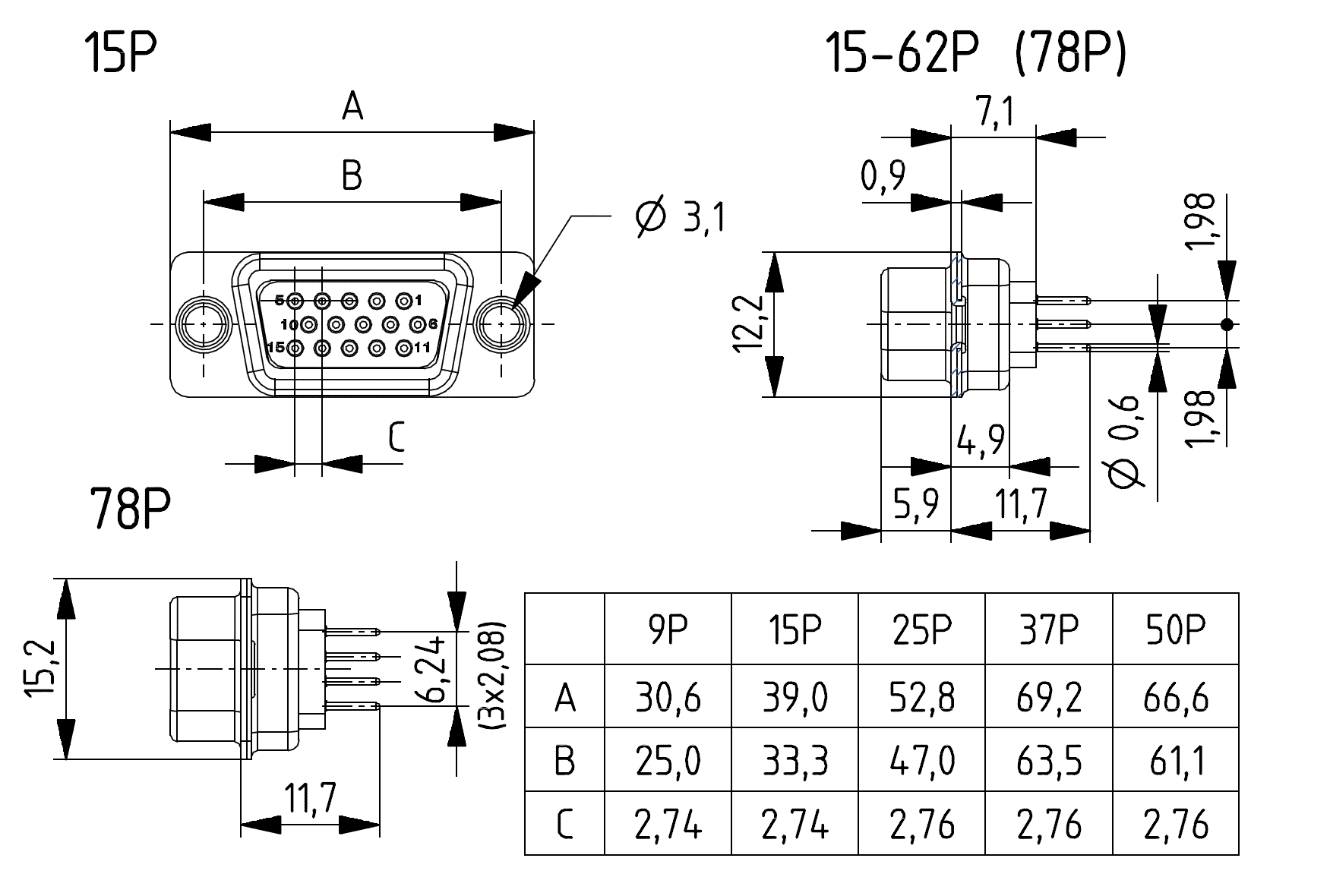

Dimensions
