CAN-Bus Special M12

incl. VAT zzgl. Versandkosten

CAN-Bus Special M12

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: CAN bus
  • Description
  • Technical Data
  • Dimensions

Description

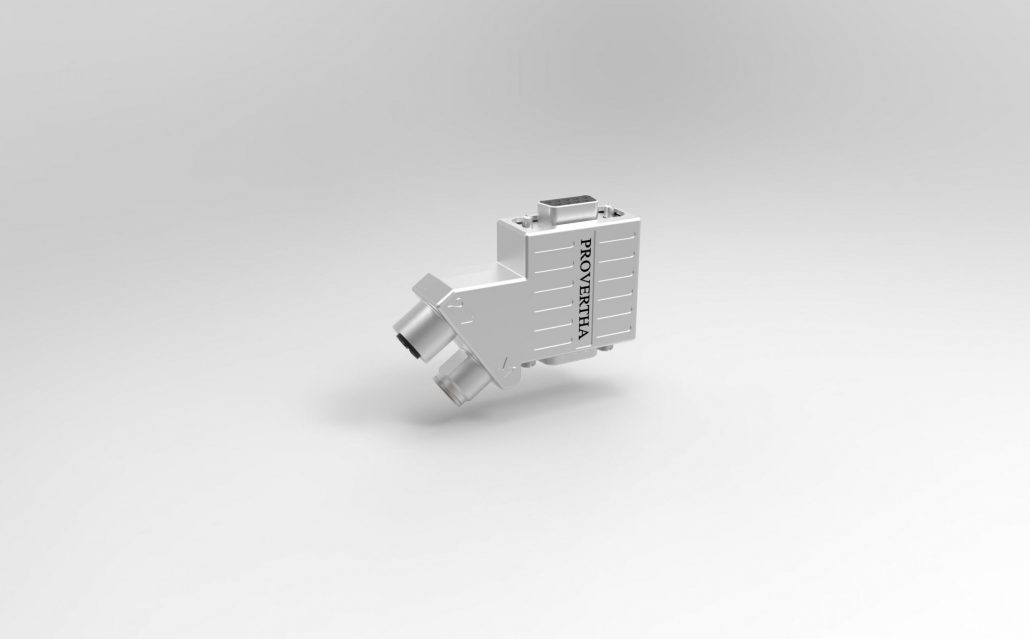

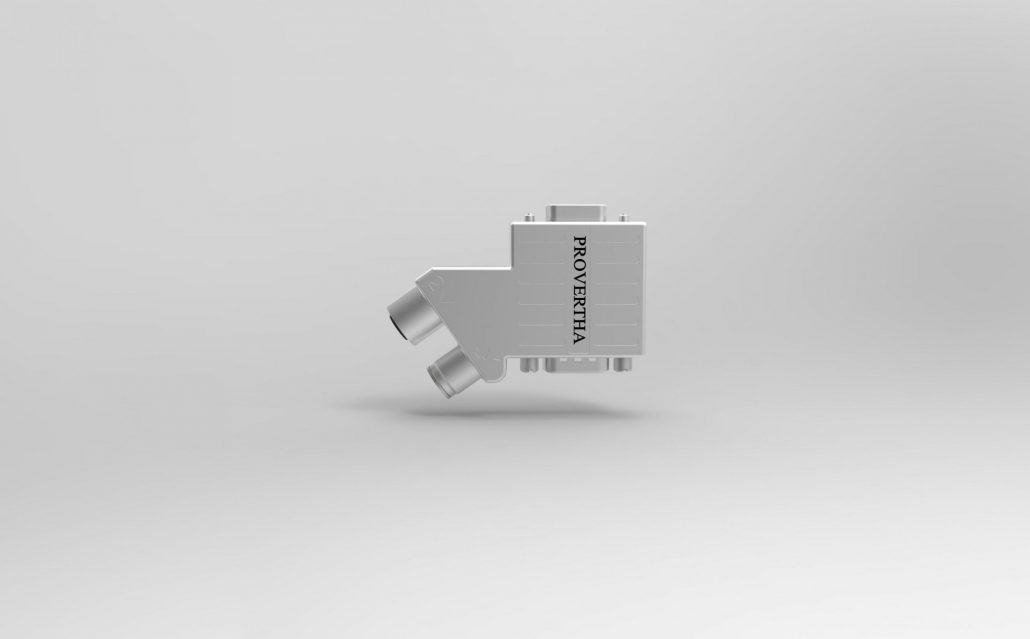

Bus Connector Special Plug&Play M12

Special CAN-Bus bus connector Plug & Play M12

Plug & Play M12 Compact CAN-Bus Bus connector lines
The very fast, easy and reliable connection and the error-free data transmission between two bus subscribers are ensured by Plug & Play bus connectors with two M12 plug connectors.
Failure safety is secured by 100 % tested bus connector lines. Easy plug-in at the CAN-Bus interfaces and the play of the CAN-Bus starts immediately.

Technical features

– For stacked interfaces

– Cable connection: 90° to D-Sub mating interface

– Effective 360° EMI/RFI shielding achieved by special fully closed metal hood and solid M12 connections

– Fault-free CAN-Bus connection achieved by M12 connectors

– Very quick, reliable and simple CAN-Bus connection within a few seconds

– Easy fault-free installation without special knowledge

– Entirely shielded zinc die-cast housing for EMC/RFI-proofness with special shielding geometry of the housing

– Solid switch lever can be operated externally to activate the bus termination

– Switch ON/OFF position colored and visible from front side

– Programming/diagnosis option with 2nd D-Sub

– Locking: Knurled screw UNC 4-40

– 100 % tested bus connector cables for high functional reliability



Technical Data

Data rate

1 Mbit/s

Bus interface

D-Sub 9-pin, socket

Mechanical lifetime

200 mating cycles

Temperature range

-20° C to + 70° C

Permitted humidity

Max. 75% at + 25° C, non-condensing

Protection class

IP 30

Housing material

Zn-alloy

D-Sub screw latch

UNC 4-40

Cable connection

Shielded M12 CAN Bus cable

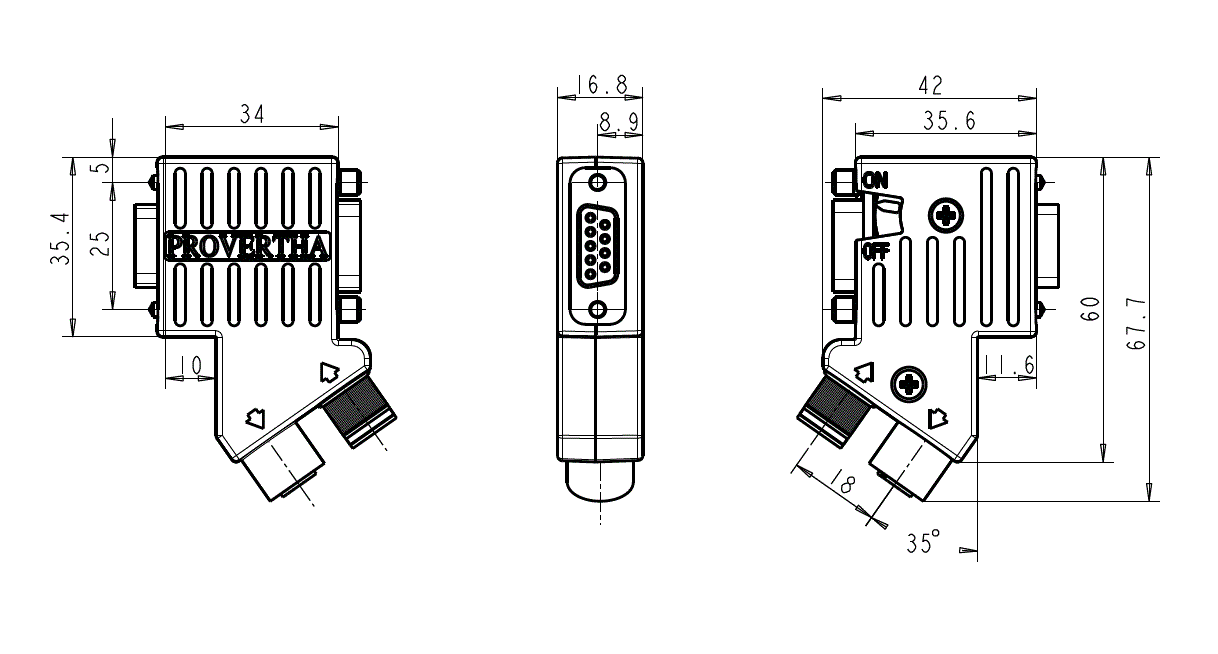

Dimensions
