37 Hood Plastic Flat Cable

incl. VAT zzgl. Versandkosten

S.55, Naming, Kategorie, 37

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

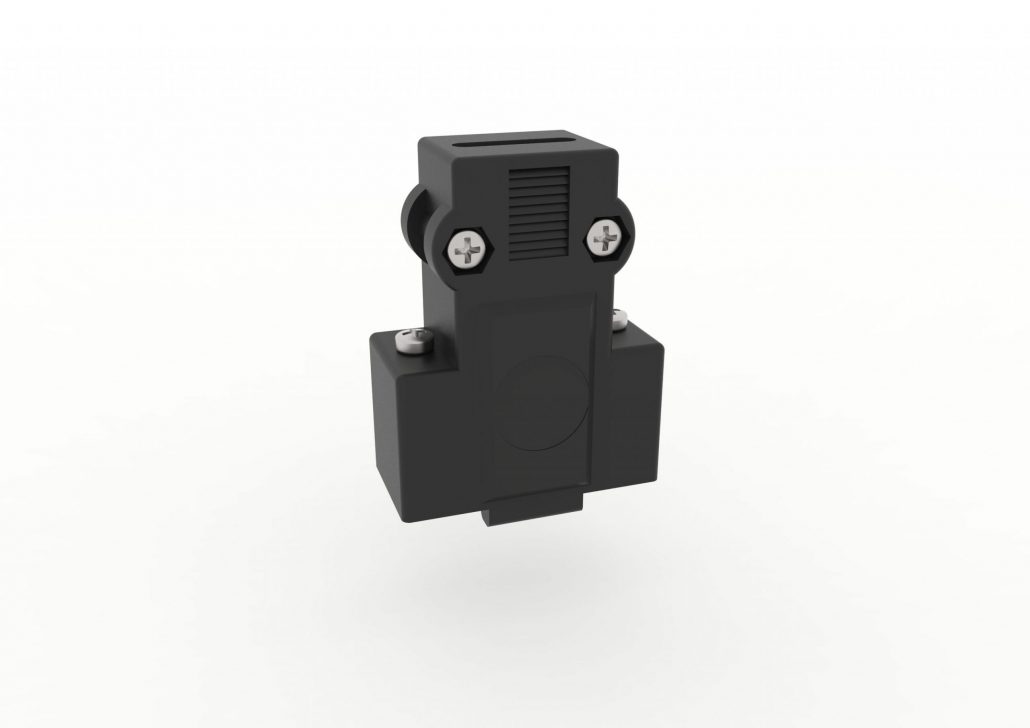

Flat ribbon cable hoods and grip caps (series 37)



  • 2-part plastic hood, integrated strain relief with UNC 4-40 latching screws
  • Grey ABS plastics, metallised version also available
  • Grip caps item no. 88 allows the use of solder plugs at flat ribbon cables, functional, compact design made of high-quality ABS plastics with mounting bolts

Technical Data

General

IP protection class:

IP 20

Cable diameter:

5─11 mm

Temperature range:

-20°C bis +90°C

Tightening torque (cable clamp screws):

max. 30 Ncm

Tightening torque (cover screws):

max. 20 Ncm

Material:

Hood:

ABS UL 94-V0

Colour:

Schwarz

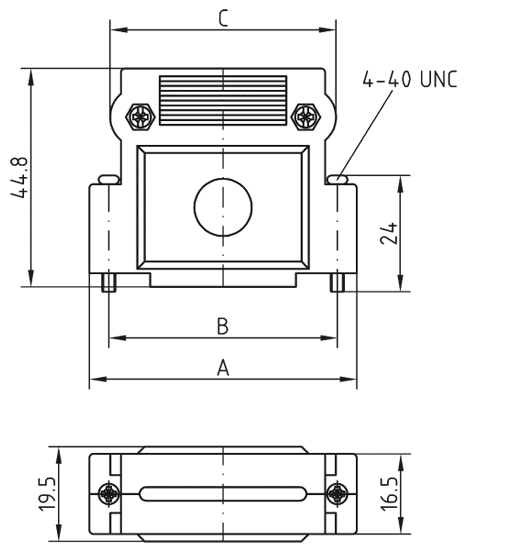

Dimensions

Abmessungen / Dimensions
Polzahl /
Pole Size		 09 15 25 37
A (mm) 33,2 41,0 54,8 71,3
B (mm) 25,0 33,3 47,0 63,5
C (mm) 24,6 32,7 47,6 62,8
