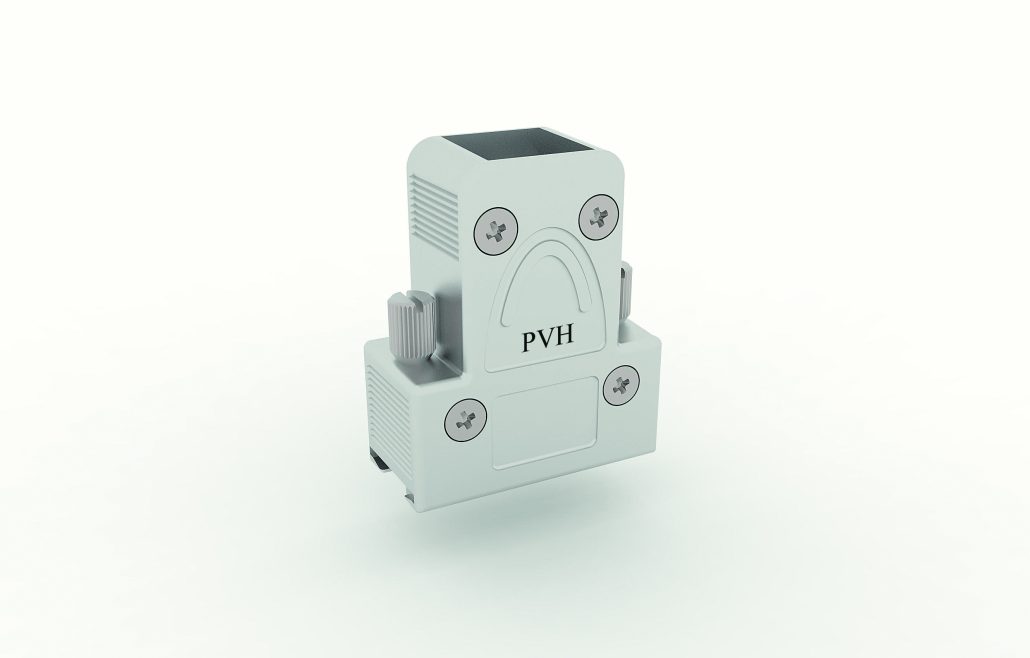

17 DC Hood Full Metal Straight Cable Output Screw Locking

incl. VAT zzgl. Versandkosten

S.104, Naming, Kategorie, 17DC 17 DC

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: Diecast Hoods
  • Description
  • Technical Data
  • Dimensions

Description

Diecast hoods

 with screw locking


  • Practical new design
  • Easy assembling by means for pre-tapped threads
  • Delivery ex stock
  • Extreme mechanical working stress
  • Side thumb screws with UNC 4-40 thread, M3 on request
  • Optimum RF shielded in conjunction with crimp flanges

Technical Data

General

IP protection class:

IP 20

Temperature range

-20°C to +90°C

Tightening torque:

max. 35 Ncm

Material

Housing:

Zinc alloy

Screws:

Steel



Dimensions



Abmessungen / Dimensions
Größe /
Size
1 2 3 4 5
Polzahl /
Pole Size
09 15 25 37 50
A (mm) 35,0 33,0 40,5 40,5 40,5
B (mm) 31,0 39,5 53,0 69,5 67,1
C (mm) 14,8 14,8 14,8 14,8 17,6
Kabel Ausgang /
Cable Output
180° 1 1 1 1 1
120° – – 2 2 2
