117DC-147DC Hood Full Metal Quickmont Straight Cable Outlet

incl. VAT zzgl. Versandkosten

S.108,109, Naming, Kategorie, 117, 147

SKU: N/A Category: Diecast Hoods
  • Description
  • Technical Data
  • Dimensions

Description

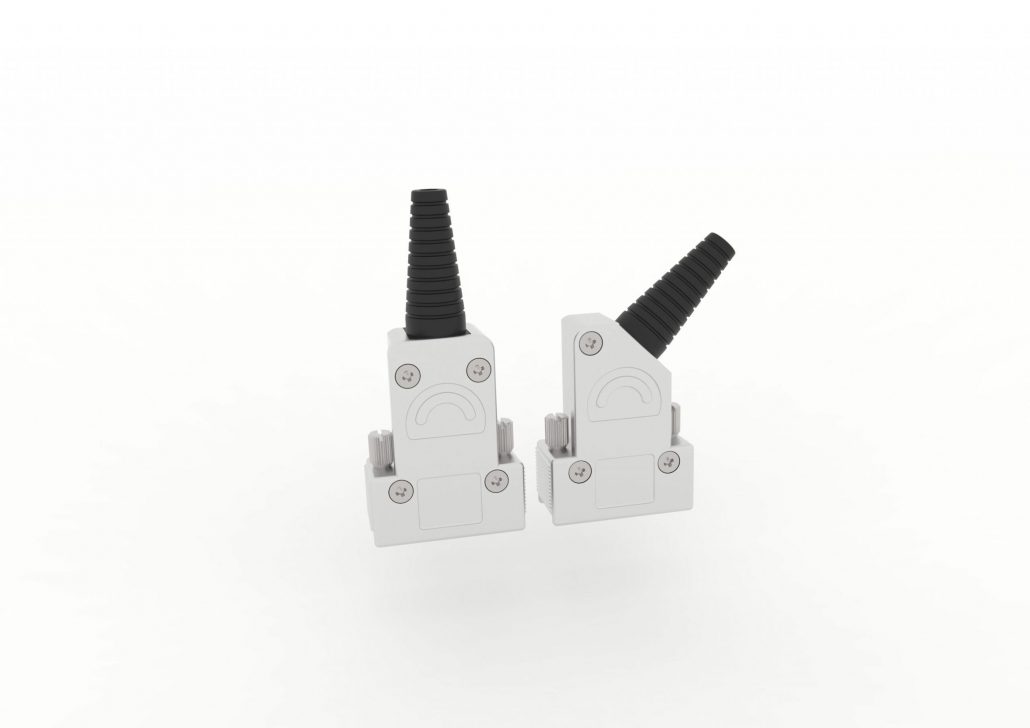

Full-metal hoods (series 117DC/147DC)

3 cable strain relief versions and screw lock

Technical Data

Cable diameter internal 9: 4-10 / 15-25: 4-12 / 37-50: 4-15
Cable diameter external         9 -25: 4 – 14 / 37-50: 4 – 16
Temperature range: -55 °C to + 90 °C

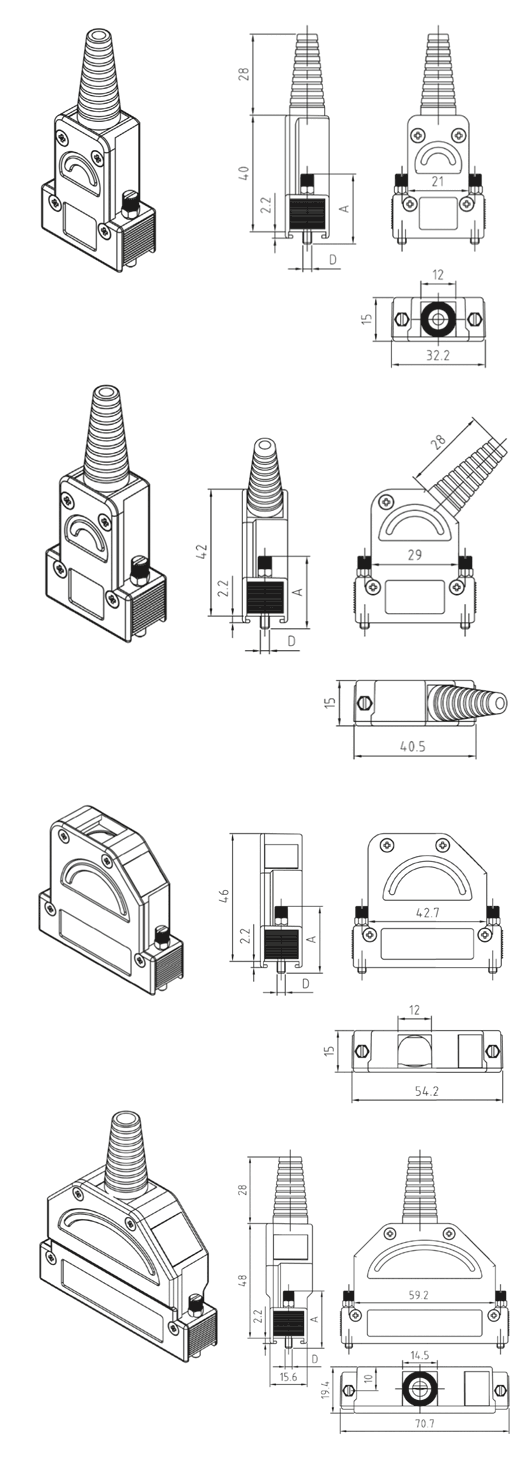

Dimensions

Abmessungen / Dimensions
Polzahl / Pole Size
09 (mm) 40 25 32,2
15 (mm) 42 28,5 46,5
