103 Hood Plastic Quick Lock

incl. VAT zzgl. Versandkosten

S.100, Naming, Kategorie, 103, 104

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: Plastic Hoods
  • Description
  • Technical Data
  • Dimensions

Description

Quick Lock Plastic Hood (series 103-104)

black

  • New, innovative locking system
  • Quick single hand action, secure latching, highest retention force
  • Quicker assembly than screw and slide locking system
  • Approved for automobiles
  • 2-3 cable inlets
  • Suitable for use with crimp flanges, internal and external cable clamps
  • Made in quality ABS plastic, flame resistant according to UL 94 V-0, metallised version also available

Technical Data

General

IP protection class

IP 20

Cable diameter:

5─11 mm

Temperature range:

-20°C bis +90°C

Tightening torque (cable clamp screws):

max. 30 Ncm

Tightening torque (cover screws):

max. 20 Ncm

Material:

Hood:

ABS UL 94-V0

Colour:

Black



Dimensions

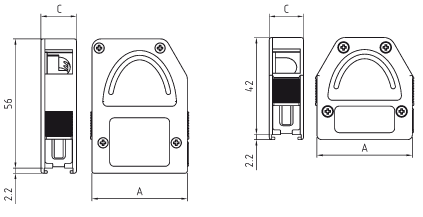

Abmessungen / Dimensions
Polzahl /
Pole Size
09 15 15** 25 37 50
Abmessungen
Dimensions, mm
A (mm) 34,2 42,5 42,5 56,2 72,7 70,3
C (mm) 15,4 15,4 15,4 15,4 15,4 18,4
Kunststoffhaube lange Version 103 180° 1,0 1 1 1 1 1
120° – 1 1 1 2 2
105° 1 – – – – –
Max. Kabeldurchmesser bei interner Kabelklemme
max. cable diameter, mm
9,0 10,0 – 11,0 11,0 12,0

15** – für 104155BT001 & 104155M001
(grösserer Innenraum ohne interne Kabelklemme, extended inner space without internal cable clamps)
