RF shielding cap

incl. VAT zzgl. Versandkosten

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: Accessories
  • Description
  • Technical Data
  • Dimensions

Description

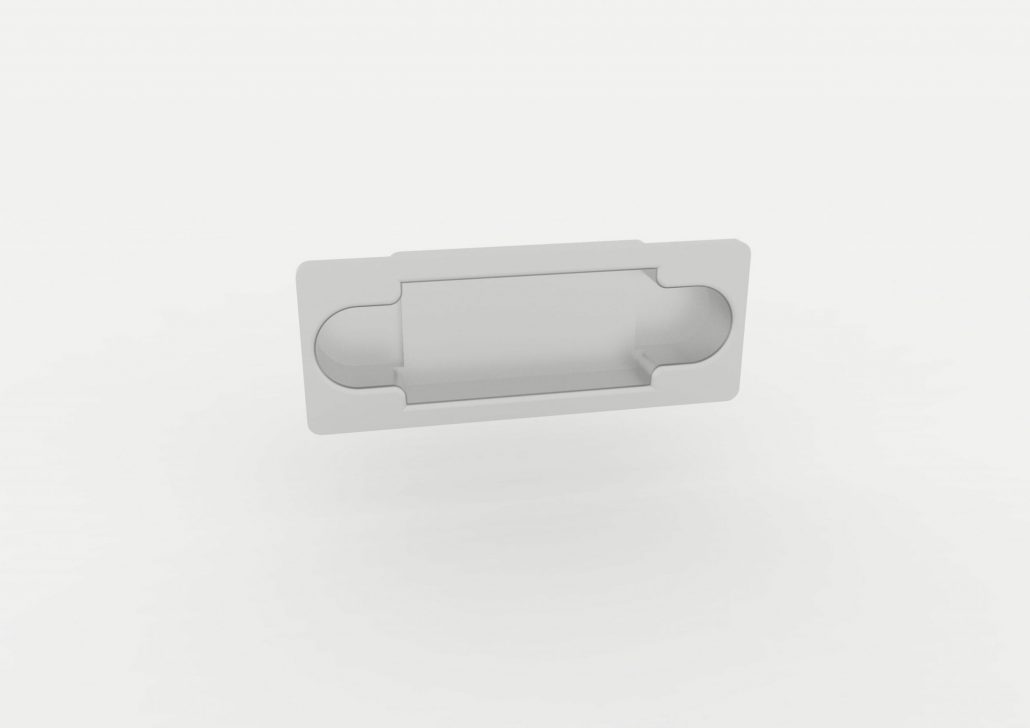

RF shielding cap

For D-Sub interfaces



  • Protection against RF-radiation for “open” interfaces
  • 50 µm electromagneical shielding coating
  • UL-listed plastic
  • Pole number: 9 / 15 / 25

Technical Data

Temperature range  – 35° C to + 85°C
Shielding attenuation 100 MHz 87 dB
Shielding attenuation 1000 MHz 52 dB
Material UL Thermoplast

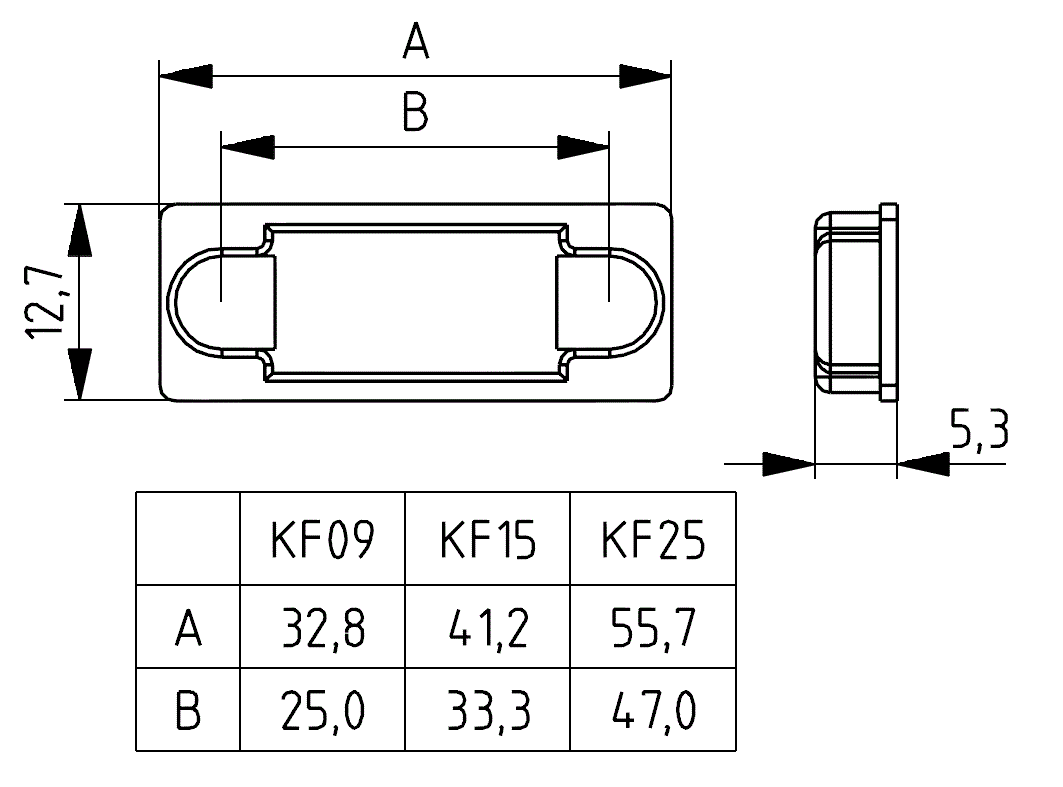

Dimensions

KF09-DS_01
