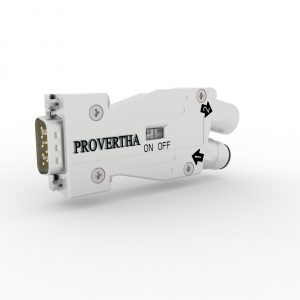

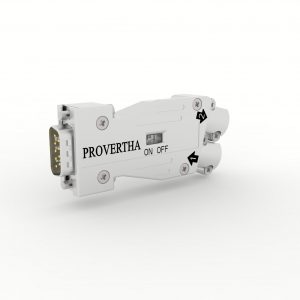

Profibus Special CR

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Technical Data

Data rate

12 Mbit/s

Bus interface

D-Sub 9-pin, pin

Mechanical lifetime

200 mating cycles

Temperature range

-20° C to + 70° C

Permitted humidity

Max. 75% at + 25° C, non-condensing

Protection class

IP 30

Housing material

Zn-alloy

D-Sub screw latch

UNC 4-40

Cable diameter

8 ±0,2 mm (other cables on request)

Wire termination

Cage clamp

Single wire cross-section

0.08-0.5 mm2 (AWG 26-AWG 20)
