Description

Bus Connectors Axial Plug&Play M12

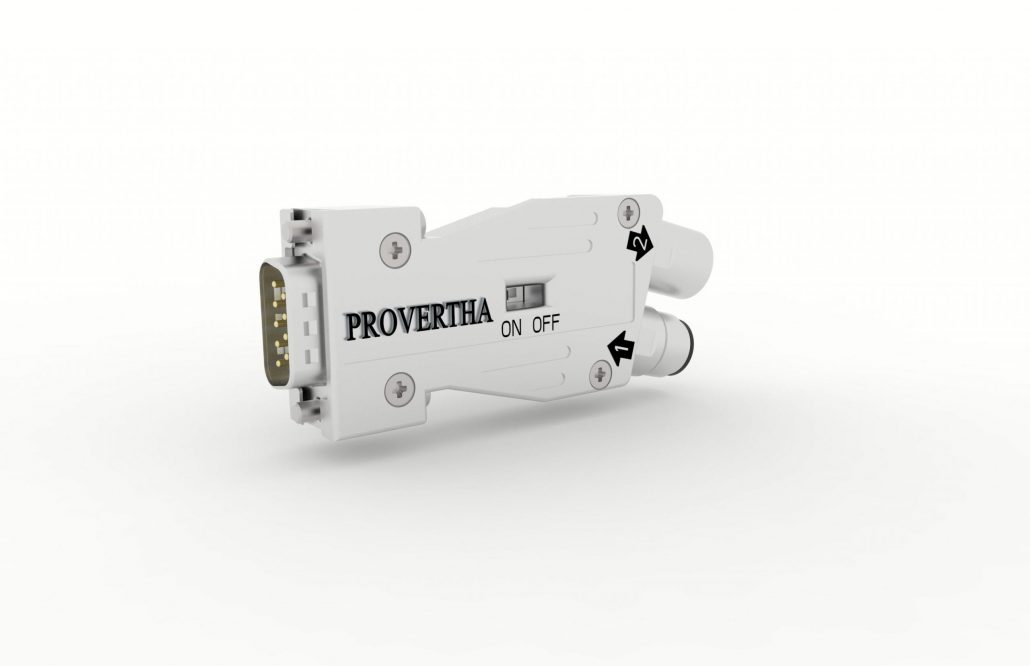

Axial PROFIBUS bus connectors Plug & Play M12

The simple and reliable connection and the faultless data transfer with plug & play bus connectors with two M12 connection interfaces. Bus connection with 100% tested bus connectors and ready-made M12 PROFIBUS cables. Easy plug-in of the new Provertha bus connector and plug-in of the M12 bus cables and the play of the PROFIBUS follows immediately.
The 180° cable outlet of the axial version allow the application in installation conditions with 2 stacked interfaces.

Technical features

– Cable connection:
180° to D-Sub mating interface

– Fault-free PROFIBUS connection achieved by M12 connectors with B-coding for the PROFIBUS cable connection

– Reliable quick and simple PROFIBUS connection within a few seconds

– Easy installation without special knowledge

– Entirely shielded zinc die-cast housing for EMC/RFI-proofness with special shielding geometry at the housing

– Switch can be operated externally to activate the bus termination (switch can be operated internally for EMC/RFI-proof solution)

– Node version: no switch function

– Programming/diagnosis option with 2nd D-Sub

– Locking: Knurled screw UNC 4-40

– 100% tested bus connectors for high functional reliability
