M12 A-8 Ethernet Panel mount crimp connectors

incl. VAT zzgl. Versandkosten

M12 A-8 Ethernet Panel mount crimp connectors

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: A-Code Connectors 8 pin
  • Description
  • Technical Data

Description

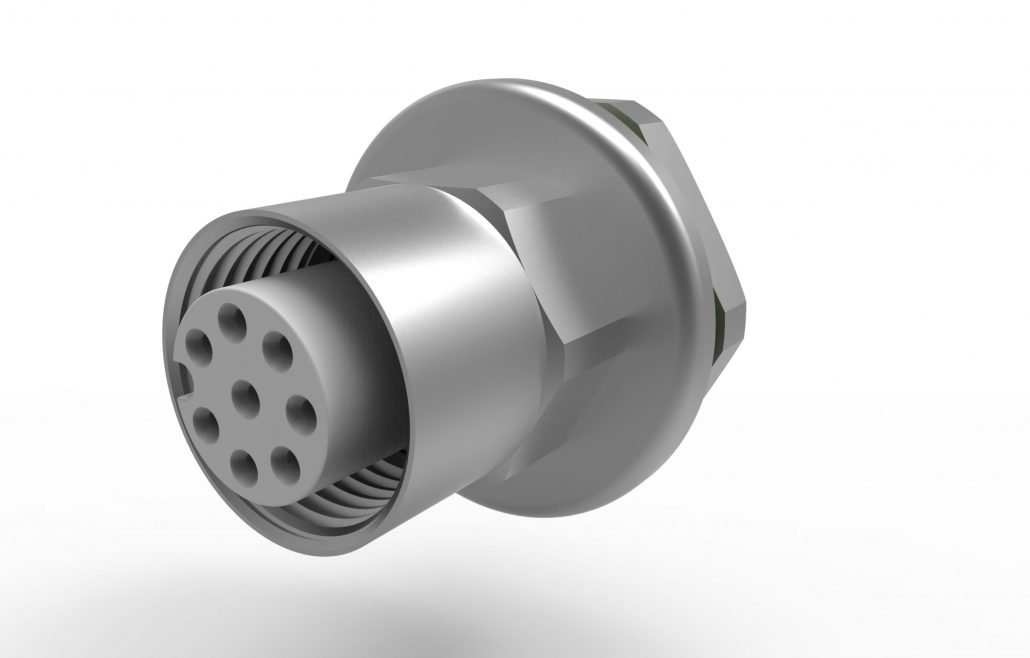

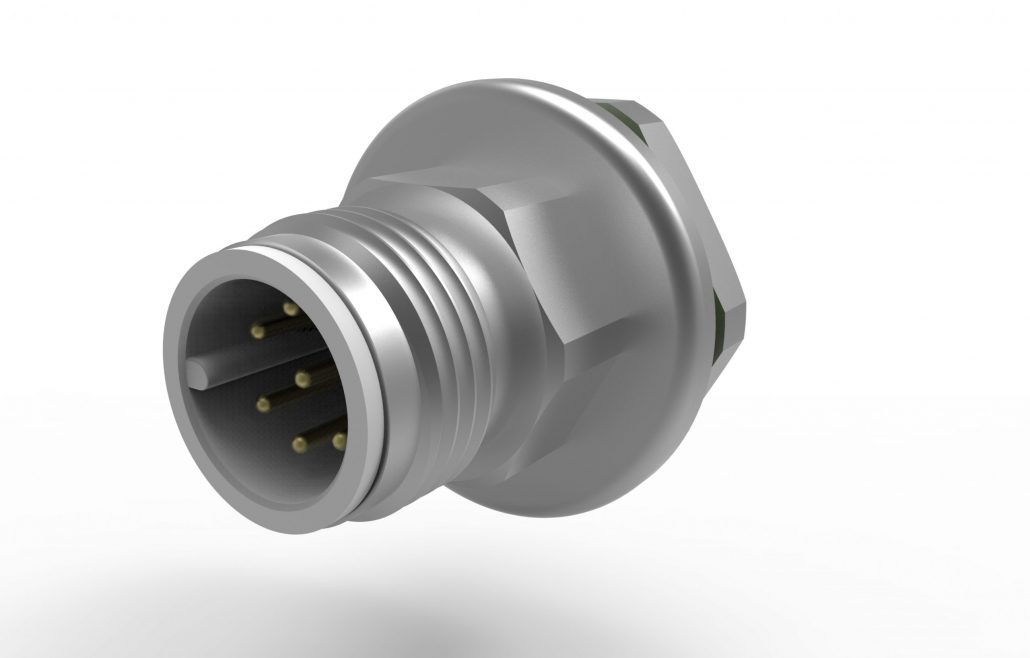

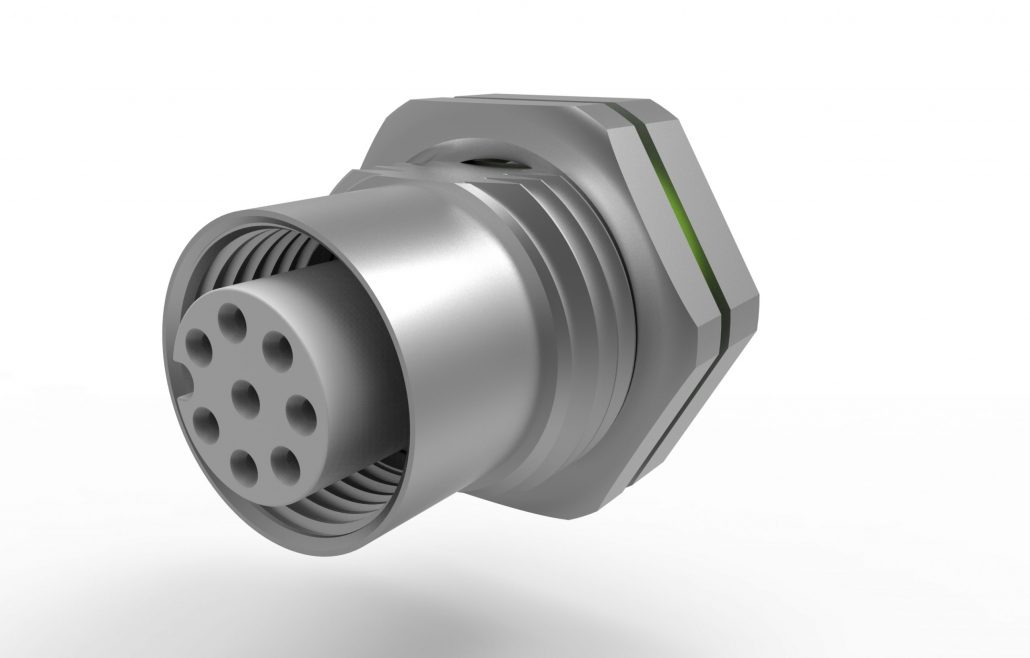

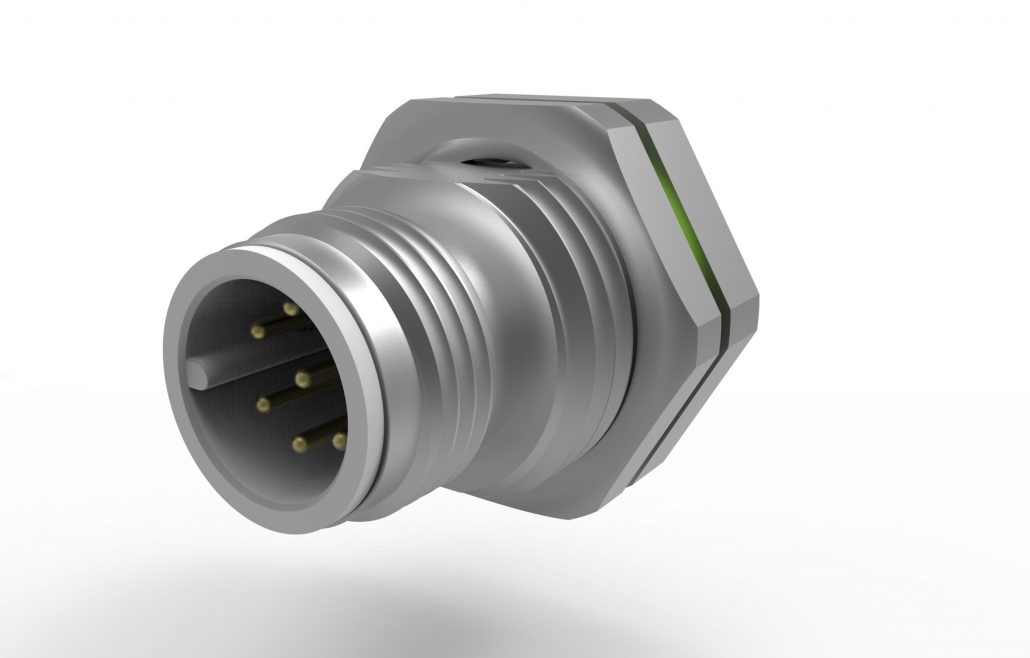

M12 A-8 Ethernet Panel mount crimp connectors

Custom made solutions offering choice for wire length



The 8-pole, A-coded M12 panel mount connectors fpr panel installations in protection class IP67 particularly fulfills the requirements for the reliable  connection and the interference-free data transmission. This is achieved through a safe signal contacting through twisted machined crimp contacts and the full-metal housing. This way, custom made device interface solutions can be implemented due to the free choice of the wire length.

Technical features

– Very compact outer dimensions

– Effective shielding due to full-metal housing

– Insulator with A-coding

– Machined crimp contacts for a safe contact

– Crimp contacts:  i.e. signal: AWG 26-28 /Power: AWG 22-24

– Easy and fast installation due to crimp snap-in contacts and pre-mounted assembly with a few single parts

– Fault-free wire-termination due to contact holder with coding

Technical Data

Technische Daten/Technical data



Steckverbinder

M12 gemäß/acc. to IEC 61076-2-101

Codierungs-Polzahl/Coding pin number

A-8

Kontaktzahl/Number of contacts

8

Strombelastbarkeit/Current rating

2 A

Bemessungsspannung/Nominal voltage

30 V AC

Durchgangswiderstand/Contact resistance

≤ 5 mΩ

Isolationswiderstand/Insulation resistance

≥ 100 MΩ

Anschlussart Einzelader/Termination single wire

Gedrehte Crimp snap-in Kontakte/

Machined crimp snap-in contacts

Aderquerschnitt/Wire size

0,08-0,14 mm2 (AWG 26-28)/0,25–0,34 mm2 (AWG 22-24)

Schutzart /IP protection

IP 67 (nur schraubverriegelt/only screw-locked)

Temperaturbereich/Temperature range

-40 bis/to +85°C

Mechanische Lebensdauer/Mechanical lifetime

≥ 200 Steckzyklen/mating cycles

Schock und Vibrationssicherheit/

Shock and vibration proofness

DIN EN 61373 Kategorie 1, Klasse B/

DIN EN 61373 Category 1, class B

Materialien/Materials



Gehäuse/Housing

Cu-Legierung vernickelt/Cu alloy Ni plated

Isolierkorper +Kontakthalter/

Insulator + contact holder

Thermoplast

I2/F2 gemäß NFF-16-101/102 und HL3 gemäß R22/R23 EN 45545-2

I2/F2 according to NFF-16-101/102 and

HL3 according to R22/R23 EN 45545-2

Material/Material

Cu-Legierung/Cu alloy

Oberflache/Plating

Ni/Au

Dichtungen/Sealings

Elastomer

Gewinde Wandbefestigung/Panel mount thread

M16 x 1,5

Gehäuse Außen-6kt/Wrench size housing

SW 19/AF 19

Außenabmessungen/Outer dimensions in mm

Ø21 x 21
