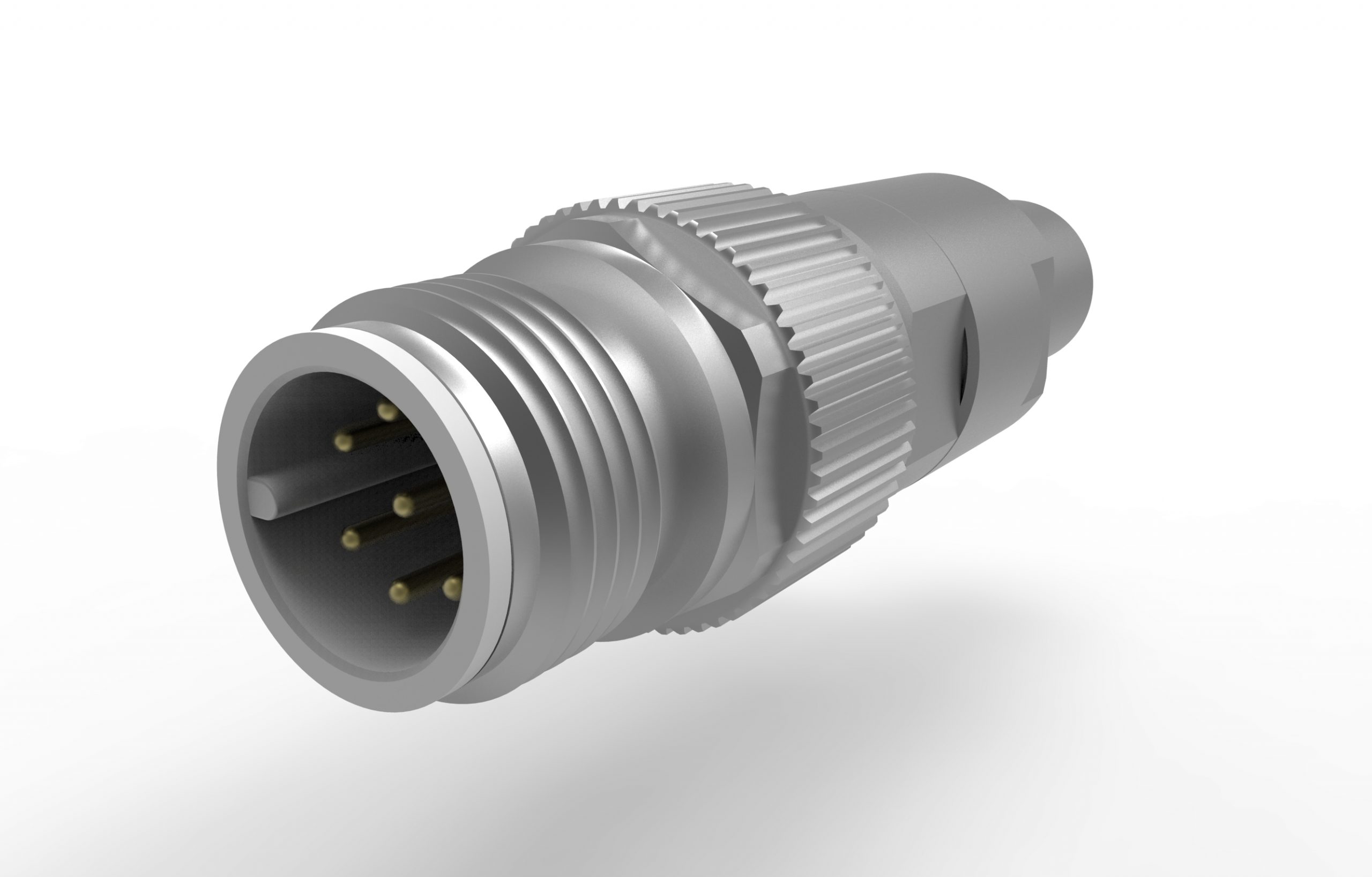

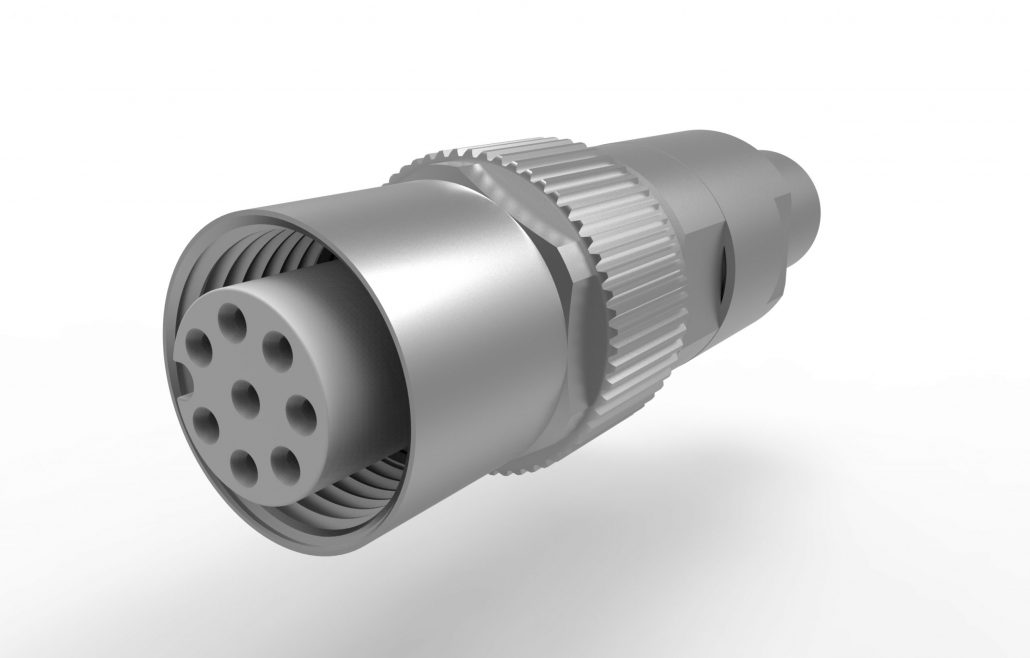

M12 A-8 Connector crimp flange

incl. VAT zzgl. Versandkosten

M12 A-8 Connector crimp flange

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: A-Code Connectors 8 pin
  • Description
  • Technical Data

Description

M12 A-8 Ethernet connector crimp flange

360° Shielding and vibration-/torsion-proof



Technical Data

Connector

M12 acc. to IEC 61076-2-101, IP 67 (only screw-latched)

Coding pin-number

A, 8-pin

Nominal voltage/ current

30 V / 2 A

Connection type stranded single wire

Machined crimp snap-in contacts

Temperature range

–40° C to +85° C

Shock and vibration proofness

DIN EN 61373 category 1, class B

Housing

Nickel-plated

Insulator +contact retainer

Thermoplast, HL3 acc. to R22/R23 EN 45545-2

Connection

Cu-alloy, surface Ni/Au, ≥ 200 mating cycles
