Hexagonal screws

incl. VAT zzgl. Versandkosten

K.11; S. 85

Gesamte Länge

Schlüsselweite (SW)

Innengewinde

Aussengewinde

Clear

SKU: 53xxSxxT Category: Accessories

Description

Hexagonal screws for housing installation

External/internal threads editions: UNC 4-40/ UNC 4-40, UNC 4-40/M3, M3/UNC 4-40, M3/M3
Spanner gap: SW 4,5
Head height: 5 mm
Screw lengths from 10 mm to 22 mm

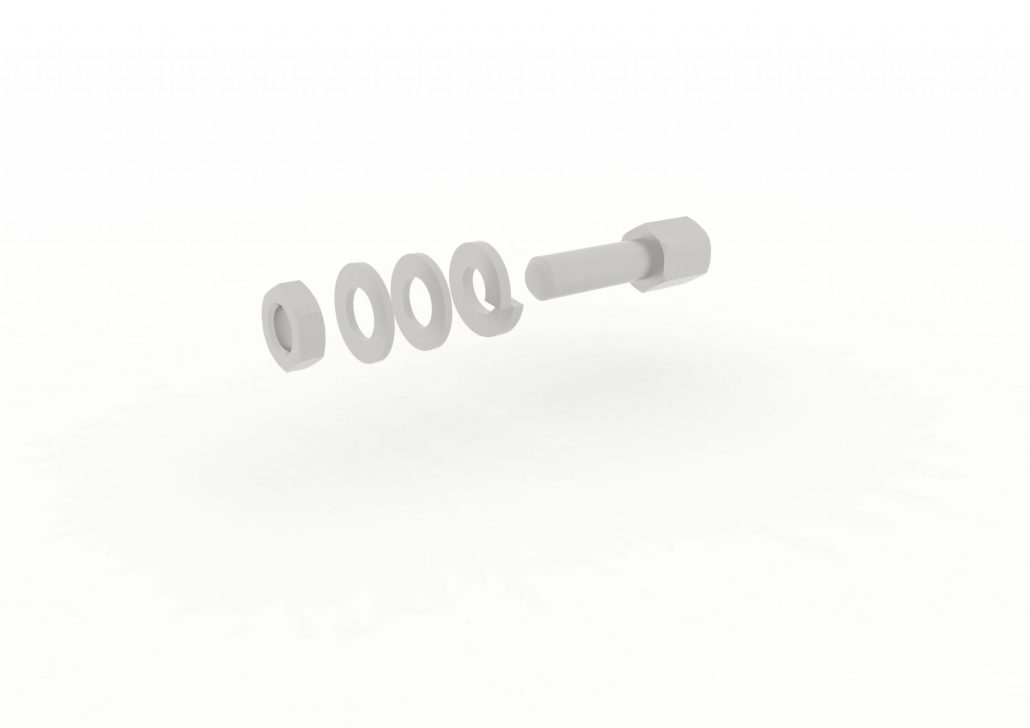

Packed as a set or as Bulk material with screw, disc, spring washer and nut

Technical Data

Art. Nr.

Art. No.

Abmessungen, mm

Dimensions, mm

	SW	L	Di	Da
5385S43T	4,5	8,5	4-40 UNC	M3
5395S33T	4,5	9,5	M3	M3
5395S34T	4,5	9,5	M3	4-40 UNC
5395S43T	4,5	9,5	4-40 UNC	M3
5395S44T	4,5	9,5	4-40 UNC	4-40 UNC
5311S44T	4,5	11,0	4-40 UNC	4-40 UNC
5313S33T	4,5	13,2	M3	M3
5313S34T	4,5	13,2	M3	4-40 UNC
5313S34T	4,5	13,2	4-40 UNC	M3
5313S44T	4,5	13,2	4-40 UNC	4-40 UNC
5395S533T	5,0	9,5	M3	M3
5395S543T	5,0	9,5	4-40 UNC	M3

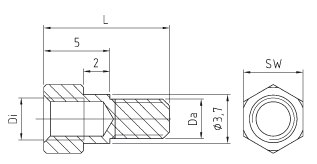

Dimensions
