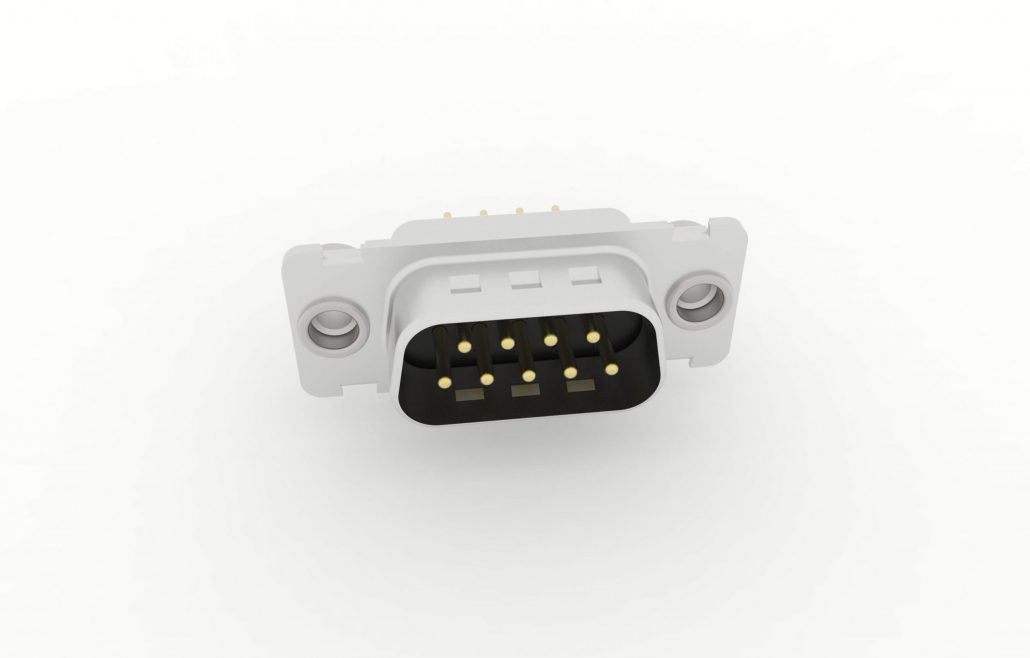

D-Sub Filter Connectors Soldered Straight With UNC 4-40 Thread

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Technical Data

Technical specifications

Size

9, 15, 25, 37, 50

Nominal temperature

-25° C — + 85° C

Rated voltage

100 VDC (variation No. 01 (2000 pF) = 50 VDC)

Test voltage

200 VDC (variation No. 01 (2000 pF) = 125 VDC)

Rated current

5 A DC max.

Insulation resistance

1 GΩ min. @ 25° C

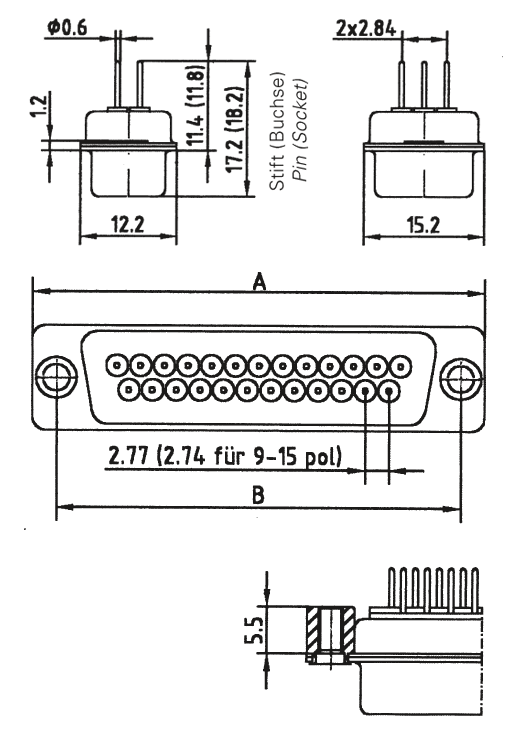

Dimensions

Abmessungen / Dimensions
Polzahl / Polesize 15 25 37 50
A (mm) 30,6 39,0 52,8 69,2 66,6
B (mm) 25,0 33,3 47,0 63,5 61,1
