D-Sub Connectors Standard Wire Wrap

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

Wire Wrap connection

with machined contacts



  • High precision machined copper alloy contacts
  • Fully gold-plated over Ni
  • Best quality and long lifetime due to specified contact area

Technical Data

Electrical and mechanical values
Current rating machined contacts: 7 A/stamped contacts:5 A (see Derating Diagram)
Test voltage 1 KV/AC
Creepage/Clearance ≥ 1 mm acc. to VDE 0110
Contact resistance ≤ 10 m Ω
Insulation resistance ≥ 10 G Ω
Mating and unmating force per socket contact 0,3-0,7 N
Temperature range -55° C bis +125° C
Mating cycles 1 = 500 Mating cycles
2 = 200 Mating cycles
3 = 50 Mating cycles
Materials
Insulator Thermoplast UL 94-V0
Contacts Ms- and Cu alloy
Contact plating Gold-plated over Ni base layer or selective gold plated (depends on version)
Housing Steel tin-plated



Dimensions

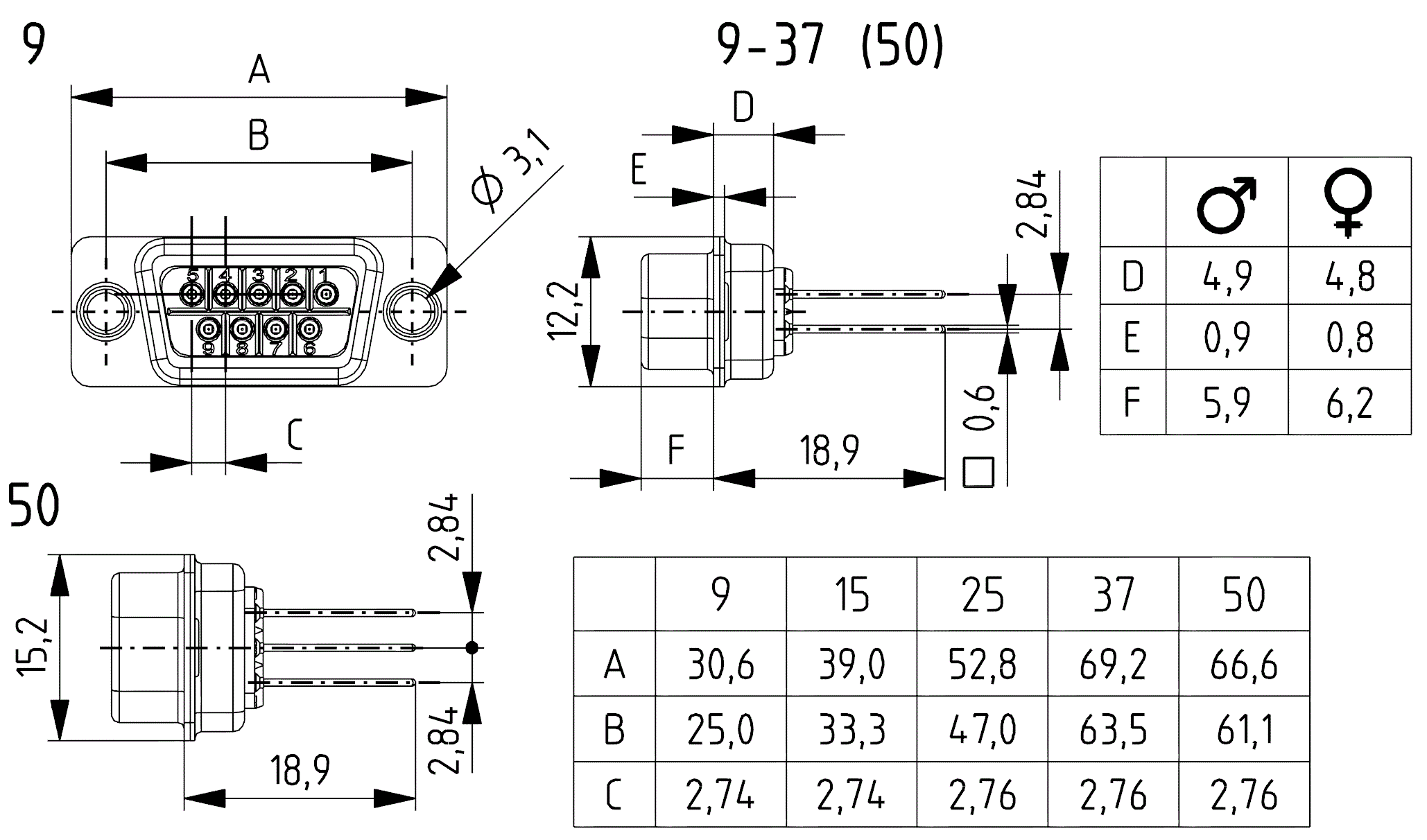

SDT0955G1+ST0965G1-DS_01
