D-Sub Connectors High Density Crimp

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

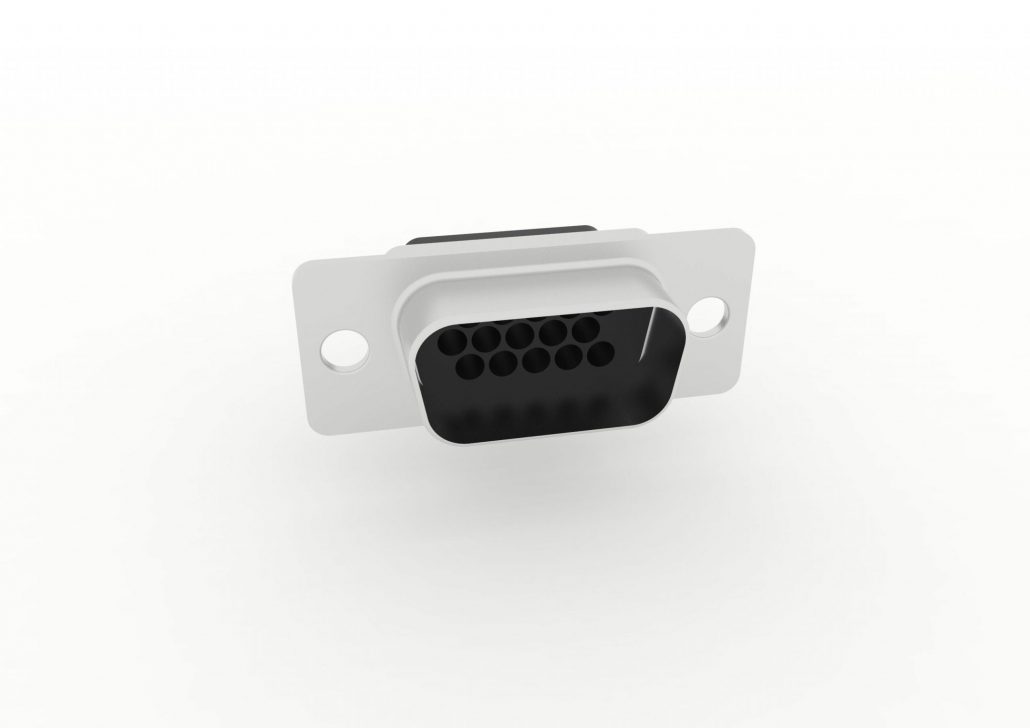

High Density Crimp Connectors

  •    Stamped or turned crimp contacts usable
  •    Insulator material flame-resistant acc. to UL 94 V-0
  •    Various quality classes for different mating cycle requirements

Technical Data

Technische Daten/Technical Data

Strombelastbarkeit in A (DC) bei 20° C Current rating in A (DC) at 20° C VDE: 3,5A; CSA: 2,5 A; UL: 3A
Betriebsspannung/Working Voltage               60 V
Prüfspannung U eff in V/                  Test voltage U eff in V               1000
Luft- und Kriechstrecke in mm/            Air and creepage distance in mm                min. 0,6
Durchgangswiederstand in mW/ Resistance in mW                 < 10
Isolationswiederstand in GW/      Isolation resistance in GW                 > 10
Temperaturbereich in °C/      Temperature range in °C           -55 … +125

Gesamt-Steck-/Ziehkraft in N / Mating/unmating force fully loaded connector in N

15 pin                < 50
26 pin                < 84
44 pin                < 120
62 pin                < 170
78 pin                < 200

Same materials as for standard D-Sub connectors

Dimensions

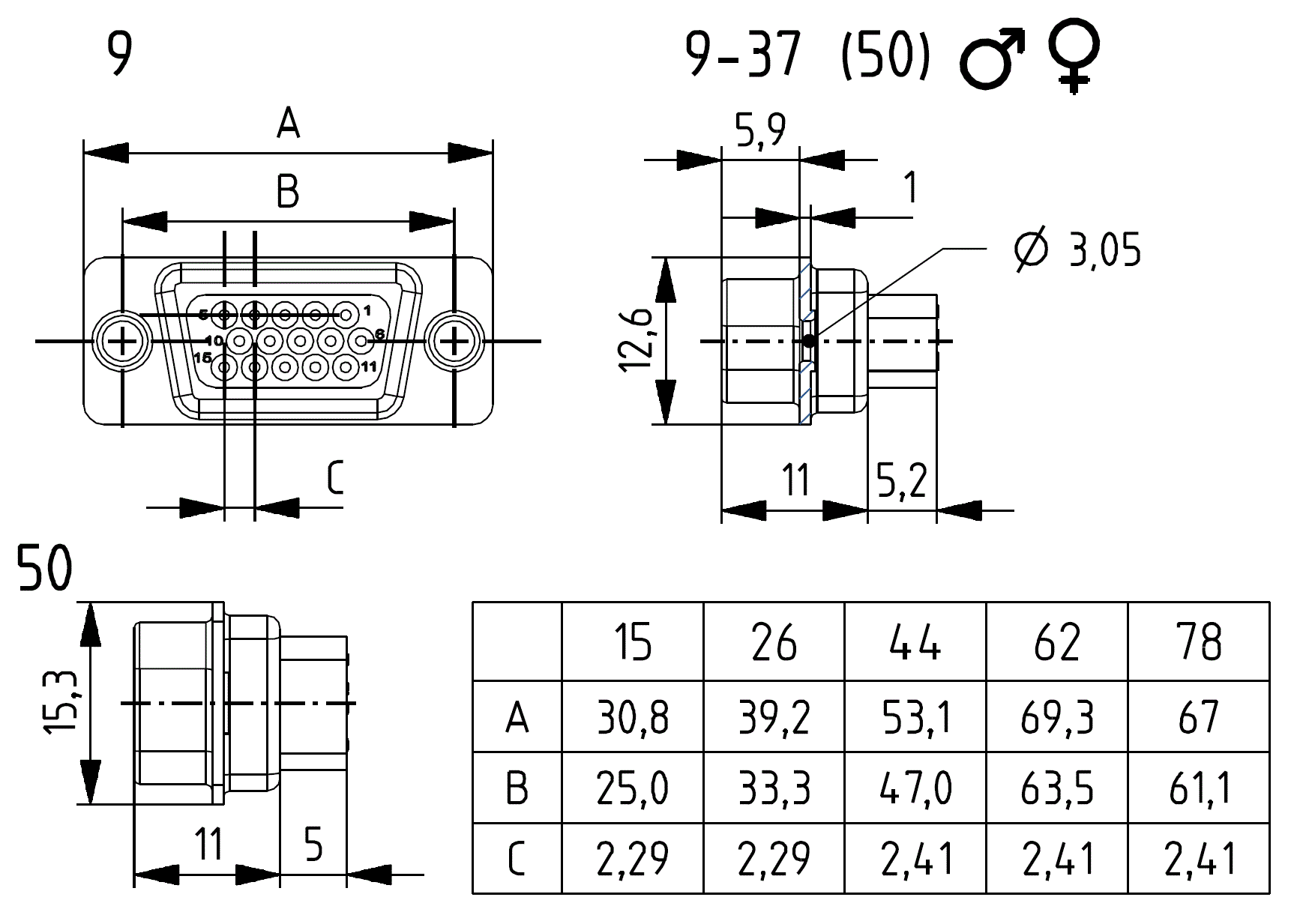

CHDT15P+CHT15S-DS_02
