Description
CAN bus M12 Receptacle Connectors
The CAN bus M12 receptacle connectors are the right solution for CAN bus M12 interfaces of devices and sub-assemblies. For easy handling on the pcb and an economical wave solder process versions with customized Wireclip on the wire end are available upon request . The Wireclip has a locking clip which allows the easy and safe snap-in locking with the wires already arranged in the requested pitch.
Technical features
- Solid full metal housing
- Mating force will be fully absorbed by the metal housing
- M12 A coding for CAN bus
- Male and female versions

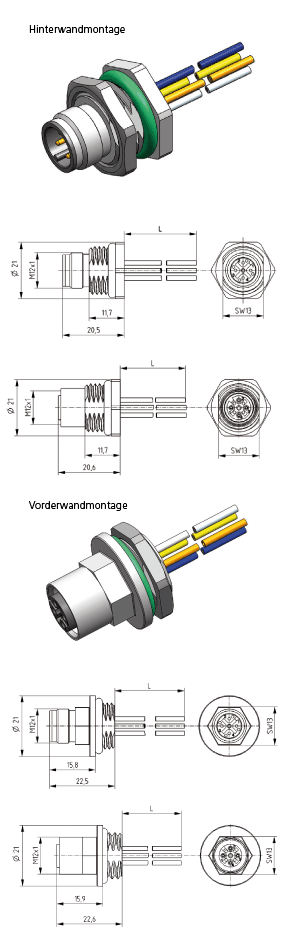

- Front mounting and rear mounting versions
- Housing with flange chamfer for positive and orientated panel mounting
- Panel thickness: max. 4 mm
- Wire length: 500 mm ( other lengths upon request)
- Versions with Wireclip at the wire end for easy pcb handling and wave solder process
upon request
